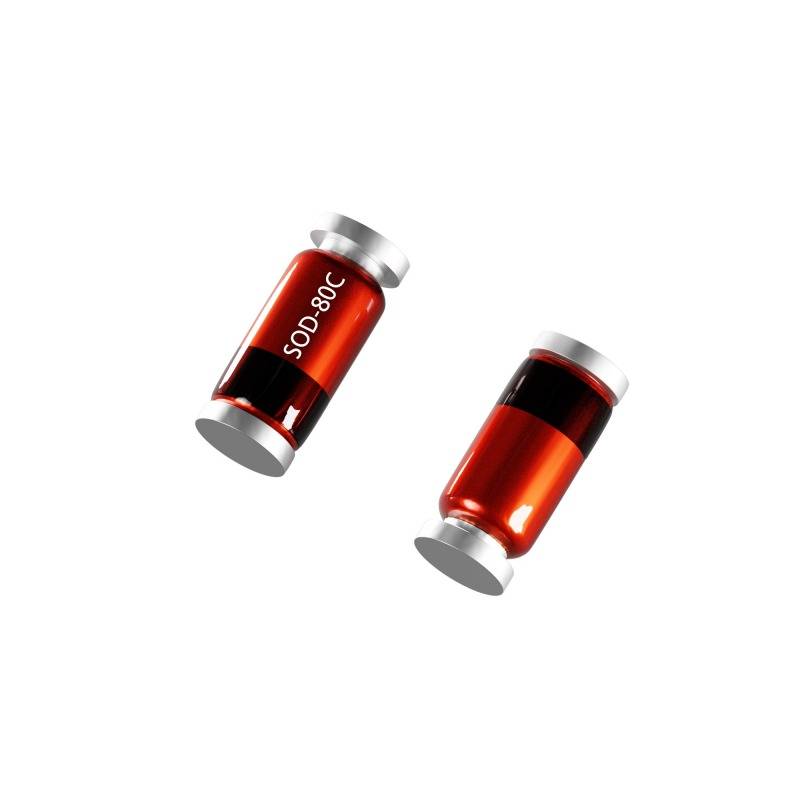

Image similar
Image similar
Diotec Zener diode ZMM47B Enclosure type (semiconductors) SOD 80 Zener voltage 47 V Power (max) P(TOT) 0.5 W Reverse vol
Part number:
Item no:
Z voltage U(Z)
47 V
Power (max) P(TOT)
0.5 W
Enclosure
SOD 80
Mounting type
Surface-mount
Reverse voltage U(R)
36 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
750
-
€ 0.03224
2250
9% = € 0.00
€ 0.02930
3750
13% = € 0.00
€ 0.02813
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 750
Total (€ 0.03224 / piece)
€
Technical specifications
- Type SMDSOD 80 housingZener voltage - Vzmin 46.00 VVZnom 47.00 VVzmax 48.00 VIze test 5.00 mAPower loss - Ptot 0,500 W.Junction temperature - Tjmax 175 °CReverse current - IR 0,100 µAVR 36 VInherent differential resistance - rzj: 110.0 ΩLock layer capacity - CJ: PFVR V
- Type
ZMM47B
- Manufacturer
Diotec
- Z voltage U(Z)
47 V
- Power (max) P(TOT)
0.5 W
- Operating temperature (max.)
175 °C
- Uz (max.)
48 V
- Uz(min.)
46 V
- Enclosure
SOD 80
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Reverse leakage current I(r)
0.100 µA
- Reverse voltage U(R)
36 V
- Product type
Zener diode
Documents & Downloads
Datasheet
Datasheet 2811555 Diotec Zener diode ZMM47B Enclosure type (semiconductors) SOD 80 Zener voltage 47 V Power (max) P(TOT) 0.5 W Reverse vol
