Dockcase USB-C® docking station DPR71S-EB Compatible with (brand): Universal Built-in display, Charging function, USB-C®
EAN:
Part number:
Item no:
Number
Total (€ 73.94 / piece)
€ 73.94
plus VAT.
Highlights & Details
Dockcase DPR71S-EB USB-C® docking station
- Connection A (or inputs): USB-C®

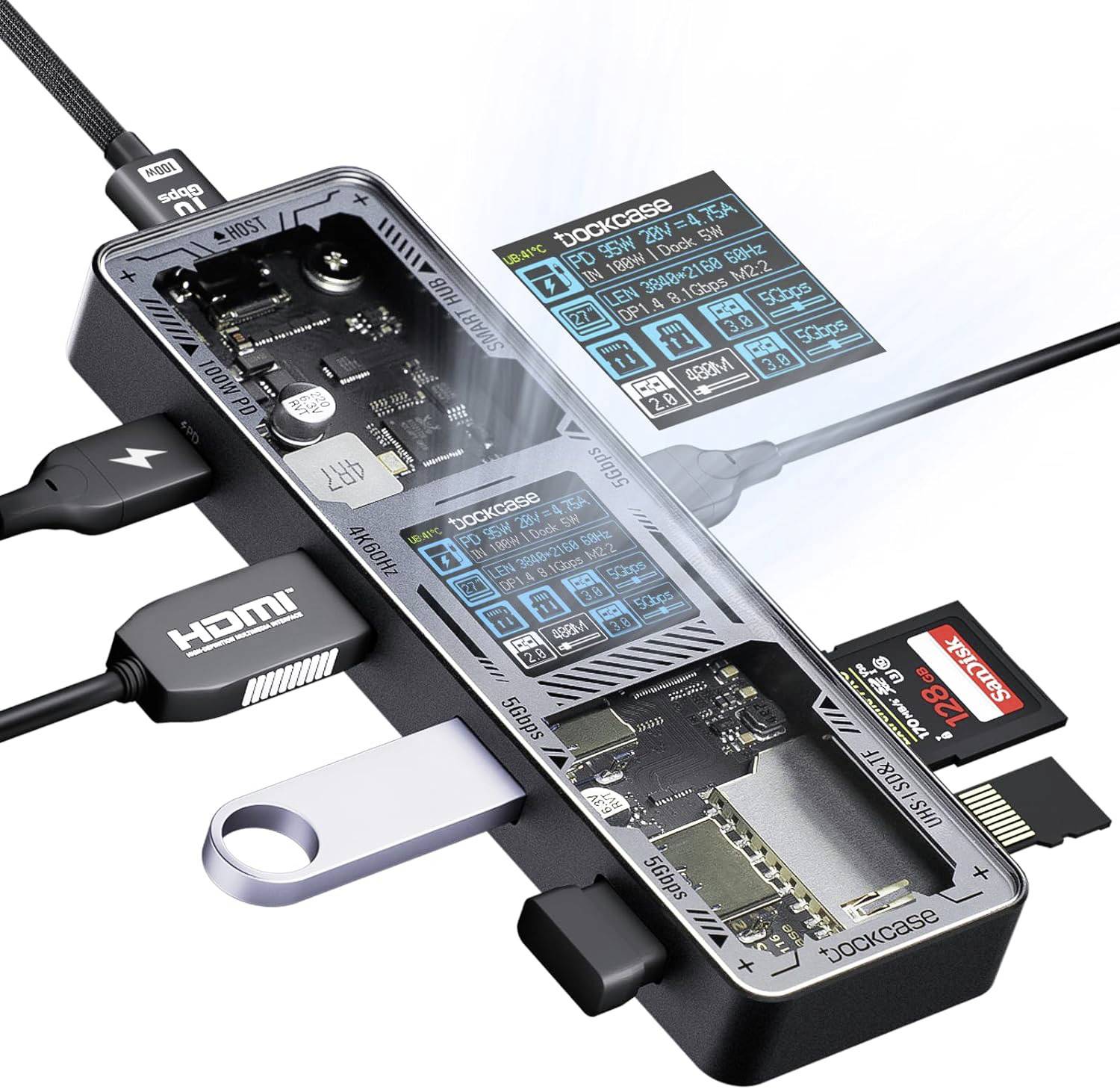

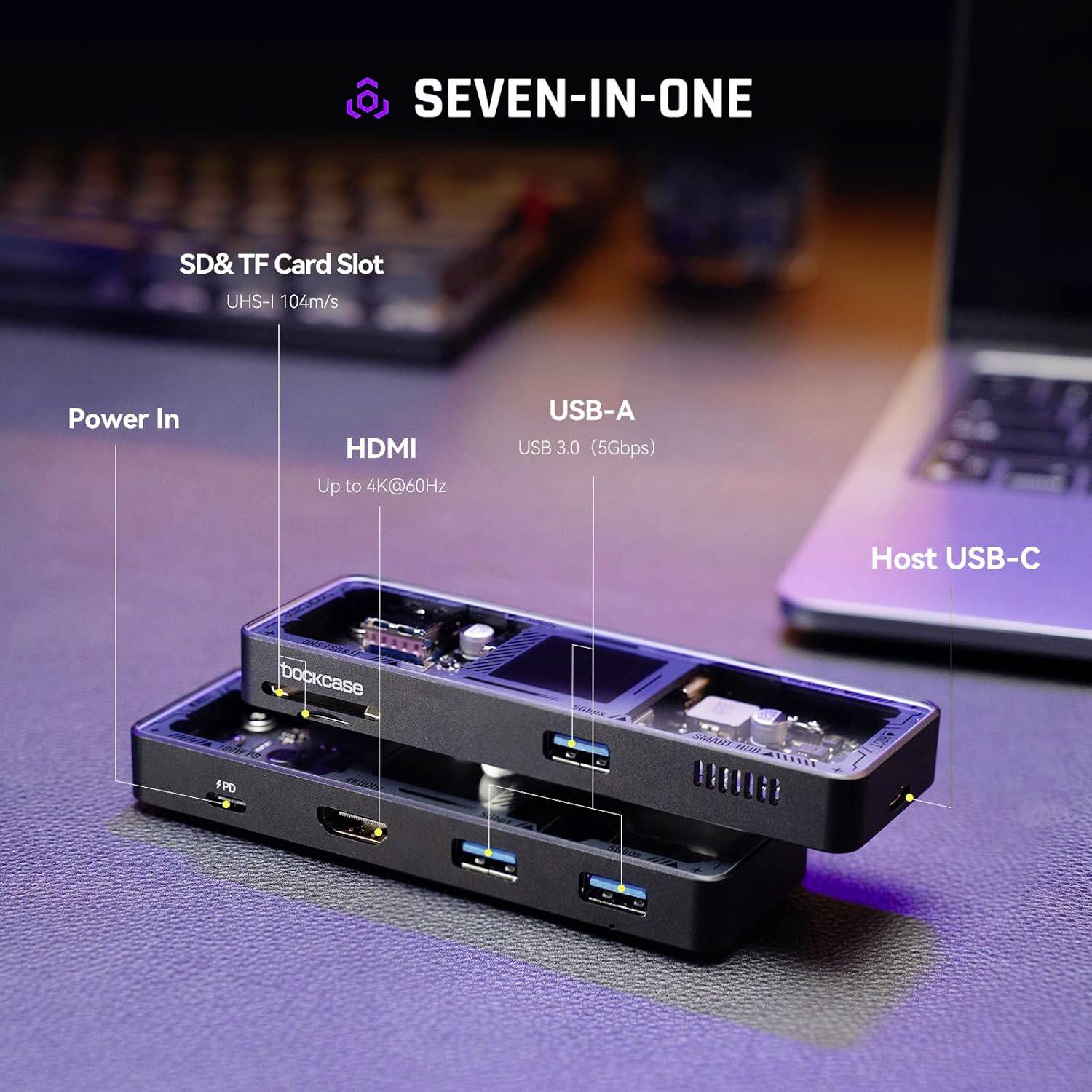

- Connecton B (or outputs): USB-C® socket (Power Delivery), USB-C® 10 Gbps, USB-A, HDMI®, SD Card slot, Micro SD card slot
- No. of supported monitors: 1
- Maximum resolution: 3840 x 2160 p
- Key features: Built-in display, Charging function, USB-C® powered, Built-in card reader
Technical specifications
- Product type
USB-C® docking station
- Type A
USB-C®
- Type B
USB-C® socket (Power Delivery)
USB-C® 10 Gbps
USB-A
HDMI®
SD Card slot
Micro SD card slot
- Interfaces
3x USB 3.2 1st Gen (USB 3.0)
1x USB-C®
1x USB-C® (Power Delivery)
1x HDMI
SD slot
micro-SD slot
- Suitable for
Notebook
- Supported monitors
1
- Resolution (max.)
3840 x 2160 p
- Cable length
30 cm
- Factory colour
Black
- Features
Built-in display
Charging function
USB-C® powered
Built-in card reader
- Width
121.7 mm
- Height
40 mm
- Depth
15.5 mm
- Weight
91 g
- Dim
(W x H x D) 121.7 x 40 x 15.5 mm
- Compatible with (brand)
Universal
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3135074 Dockcase USB-C® docking station DPR71S-EB Compatible with (brand): Universal Built-in display, Charging function, USB-C®
Description
Dockcase Explorer Edition: The 7-in-1 Smart USB-C® hub combines functionality and style perfectly. The Dockcase stands out from the competition with its slim design. Its versatile interfaces are tailored to your daily needs. At the same time, the HD display and the D-Key function control provide a personalized user experience, with which you can easily manage even the most demanding tasks. Whether at work or during leisure, the Dockcase enhances your performance and is thus the ideal supplement for your setup.

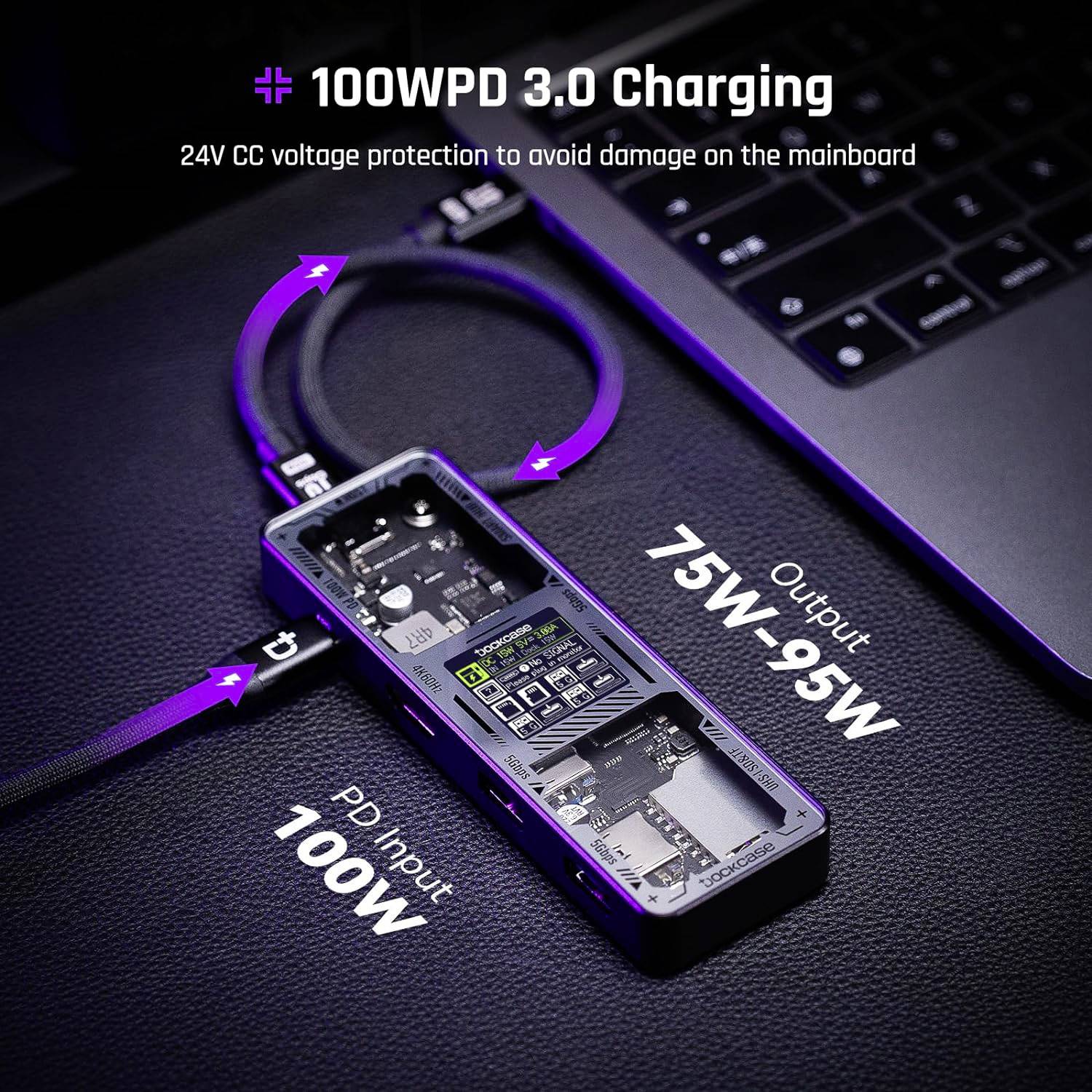

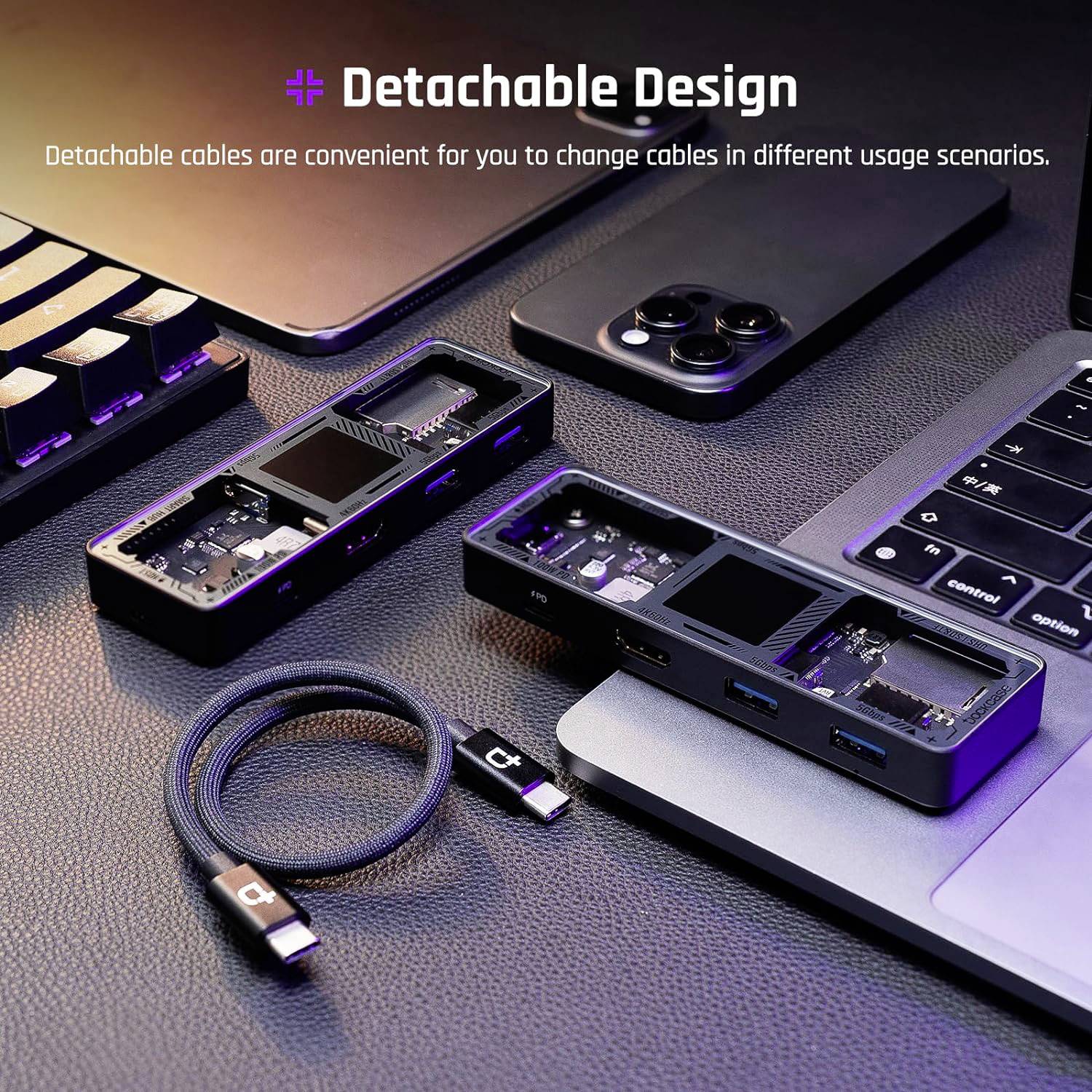

Massive expansion & smart design: Get more out of the full-featured USB-C® port on your device, with HDMI 2.0, Micro SD&SD card connectivity, 3 USB-A data ports, and high-speed transit charging with 100 W Power delivery. Detachable design, the length of the cable can be freely adjusted, in order to justify different usage scenarios.
High-speed, High-Def: 3 USB-A 3.0 data ports enable the transfer of files with a speed of up to 5 Gbit/s, while an HDMI port supports the display of media with a resolution of up to 4K@60Hz.

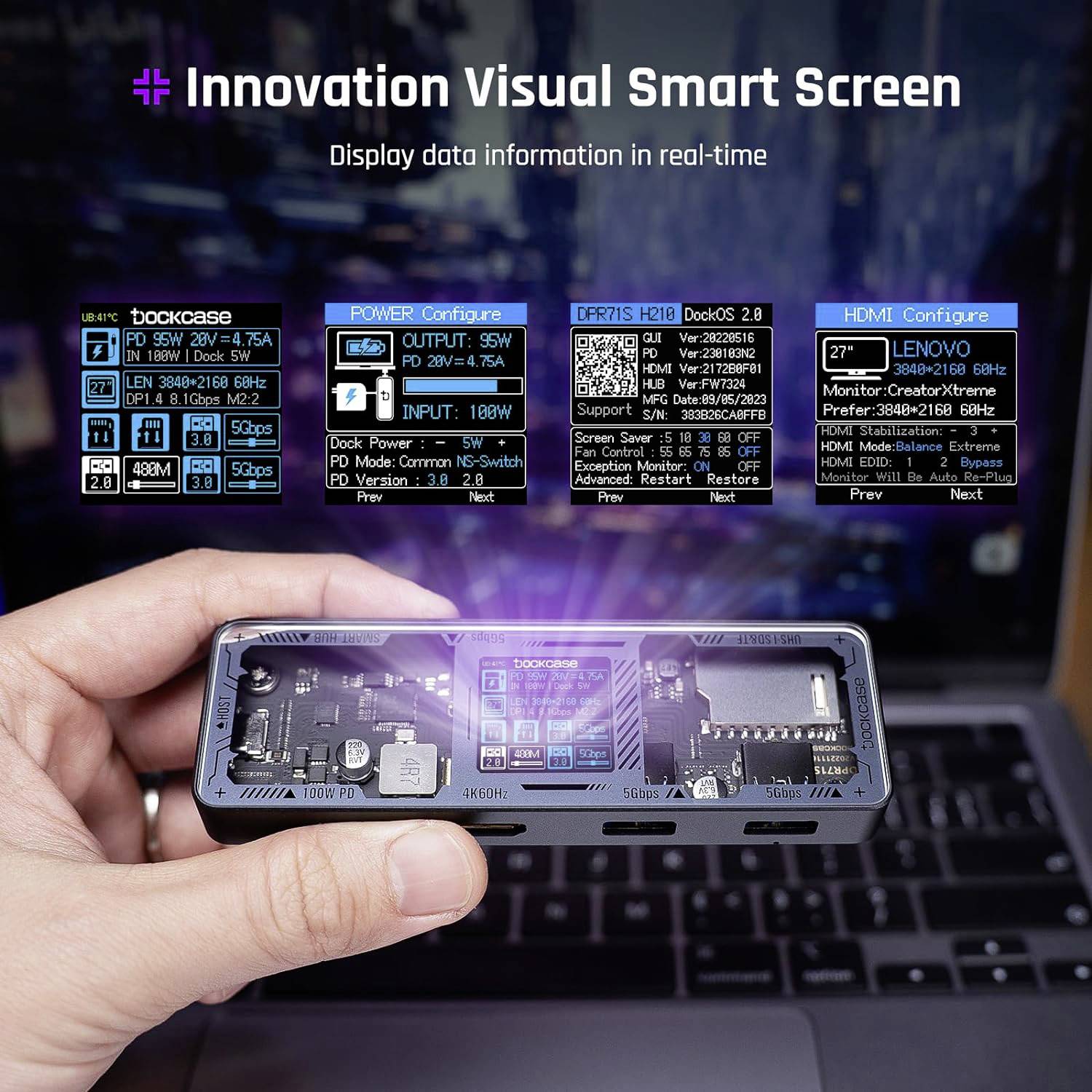

Intelligent heat dissipation: Built-in ch579m chip, intelligent display of the real chip temperature, the internal temperature is visible at a glance. The unique body design with the aluminum-zinc alloy shell for easier heat dissipation to ensure a stable work, and the product temperature is much lower than the same age.
This text is machine translated.
Massive expansion & smart design: Get more out of the full-featured USB-C® port on your device, with HDMI 2.0, Micro SD&SD card connectivity, 3 USB-A data ports, and high-speed transit charging with 100 W Power delivery. Detachable design, the length of the cable can be freely adjusted, in order to justify different usage scenarios.
High-speed, High-Def: 3 USB-A 3.0 data ports enable the transfer of files with a speed of up to 5 Gbit/s, while an HDMI port supports the display of media with a resolution of up to 4K@60Hz.
Intelligent heat dissipation: Built-in ch579m chip, intelligent display of the real chip temperature, the internal temperature is visible at a glance. The unique body design with the aluminum-zinc alloy shell for easier heat dissipation to ensure a stable work, and the product temperature is much lower than the same age.
This text is machine translated.
