Extech 382100 Network diagnostics Data logger
EAN:
Part number:
Item no:
Number
Total (€ 2,516.81 / piece)
€ 2,516.81
plus VAT.
Technical specifications
- Backlit 320 x 240 pixels
- Voltage range 10 V/AC to 600 V/AC
- Current range 0.2 A/AC to 1200 A/AC
- Input impedance 10 Megaohms
- Clamp opening: Up to Ø 86 mm
- Display (details)
81.4 x 61 mm LCD screen
- Power supply (details)
8x AA batteries
- Dim
(L x W x H) 22.5 x 12.5 x 6.4 cm
- Weight
955 g
- Height
6.4 cm
- Length
22.5 cm
- Width
12.5 cm
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
- Features
Data logger
- Product type
Network diagnostics
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3088654 Extech 382100 Network diagnostics Data logger
Description

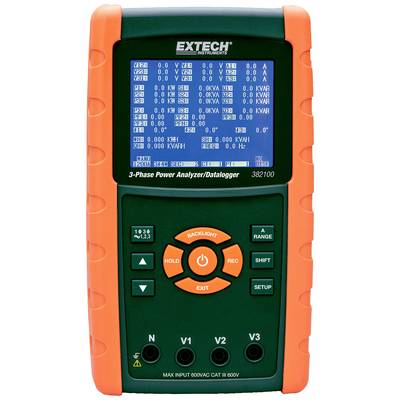

The Extech 382100 is a power analyzer/data logger for three-phase, which stores data (up to 30,000 sets of measurements) in Excel format on an SD-card, so that they can be transferred easily to your PC. It provides complete system analysis with up to 35 parameters including: V (phase-to-phase), V (phase-to-earth), A (phase-to-earth), KW/KVA/KVAR/PF (phase), KW/kVA/KVAR/PF (system), KWH/KVAH/KVARH/PFH (system) and phase angle. The Extech 382100 is a device that provides AC current, voltage, power, apparent power, Apparent power, phase angle and reactive power of three-phase circuits measured and analyzed.
This text is machine translated.
This text is machine translated.
Features
- High-precision current clamp meters with automatic range selection (0.2A to 1200A)
- 600.0 VAC input with safety rating CAT III-600 V.
- Adjustable current converter (CT) and potential transformer (PT)-ratio for high current distribution systems
- Log up to 30,000 readings on a removable SD memory card in Microsoft EXCEL® format
- Large sampling rate range (2 seconds to 2 hours)
- Recorded measurements can be imported directly into Excel via the SD memory card
- User-friendly screen menu
- The measured values are displayed on a large backlit LCD display with a dot matrix, which can be read in sunlight
Scope of delivery
- 3x clip-on ammeters
- 4x power cables with crocodile clips
- 8x AA batteries
- SD memory card
- Universal power supply for alternating current (100 to 240 V)
- Case.
- User manual
