Extech MO265 Moisture meter Building moisture reading range 0 up to 99.9 vol% Wood moisture reading range 6 up to 94.8 v
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 452.94 / piece)
€ 452.94
plus VAT.
Highlights & Details
Wood and material humidity meter MO265
- Measurement type (details) Invasive
- Suitable for
Technical specifications
- Non-invasive measurement range: 0 - 99.9% rel.
- Length Insertion electrode: 11 mm
- Measuring depth non-invasive: 22 mm
- Product type
Moisture meter
- Measurement type (details)
Invasive
- Wood moisture reading accuracy ±
5 %
Manufacturer's standards (no certificate)
- Power supply (details)
9 V battery
- Dim
(L x W x H) 43 x 58 x 203 mm
- Weight
204 g
- Display (details)
LCD/LED
- Building moisture reading range (max.)
99.9 vol%
- Building moisture reading range (min.)
0 vol%
- Reading range - wood moisture
6-94.8 vol %
- Wood moisture reading range (max.)
94.8 vol%
- Wood moisture reading range (min.)
6 vol%
- Moisture reading range (max.) (misc.)
99.9 %
- Moisture reading range (min) (misc.)
0 %
- Reading accuracy - wood moisture
5 %
- Width
58 mm
- Height
203 mm
- Length
43 mm
- Power supply
9 V battery (1x)
Documents & Downloads
Datasheet
Datasheet 103790 Extech MO265 Moisture meter Building moisture reading range 0 up to 99.9 vol% Wood moisture reading range 6 up to 94.8 v
User & Safety Instructions
User & Safety Instructions 103790 Extech MO265 Moisture meter Building moisture reading range 0 up to 99.9 vol% Wood moisture reading range 6 up to 94.8 v
Description

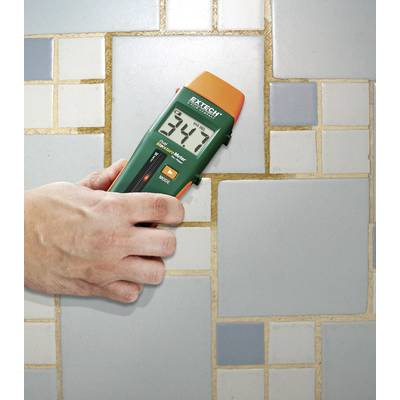

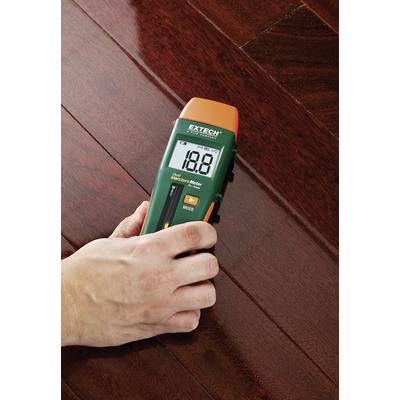

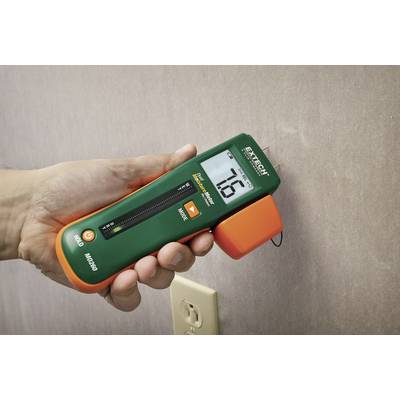

The measuring device combines two methods of measurement in one. Using the insertion probes enables the moisture content of building materials measured directly. At places where no insertion measurement is possible, the contact-free measurement method is used. The measured values can be changed in the display and trend-LED (Wet/Dry) can be read. An external sensor also enables the measurement at narrow places.
This text is machine translated.
This text is machine translated.
Features
- Simplyfying, external sensor insertion
- Protective cover
- Illuminated Display
- Hold function
- Device is integrated for the testing of the functions
- The rear stand thread.
Scope of delivery

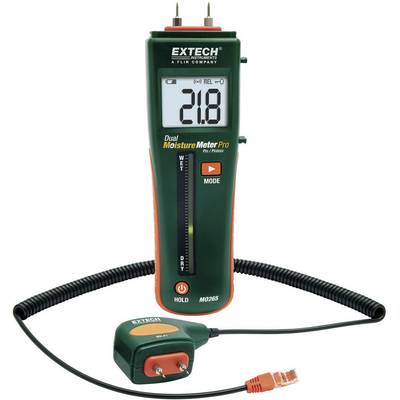

- External one tick sensor MO-P1
- Battery
- Spare insertion probes
- Bag
- User manual.
