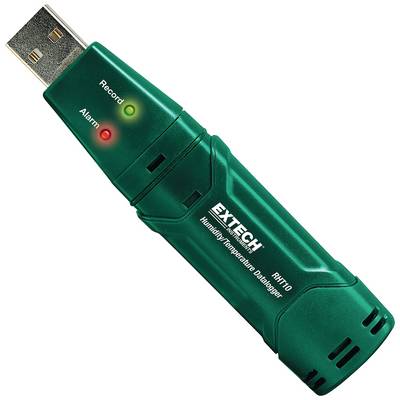

Extech RHT10 Temperature data logger, RH data logger Unit of measurement Temperature, Humidity -40 up to +70 °C 0 up to
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 96.63 / piece)
€ 96.63
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Dim
(L x W x H) 23 x 25 x 101 mm
- Weight
172
- Height
101 mm
- Length
23 mm
- Width
25 mm
- Temperature reading range
-40 up to +70 °C
Manufacturer's standards (no certificate)
- Unit of measurement
Temperature
Humidity
- Type
RHT10
- Humidity reading accuracy
5 RH
- Reading accuracy temperature
2 °C
- Humidity reading range (max.)
100 RH
- Humidity reading range (min.)
0 RH
- Temperature reading range (max.)
+70 °C
- Temperature reading range (min.)
-40 °C
- Temperature accuarcy (details)
2 °C
- Power supply
3.6 V Li battery
- Product type
Temperature data logger
Documents & Downloads
Datasheet
Datasheet 3088656 Extech RHT10 Temperature data logger, RH data logger Unit of measurement Temperature, Humidity -40 up to +70 °C 0 up to
User & Safety Instructions
User & Safety Instructions 3088656 Extech RHT10 Temperature data logger, RH data logger Unit of measurement Temperature, Humidity -40 up to +70 °C 0 up to
Description
The RHT10 captures humidity and temperature values (each up to 16,000) with user-programmable sampling rates from 2 seconds to 24 hours for days, weeks and months. USB interface for simple configuration and for downloading. Dew point display with included Windows software. This data logger measures and stores up to 16,000 measured values for relative humidity and 16,000 temperature measurements in the measurement ranges from 0 to 100% rF and –40 to +70°C (-40 to +158°F). The user can easily set the memory rate, high/low alarm, and boot mode, and download the data by plugging the module into a PC USB port and running the supplied software.
This text is machine translated.
This text is machine translated.
Features
- Data logs 32,000 readings (16,000 for each parameter: Humidity/temperature)
- Dew point indicator via Windows® software (included in delivery)
- RHT10-SW optional software for calculating grains per pound (grams per kilogram) to 1120GPP (160g/kg)
- Selectable data sampling rate 2 s, 5 s, 10 s, 30 s, 1 m, 5 m, 10 m, 30 m, 1 h, 2 h, 3 hrs, 6 hrs, 12 hrs, 24 hrs
- User-programmable alarm thresholds for RH and temperature
- Status indication via red/yellow LED and green LED
- Long battery life (approx. 1 year)
Scope of delivery
- 3.6 V lithium battery
- USB-Safety cap
- Mounting Bracket
- Windows compatible analysis software
