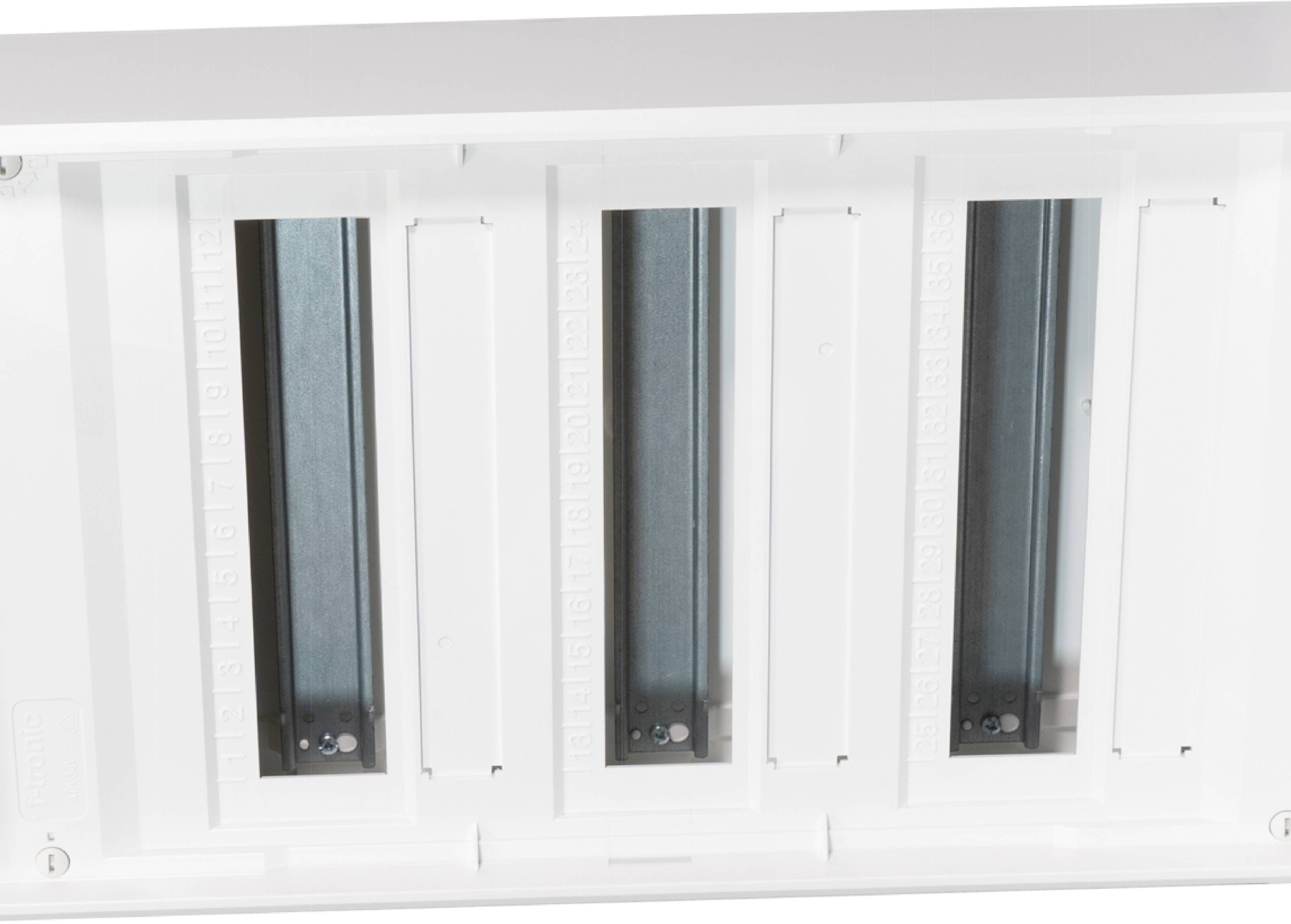

F-Tronic 7220211 VISION36+6 Distribution board Surface-mount No. of partitions = 42 No. of rows = 3 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution board
No. of partitions
42
No. of rows
3
Mounting type
Surface-mount
Width
305 mm
Datasheet (PDF)
Number
Total (€ 36.13 / piece)
€ 36.13
plus VAT.
Only 4 Piece(s) available
Highlights & Details
APV small distributor Vision 3.RHG.36+6,m. plug-in terminal, no door
- Easy distribution on wallsFor easy wall-surface mountingSupplied with plug-in terminals3-row version
- This text is machine translated.
Technical specifications
- Rated voltage: 400 VRated current 63 ALead-sealable yesProtection class (IP) IP30Cover material PSPS box material
- Product type
Distribution board
- No. of partitions
42
- with PE and N terminals
Yes
- No. of rows
3
- Mounting type
Surface-mount
- Factory colour
White
- Width
305 mm
- Height
515 mm
- Dim
(W x H x D) 305 x 515 x 99 mm
- Depth
99 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2770071 F-Tronic 7220211 VISION36+6 Distribution board Surface-mount No. of partitions = 42 No. of rows = 3 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2770071 F-Tronic 7220211 VISION36+6 Distribution board Surface-mount No. of partitions = 42 No. of rows = 3 Content 1 pc(s)
Description

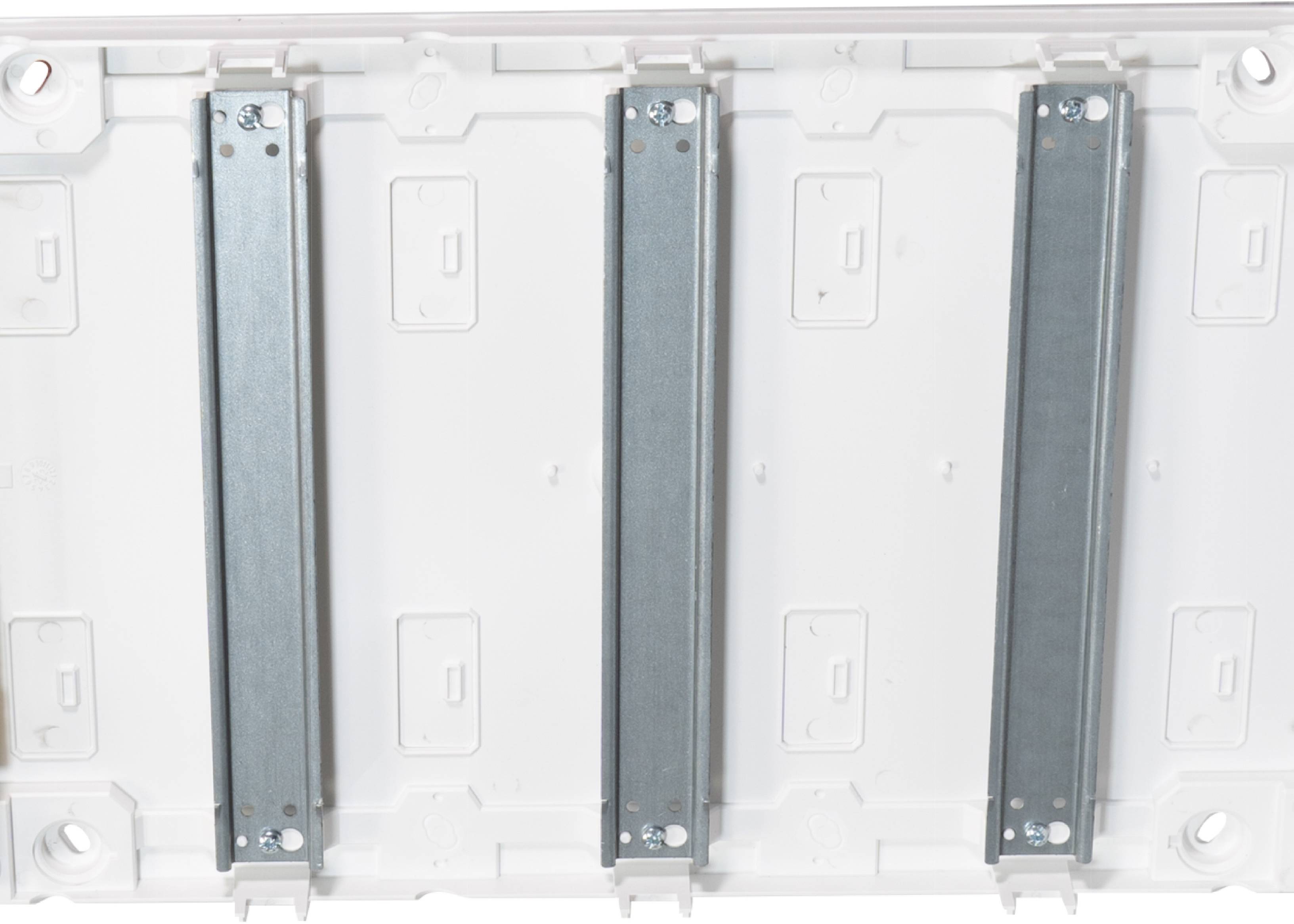

Surface-mounted small distribution for dry rooms with integral introduction options and large wiring space. Strain relief option at the top and bottom. Door systems made of metal and plastic (separate available). The junction box has a screw terminal system.
