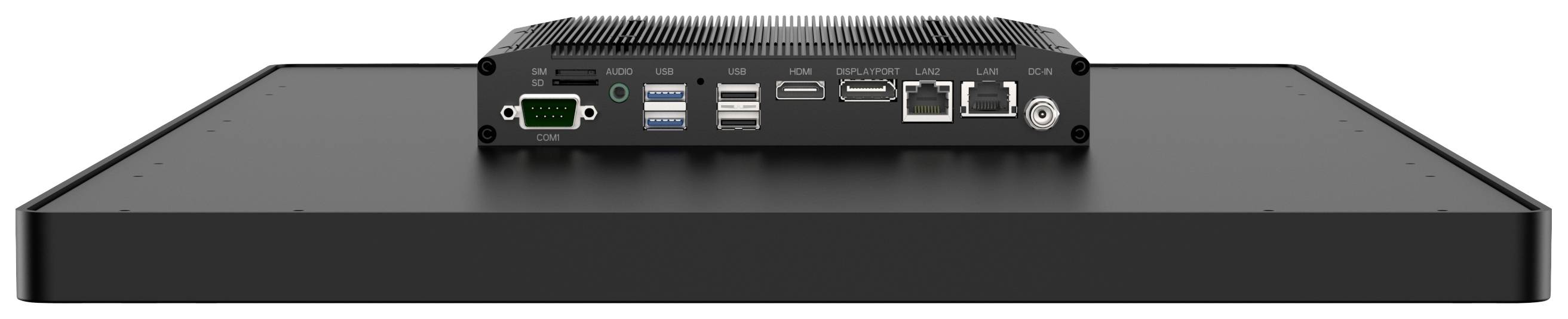

Back of an electronic device with multiple ports: HDMI, USB, Ethernet and power connection on a black surface.

Black electronic box with multiple ports, including a green VGA port, on a grey background.

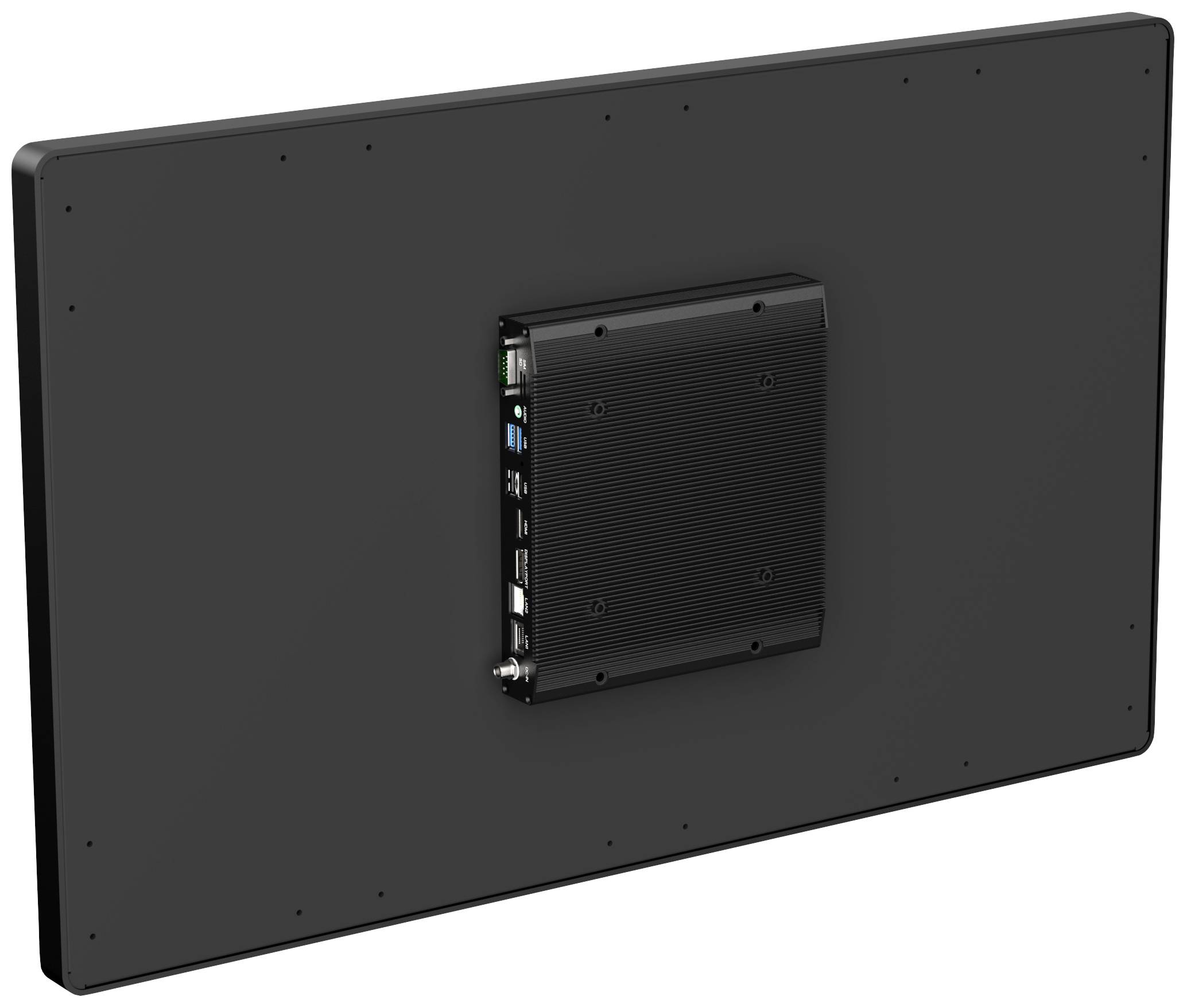

Back of a black flat-screen monitor with an integrated connection panel and multiple interfaces for various cable connections.

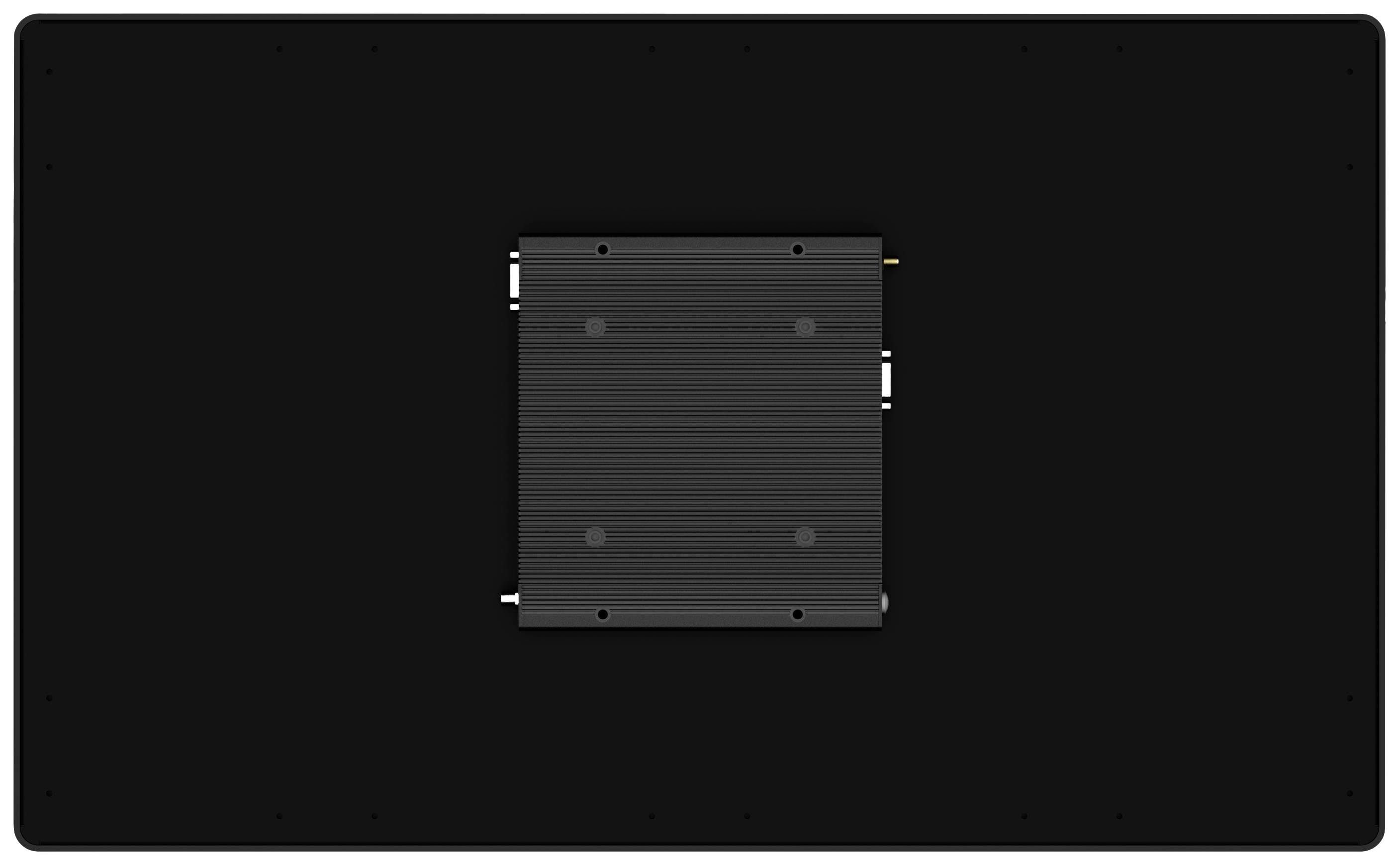

Back of a rectangular, black monitor with a visible mounting plate in the centre.

1/6

Datasheet (PDF)

Dispatches on Tue, 15 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,407.56 / piece)

€ 1,407.56

plus VAT.

Report legal concerns

Highlights & Details

Faytech FT27BX6413ECAPOB - 27" touch - PC capacitive with 8GB RAM, 120GB SSD & 9-36V

Screen size 68.6 cm (27 inch)
Energy efficiency rating (calc): n.rel.
Interfaces: HDMI™, DisplayPort, Audio line in, Audio line out, Wi-Fi, USB A (USB 2.0), USB A (USB 3.0), Card reader, SD, RS232;IP65 - front side (water- and dust-proof)

Technical specifications

Protection class IP65 front side, IP40 back, IK7
Surface hardness 7H
Temperature range -10 to +60 oC

Product type: Touchscreen

Contrast ratio (dyn): 3000 : 1

Brightness: 300 cd/m²

Hor. viewing angle: 178°

Vertical viewing angle: 178°

Panel technology: IPS LCD

Wall mounting option: 100 x 100 mm VESA standard

Points of contact: 10

Factory colour: Black

Features: IP65 - front side (water- and dust-proof)

No. of HDMI ports: 1 x

No. of USB ports: 4 x

Interfaces: HDMI™
DisplayPort
Audio line in
Audio line out
Wi-Fi
USB A (USB 2.0)
USB A (USB 3.0)
Card reader
SD
RS232

No. of DisplayPort: 1 x

Width: 663 mm

Height: 405 mm

Depth: 56 mm

Dim: (W x H x D) 663 x 405 x 56 mm

Weight: 8000 g

Display type: LED backlit

Display size: 24 inch - 29 inch

: n.rel.

Screen coating: Anti-glare

Display: 68.6 cm (27 inch)

Power supply (details): 100 - 240 V

Touchscreen (display): Yes

Resolution (max.): 1920 x 1080 p

Screen resolution: Full HD (1920 x 1080 Pixel)

Display (cm): 68.6 cm

Screen size diagonal (cm): 68.5 cm

Screen size diagonal (inches): 27 inch

Power consumption (ON): 33 W

Standby consumption: 1 W

Keyboard layout: German, QWERTZ

Variants(All information is without VAT, plus shipping costs)

Width

Screen size diagonal (inches)

Depth

Height

Faytech FT27BX6413ECAPOB Touchscreen 68.6 cm (27 inch) 1920 x 1080 p HDMI™, DisplayPort, Audio line in, Audio line out, Wi-Fi, USB A (USB 2.0), USB A (USB 3.0), Card reader, SD, RS232 IPS LCD

Item no:3205484

This article

663 mm

27 inch

56 mm

405 mm

Faytech FT10BX6413ECAPOB Touchscreen 24.6 cm (9.7 inch) 1920 x 1080 p 4:3 HDMI™, DisplayPort, Audio line in, Audio line out, Wi-Fi, USB A (USB 2.0), USB A (USB 3.0), Card reader, SD, RS232 IPS LCD

Item no:3205474

245 mm

9.7 inch

44 mm

190 mm

Faytech FT101BX6413ECAPOB Touchscreen 25.7 cm (10.1 inch) 1920 x 1080 p 16:10 HDMI™, DisplayPort, Audio line in, Audio line out, Wi-Fi, USB A (USB 2.0), USB A (USB 3.0), Card reader, SD, RS232 IPS LCD

Item no:3205475

278 mm

10.1 inch

43 mm

204 mm

Faytech FT121BX6413ECAPOB Touchscreen 30.7 cm (12.1 inch) 1920 x 1080 p 16:10 HDMI™, DisplayPort, Audio line in, Audio line out, Wi-Fi, USB A (USB 2.0), USB A (USB 3.0), Card reader, SD, RS232 IPS LCD

Item no:3205476

301 mm

12.1 inch

53 mm

246 mm

Faytech FT133BX6413ECAPOB Touchscreen 33.8 cm (13.3 inch) 1920 x 1080 p 16:9 HDMI™, DisplayPort, Audio line in, Audio line out, Wi-Fi, USB A (USB 2.0), USB A (USB 3.0), Card reader, SD, RS232 IPS LCD

Item no:3205477

338 mm

13.3 inch

42 mm

221 mm

Faytech FT15BX6413ECAPOB Touchscreen 38.1 cm (15 inch) 1920 x 1080 p 4:3 HDMI™, DisplayPort, Audio line in, Audio line out, Wi-Fi, USB A (USB 2.0), USB A (USB 3.0), Card reader, SD, RS232 IPS LCD

Item no:3205478

359 mm

15 inch

55 mm

291 mm

Faytech FT156BX6413ECAPOB Touchscreen 39.6 cm (15.6 inch) 1920 x 1080 p 16:9 HDMI™, DisplayPort, Audio line in, Audio line out, Wi-Fi, USB A (USB 2.0), USB A (USB 3.0), Card reader, SD, RS232 IPS LCD

Item no:3205479

389 mm

15.6 inch

43 mm

347 mm

Faytech FT17BX6413ECAPOB Touchscreen 43.2 cm (17 inch) 1920 x 1080 p 5:4 HDMI™, DisplayPort, Audio line in, Audio line out, Wi-Fi, USB A (USB 2.0), USB A (USB 3.0), Card reader, SD, RS232 IPS LCD

Item no:3205480

393 mm

17 inch

54 mm

333 mm

Faytech FT19BX6413ECAPOB Touchscreen 48.3 cm (19 inch) 1920 x 1080 p 4:3 HDMI™, DisplayPort, Audio line in, Audio line out, Wi-Fi, USB A (USB 2.0), USB A (USB 3.0), Card reader, SD, RS232 IPS LCD

Item no:3205481

432 mm

19 inch

53 mm

365 mm

Faytech FT215BX6413ECAPOB Touchscreen 54.6 cm (21.5 inch) 1920 x 1080 p 16:9 HDMI™, DisplayPort, Audio line in, Audio line out, Wi-Fi, USB A (USB 2.0), USB A (USB 3.0), Card reader, SD, RS232 IPS LCD

Item no:3205482

532 mm

21.5 inch

56 mm

331 mm

Documents & Downloads

Datasheet

Datasheet 3205484 Faytech FT27BX6413ECAPOB Touchscreen 68.6 cm (27 inch) 1920 x 1080 p HDMI™, DisplayPort, Audio line in, Audio line out,

User & Safety Instructions

User & Safety Instructions 3205484 Faytech FT27BX6413ECAPOB Touchscreen 68.6 cm (27 inch) 1920 x 1080 p HDMI™, DisplayPort, Audio line in, Audio line out,

Description

The capacitive PC series of Faytech stands out from the competition through its fan-less, quiet operation, the IP65 front-panel design, high reliability and fine workmanship. It is the perfect choice for industrial and business applications. It features flat, rimless glass with water and dust-proof IP65 front plates and a robust aluminum casing with stable VESA 100-fastening bolts. This solution consists of a front kit and a back kit and ensures that your desired configuration is easily customizable.

This touch PC is powered by faytech's Elkhart industrial Lake motherboard. It is driven by the powerful Intel Atom x6413E processor with up to 3.00 GHz burst frequency (also available with Intel x6211E or J6412 processor). This version is equipped with 8 GB RAM, 120 GB SSD and Intel's UHD graphics chipset.

This text is machine translated.
