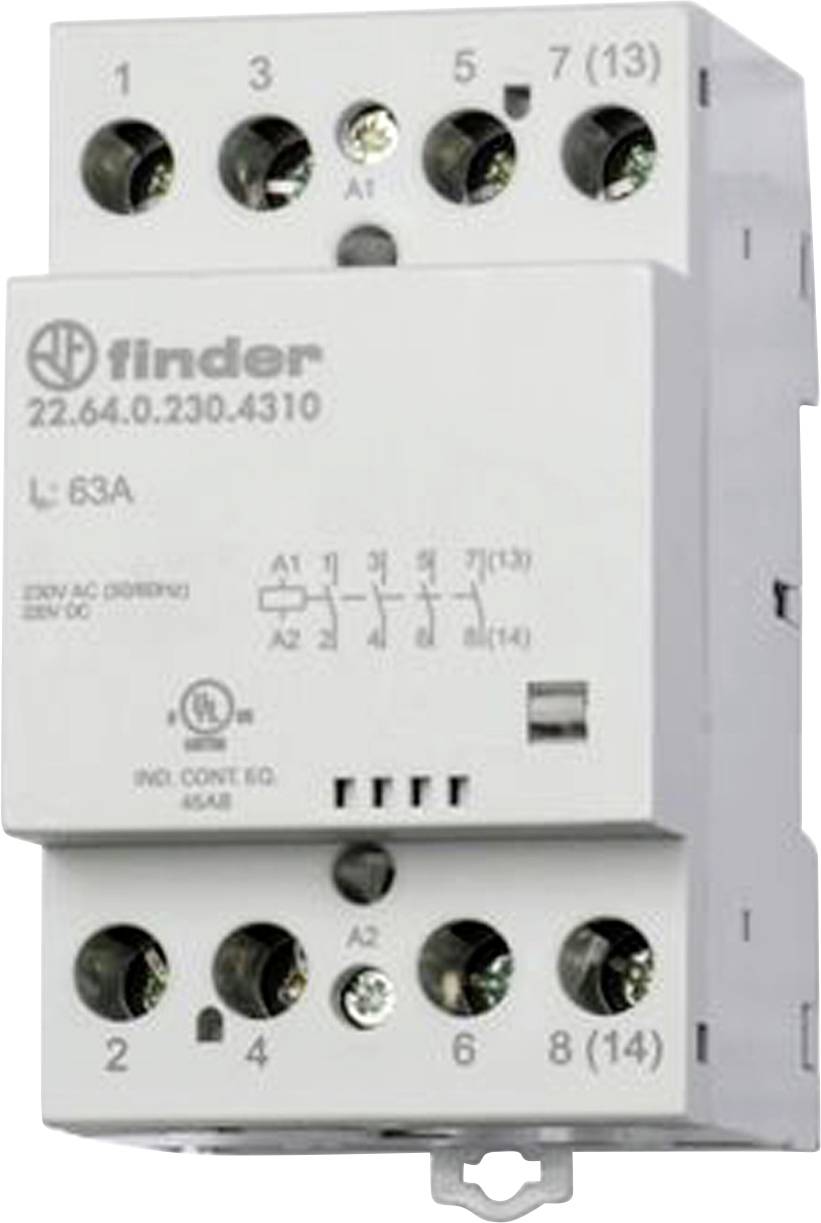

Finder 22.64.0.230.4610 Remote switch 2 breakers, 2 makers 440 V AC Compatible with (relay brand): Finder 1 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
No. of pins
4-pin
Nominal voltage
440 V AC
Type
22.64.0.230.4610
Contact type
2 breakers
2 makers
Datasheet (PDF)
Number
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
14 days return policy included
Technical specifications
- Installation depth: 63.1 mm
- Number of division units: 3
- Usage category: 3
- Max. Incandescent lamp load 5000 W.
- Max. Fluorescent lamp load 2000 VA
- Max. Fluorescent lamp load (Duo-circuit): 2000 VA
- Max. Fluorescent lamp load (compensated in parallel): 2000 VA
- Product type
Remote switch
- Type
22.64.0.230.4610
- No. of pins
4-pin
- Contact type
2 breakers
2 makers
- Contact material
AgSnO2
- Nominal voltage
440 V AC
- Switching voltage (max.)
230 V DC/AC
- Permanent current (max.)
63 A
- Compatible with
Finder
- Compatible with series
Finder 22.64 series
- Mounting type
DIN rail
IP20
- Width
53.5 mm
- Depth
63.1 mm
- Dim
(W x D) 53.5 mm x 63.1 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
53.5
95.8 mm
63.1 mm
TRUE
15 kW
2
2
0
0
30 A
63 A
230-230 V
230-230 V
230-230 V
Screw connection
196-264 V
196-264 V
AC/DC
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2474634 Finder 22.64.0.230.4610 Remote switch 2 breakers, 2 makers 440 V AC Compatible with (relay brand): Finder 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2474634 Finder 22.64.0.230.4610 Remote switch 2 breakers, 2 makers 440 V AC Compatible with (relay brand): Finder 1 pc(s)
Description
Installation contactor for 35 mm rail, 2 NC contacts and 2 NO contacts for 63 A / 440 V AC, contact material AgSnO2, max. inrush current 240 A - 5 ms, max. switching power at 230 V AC: AC1-AC-7a: 24 kVA, rated current AC3-AC7b 30 A, incandescent and halogen lamps 5000 W, fluorescent lamps with EVG 2000 W, Fluorescent lamps-uncompressed 2000 W, energy-saving lamps 1500 W, LED (230 V AC) 1500 W, NV-halogen lamps or LED with EVG 1500 W, NV-halogen lamps or LED with KVG 2000 W. Coil 230 V AC/DC, width 53.5 mm, mechanical switching position display, relay protection type: IP 20
