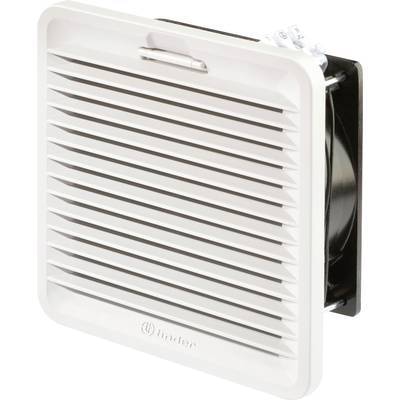

Finder 7F.20.8.230.4250 Fan and filter 230 V 45 W (W x H x D) 255 x 255 x 90.2 mm Compatible with: Finder 7F.20 series 1
EAN:
Part number:
Item no:
Product type
Fan and filter
Operating voltage
230 V
Power
45 W
Width
255 mm
Height
255 mm
Datasheet (PDF)
Number
Total (€ 138.65 / piece)
€ 138.65
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Mounting type: Snap-on mounting
- With protective cover: Yes
- Wall mounting: Yes
- Product type
Fan and filter
- Type
7F.20.8.230.4250
- Features
Fan
incl. filter
- Operating voltage
230 V
- Max. operating voltage
230 V AC
- Operating voltage
230 V AC (max)
- Max. current consumption
200 mA
45 W
- Air flow rate
250 m³/h
- Type
4
- Compatible with
Finder
- Compatible with
Finder 7F.20 series
- Factory colour
Grey
- Min. temperature
-15 °C
- Max. temperature
55 °C
IP54
- Width
255 mm
- Height
255 mm
- Depth
90.2 mm
- Dim
(W x H x D) 255 x 255 x 90.2 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2474736 Finder 7F.20.8.230.4250 Fan and filter 230 V 45 W (W x H x D) 255 x 255 x 90.2 mm Compatible with: Finder 7F.20 series 1
User & Safety Instructions
User & Safety Instructions 2474736 Finder 7F.20.8.230.4250 Fan and filter 230 V 45 W (W x H x D) 255 x 255 x 90.2 mm Compatible with: Finder 7F.20 series 1
Description
Filter fan for control cabinet, 250 m3/h, operating voltage 230 V, operating current 200 mA, rated power 46 W, Size 4, mounting cut-out 224 x 224, protection class IP 54, ambient temperature -15...+55 degrees C.
