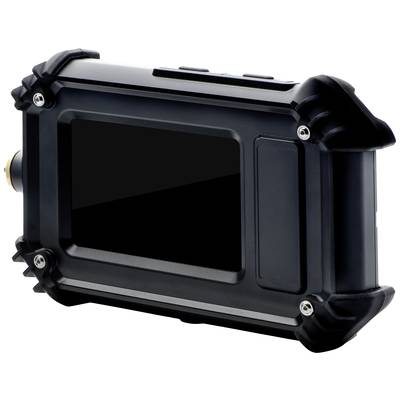

A black camera with a robust protective casing and digital display on the back, suitable for outdoor activities.

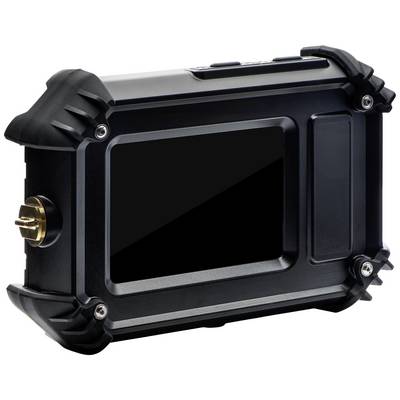

A black, robust electronic device with a display and protective casing, likely suitable for outdoor use.

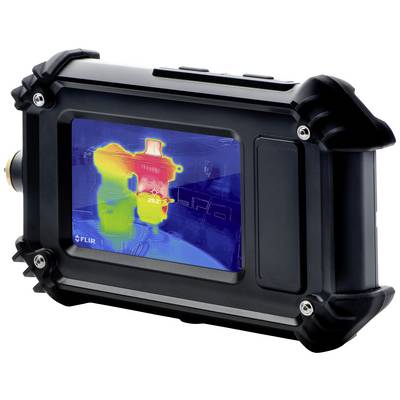

A handheld device displays a thermal imaging camera view with colour temperature variations of an object on the screen.

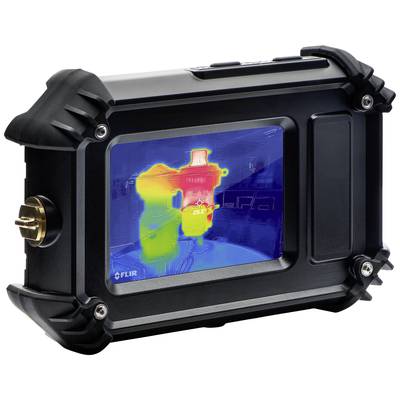

Thermal imaging camera shows a colourful thermogram with temperature display. The main object in the centre is depicted in red, surrounded by cooler colours.

A black, robust thermal imaging camera with multiple screws around the lens, suitable for demanding environments.

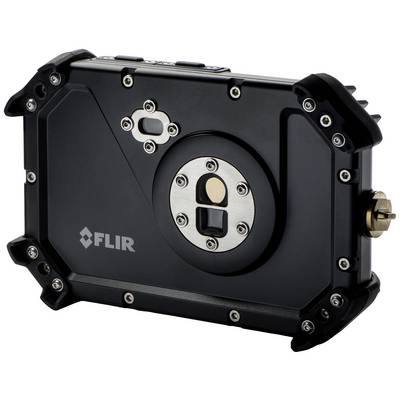

A black, robust camera with a distinctive, reinforced casing and central lens, designed for extremely resilient applications.

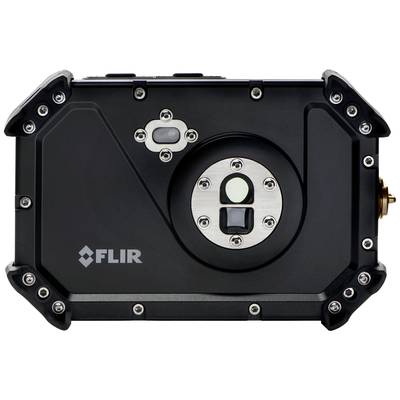

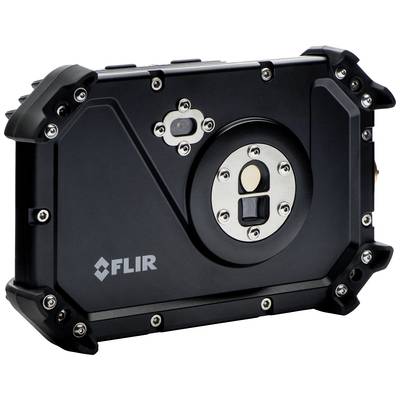

Black, robust thermal imaging camera by FLIR with lens and multiple screws at the corners, suitable for extreme conditions.

A robust, metallic laptop lid with screws; a near-cylindrical device on the right side, presumably a port.

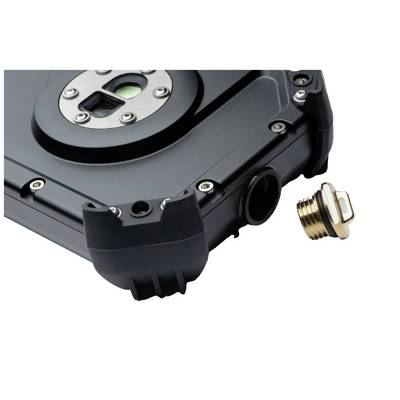

Industrial device with a robust housing and a removable front component. Suitable for demanding environments.

A black electronic device with a gold-coloured screw cap, showing a USB-C port. View from the underside.

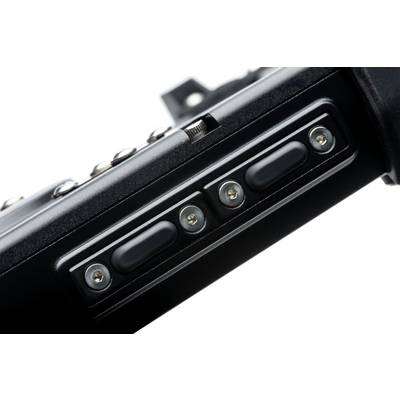

Close-up of an electronic device with multiple rows of buttons.

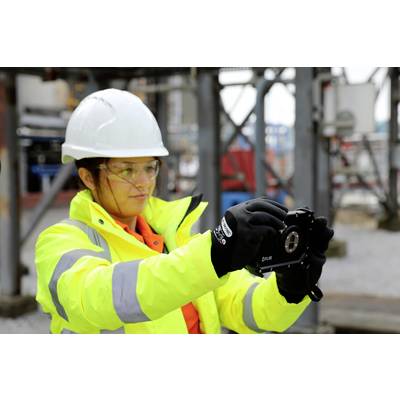

A person in protective clothing, including a hard hat and safety glasses, is operating a technical device on an industrial construction site.

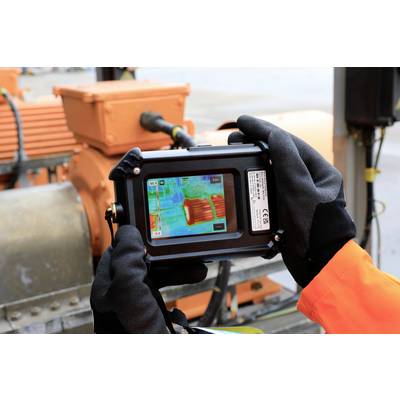

A person wearing protective gloves is holding a thermal imaging camera monitoring the engine of a large piece of equipment.

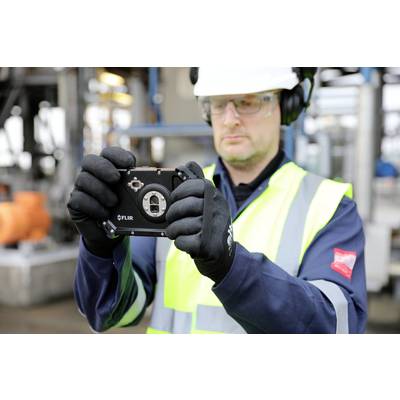

A worker in protective clothing and a hard hat is holding a measuring device, focused while working in an industrial environment.

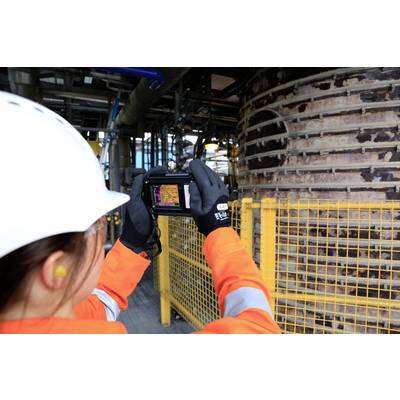

A person in protective clothing is photographing an industrial facility with a thermal imaging camera. A large metal structure is visible.

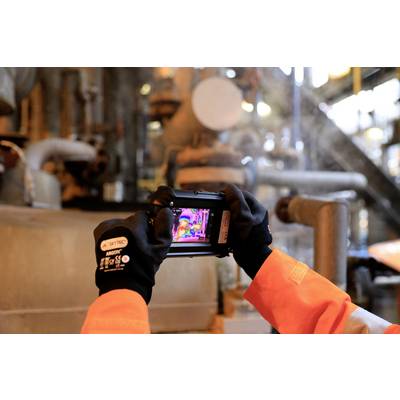

A person in protective clothing is holding a thermal imaging camera that is measuring the temperatures of pipes in an industrial facility.

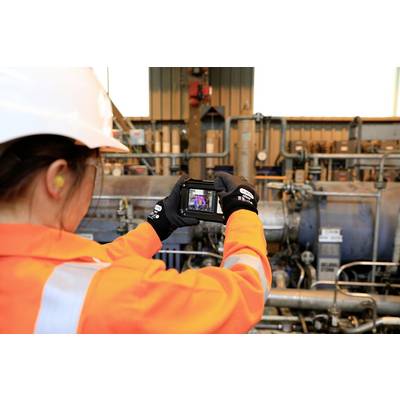

A person in orange protective clothing and a helmet is using a camera device in an industrial environment with pipes and machinery.

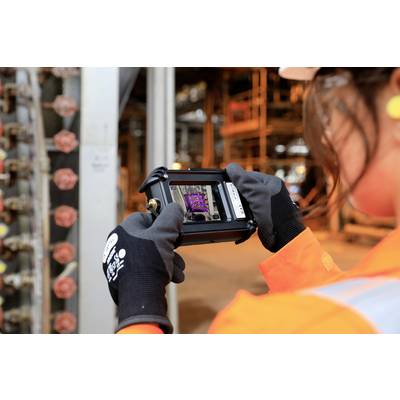

A person in work attire and a hard hat is photographing an industrial environment in a factory hall using a portable device.

1/20

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 2,150.42 / piece)

€ 2,150.42

plus VAT.

Report legal concerns

Highlights & Details

FLIR CX5 - thermal imager for hazardous areas

8.7 Hz Thermal imaging camera
Temperature reading range -20 up to +400 °C
Bolometer matrix
Thermal sensitivity 70 mK

Technical specifications

Lithium rechargeable battery 3.7 V/1800 mAhMin. Focusing distance thermal: 0.1 mMinimum focusing distance of MSX: 0.3 m

Type: FLIR Cx5

Product type: IR camera

Temperature reading range (max.): +400 °C

Colour schemes: 6

Temperature reading range (min.): -20 °C

Optics: 54° x 42°

Frame rate: 8.7 Hz

Display resolution: 160 x 120 Pixel

: IP54

Thermal sensitivity: 70 mK

Dim: (L x W x H) 235 x 100 x 95 mm

Memory units: 5000

Focus: Fixed-focus

Weight: 690 g

Temperature reading range: -20 up to +400 °C

Width: 100 mm

Height: 95 mm

Length: 235 mm

Connection: USB 2.0
Bluetooth
Wi-Fi (802.11b/g)

Features: MSX®
Built-in LED light
Wi-Fi
Touchscreen

Documents & Downloads

Datasheet

Datasheet 2735096 FLIR FLIR Cx5 IR camera -20 up to +400 °C 8.7 Hz MSX®, Built-in LED light, Wi-Fi, Touchscreen

User & Safety Instructions

User & Safety Instructions 2735096 FLIR FLIR Cx5 IR camera -20 up to +400 °C 8.7 Hz MSX®, Built-in LED light, Wi-Fi, Touchscreen

Description

The FLIR CX5 is certified for use in many hazardous environments. Therefore, no permits are required for welding operations due to gas, vapors and dust. T-Class measurements can be performed quickly and easily. With FLIR multi-spectral dynamic imaging (MSX) and 1-touch level/span, the CX5 helps quickly identify potential problems and improve plant performance. The 3.5-inch touch-screen surface is easy to use and the thermal resolution of 160 × 120 permits exact temperature measurements at nearby destinations. The integrated cloud service FLIR Ignite™ allows you to transfer, store and back up your data directly. In this way, your recordings are always available on all your devices and are stored securely. With the FLIR CX5 in your toolbox, you're always ready to inspect mechanical and electrical equipment at your production site.

This text is machine translated.

Features

A permit for hot work in certain hazardous locations due to explosive gases or dust is no longer necessaryAccurate temperature measurement160x120 detectorThe patented MSX® shapes visual details into the infrared image in order to produce a sharper, easier to understand pictureFLIR Ignite cloud connectivity with automated transmission, storage, backup and sharing capabilities that dramatically reduce time and effortRobust and reliable construction for professional useCompact and light design for safe, single-handed operation and transport
