Fluke 116/323 Handheld multimeter, Clamp meter Digital LoZ CAT III 600 V Display (counts): 6000
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 533.61 / piece)
€ 533.61
plus VAT.
Only 4 Piece(s) available
Highlights & Details
116/323
- CAT III 600 V
Technical specifications
- Voltage reading range DC (min.)
0.1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
0.1 mV
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
0.1 µA
- A DC reading range (max.)
600 µA
- A AC reading range (min.)
0.1 µA
- Amperage reading range AC (max.)
600 µA
- Reading range - resistance
0.1 Ω - 40 MΩ
- Reading range - capacity
1 nF - 9999 µF
- Frequency reading range
5 Hz - 50 kHz
- DC resistance
10 MΩ
- AC resistance
5 MΩ
- Basic accuracy
0.5 %
- Measurement type (details)
True RMS
- Frequency range
45 Hz - 1 kHz Hz
- Interfaces
none
- Power supply (details)
9 V battery
- Height
167 mm
- Width
84 mm
- Weight
550 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
116/323
- Display
Digital
- Display (counts)
6000
- Dim
(W x H) 84 mm x 167 mm
- Temperature reading range (max.)
+400 °C
- Temperature reading range (min.)
-40 °C
- Features
LoZ
Documents & Downloads
Datasheet
Datasheet 557065 Fluke 116/323 Handheld multimeter, Clamp meter Digital LoZ CAT III 600 V Display (counts): 6000
Datasheet 557065 Fluke 116/323 Handheld multimeter, Clamp meter Digital LoZ CAT III 600 V Display (counts): 6000
User & Safety Instructions
User & Safety Instructions 557065 Fluke 116/323 Handheld multimeter, Clamp meter Digital LoZ CAT III 600 V Display (counts): 6000
User & Safety Instructions 557065 Fluke 116/323 Handheld multimeter, Clamp meter Digital LoZ CAT III 600 V Display (counts): 6000
User & Safety Instructions 557065 Fluke 116/323 Handheld multimeter, Clamp meter Digital LoZ CAT III 600 V Display (counts): 6000
Information
Information 557065 Fluke 116/323 Handheld multimeter, Clamp meter Digital LoZ CAT III 600 V Display (counts): 6000
Information 557065 Fluke 116/323 Handheld multimeter, Clamp meter Digital LoZ CAT III 600 V Display (counts): 6000
Description
The multimeter and current clamp-on ammeters combo kit for heating, ventilation and air conditioning technicians is a particularly attractive complete solution for efficient troubleshooting. It contains all the accessories, the heating, ventilation and air conditioning technicians need. Also part of this complete solution is the practical and protective padded carrying bag C115.
This text is machine translated.
This text is machine translated.
Features
- Fluke 116: acoustic. Continuity testing
- LoZ-switchover for low input impedance
- Automatic AC/DC-V switchover
- Analogue segment display
- Min/Max/average reading
- Microampere range for measurements of fire alarms
- Fluke 323: ac and dc voltage
- AC
- Resistance
- Acoustic continuity tester

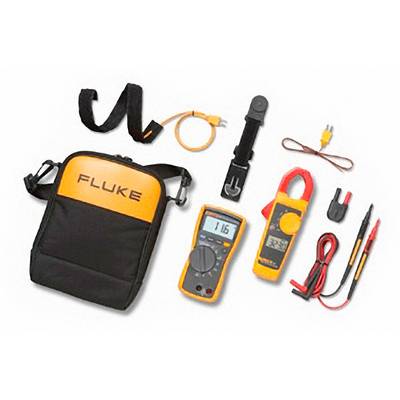

Scope of delivery
- The Fluke 116
- Fluke 323
- TL175 Measuring Power Set
- TPak ToolPak meter suspension loop
- Thermo element
- 80BK integrated temperature probe
- 80 AK-A thermocouple adapter
- C115 carrying case.
