Fluke 28 IIEX Handheld multimeter Digital Waterproof (IP67), Explosion proof CAT III 1000 V, CAT IV 600 V Display (count
EAN:
Part number:
Item no:
Number
Total (€ 1,886.55 / piece)
€ 1,886.55
plus VAT.
Highlights & Details

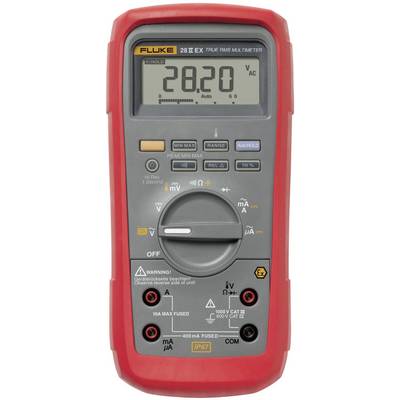

FLUKE-28 IIEX digital multimeter
- CAT IV 600V, CAT III 1000 V
- Housing according to IP67
- Explosion-protected according to ATEX and IECEx
Technical specifications
- Conductance up to 60 nS
- Voltage reading range DC (min.)
0.1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0.1 mV
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
0.1 µA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
0.1 µA
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
0.1 Ω - 50 MΩ
- Reading range - capacity
10 nF – 9999 µF
- Frequency reading range
0.5 Hz – 199.99 kHz
- Temperature
-200 to +1090 °C
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
0.05 %
- Measurement type (details)
True RMS
- Frequency range
45 Hz - 20 kHz Hz
- Interfaces
none
- Power supply (details)
3 x AAA batteries
- Height
198 mm
- Width
100 mm
- Weight
769 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
28 IIEX
- Display
Digital
- Display (counts)
20000
- Dim
(W x H) 100 mm x 198 mm
- Temperature reading range (max.)
+1090 °C
- Temperature reading range (min.)
-200 °C
- Features
Waterproof (IP67)
Explosion proof
- Displays
20,000 counts
- Reading category
CAT IV 600V, CAT III 1000 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 124329 Fluke 28 IIEX Handheld multimeter Digital Waterproof (IP67), Explosion proof CAT III 1000 V, CAT IV 600 V Display (count
Conformity certificate
Conformity certificate 124329 Fluke 28 IIEX Handheld multimeter Digital Waterproof (IP67), Explosion proof CAT III 1000 V, CAT IV 600 V Display (count
Description
The FLUKE 28II EX is an intrinsically safe digital multimeter (DMM) for use in the areas IIC (gas) zone 1 and 2 and IIIC (dust) zone 21 and 22. If you work in the petrochemical sector, chemical or pharmaceutical industry, you will find all the measurement and search functions you need in this robust, intrinsically safe multimeter. The Fluke 28II Ex has type IP 67 protection against temporary submersion in water and is dust-proof and shock-proof. It is up to any task in hazardous and non-hazardous areas without compromising on features or measurement capabilities.
Features
- Impact-resistant from heights of up to 3 metres
- Display lighting
- Data storage for MIN/MAX/average value up to 250 µs
- Robust thanks to rubber protection
- Low-pass filter
- Audible alarm when test leads are connected incorrectly
- Diode tester
- Duty cycle display.
Scope of delivery
- Test leads
- Insulated alligator clips
- Rubber holster
- Batteries
- Instructions for use.
