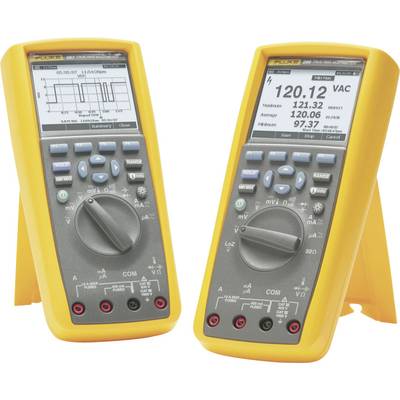

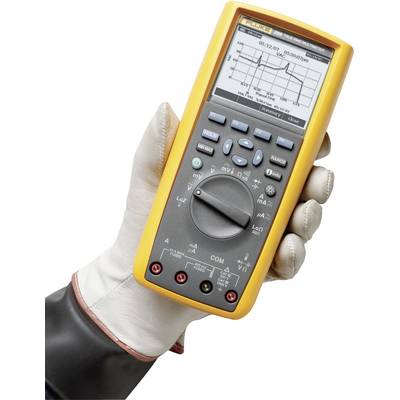

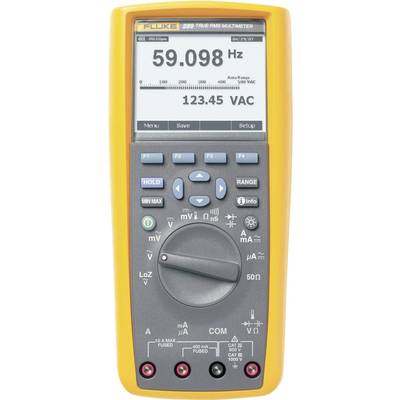

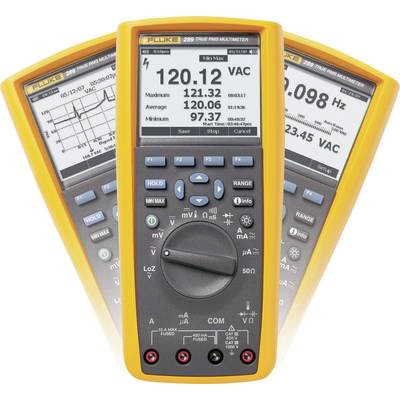

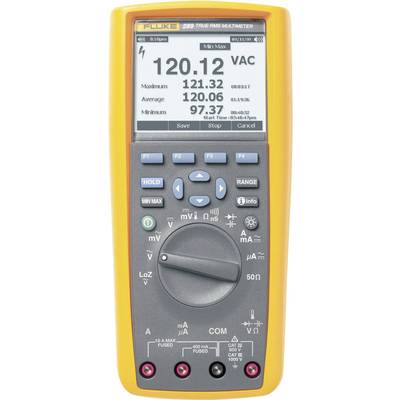

Fluke 289/EUR Handheld multimeter Digital Graphics display, Data logger, LoZ CAT III 1000 V, CAT IV 600 V Display (count
EAN:
Part number:
Item no:
Number
Total (€ 1,032.77 / piece)
€ 1,032.77
plus VAT.
Highlights & Details
289/EUR
- Data logger with 10,000 measured data
- 0.025% basic accuracy
- 100 kHz AC bandwidth
Technical specifications
- Voltage reading range DC (min.)
0.001 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0.001 mV
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
0.01 µA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
0.01 µA
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
0.001 mV - 500 MΩ
- Reading range - capacity
1 pF - 50 mF
- Frequency reading range
01 Hz - 1 MHz
- Temperature
-200 to +1350 °C
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
0.025 %
- Measurement type (details)
True RMS
- Frequency range
20 Hz -100 kHz Hz
- Interfaces
optical
- Power supply (details)
6 batteries (type AA)
- Height
222 mm
- Width
102 mm
- Weight
871 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
289/EUR
- Display
Digital
- Display (counts)
50000
- Dim
(W x H) 102 mm x 222 mm
- Temperature reading range (max.)
+1350 °C
- Temperature reading range (min.)
-200 °C
- Features
Graphics display
Data logger
LoZ
- Basic accuracy
± 0.025 %
- Displays
50 000 (320 x 240 Pixel)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 124366 Fluke 289/EUR Handheld multimeter Digital Graphics display, Data logger, LoZ CAT III 1000 V, CAT IV 600 V Display (count
Conformity certificate
Conformity certificate 124366 Fluke 289/EUR Handheld multimeter Digital Graphics display, Data logger, LoZ CAT III 1000 V, CAT IV 600 V Display (count
Description

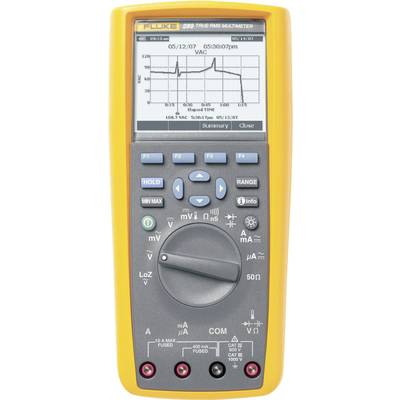

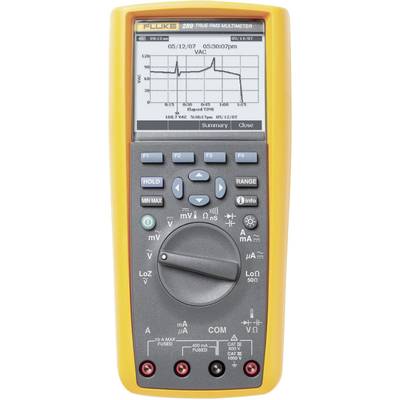

The error search function, the resolution and the accuracy makes the Fluke 289 the ideal measuring instrument for demanding applications. It offers functions for the determination of problems in motor drive controls, in the Process automation, in the energy distribution and in electromechanical systems. The device records measurement data, which can then be shown as numeric value or as trend curve in the graphics display.
Features
- Large graphic display and 50,000 counts with white backlight
- Logging function for 10,000 measured values with trend representation
- Built-in help feature
- Recording of multiple measurements
- Continuous data recording up to approx. 200 hours
- Rapid detection of peak value (250 µs)
- Soft keys and scrolling buttons
- Upgradeable firmware
- Measurement with low input impedance "LoZ"
- Low pass filter for accurate measurements on adjustable motor drives
- Low ohmic measurement up to 0.001 Ω for measurements of motor coils or contact resistances.

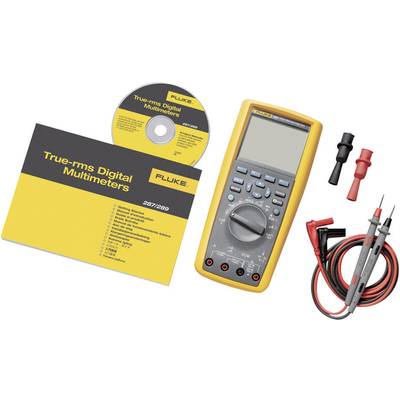

Scope of delivery
- 6 batteries (Size AA)
- 1 set of test leads
- Shock-proof rubber holster
- Operating instructions
