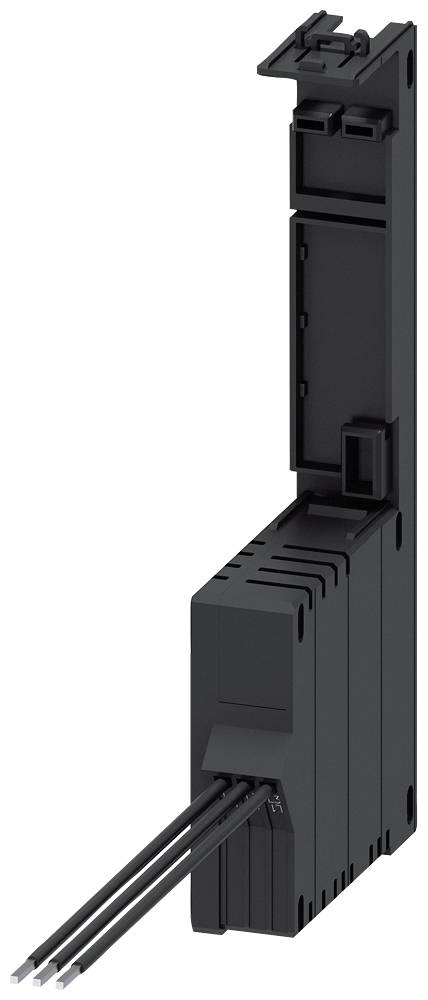

Overvoltage/overcurrent protector 3-pin 16 A 500 V Siemens 3RM19301AA
EAN:
Part number:
Item no:
Product type
Overvoltage/overcurrent protector
Nominal voltage
500 V
Number of pins
3
Nominal current - rounded value
16 A
Operating voltage
500 V
Datasheet (PDF)
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
Technical specifications
- Isolation voltage: 690 V
- Protection class: IP20
- Power loss: 3 W
- Ambient temperature: -25 °C to +60 °C
- Mounting type: Snap-on mounting
- Surge voltage resistance: 6000 V
- Max. load 25 A
- Operating frequency: 50/60 Hz
- Product type
Overvoltage/overcurrent protector
- Operating voltage
500 V
- Nominal voltage
500 V
- Number of pins
3

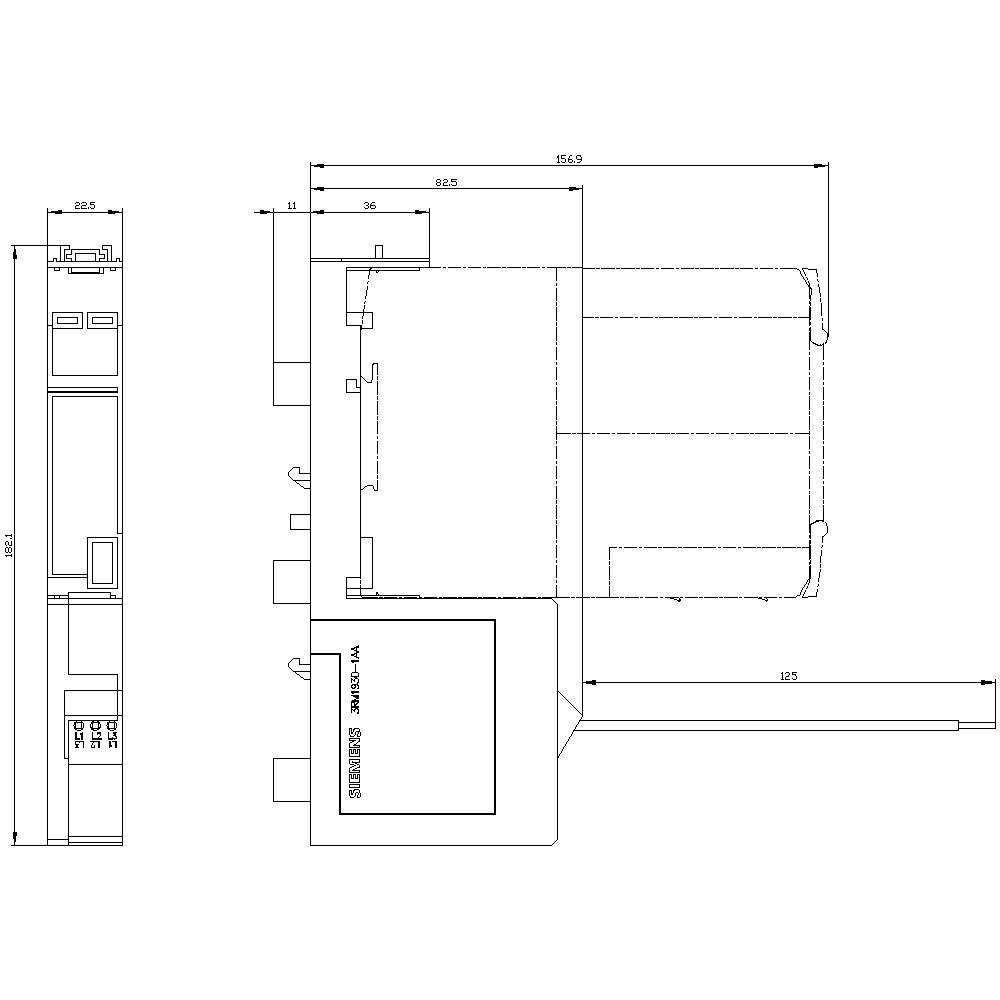

- Dim
(W x H x D) 22.5 x 182.1 x 82.5 mm
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Type
Without fuse.
- Width
22.5 mm
- Height
182.1 mm
- Depth
82.5 mm
Other
Documents & Downloads
Datasheet
Datasheet 1741018 Overvoltage/overcurrent protector 3-pin 16 A 500 V Siemens 3RM19301AA
User & Safety Instructions
User & Safety Instructions 1741018 Overvoltage/overcurrent protector 3-pin 16 A 500 V Siemens 3RM19301AA
Description
Magnet coil for contactors SIRIUS, Size S3, Spring-loaded connection technology, 48 V AC, 50 Hz !!! Phased-out product !!! Successor is SIRIUS 3RT2
