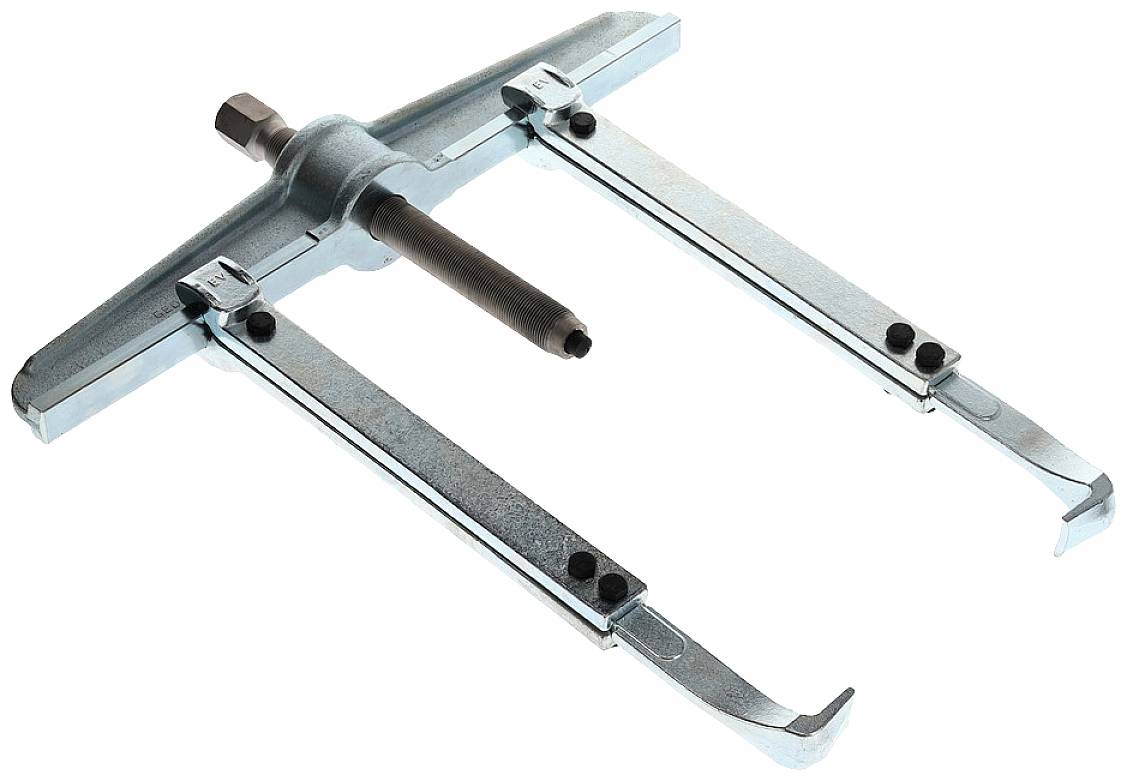

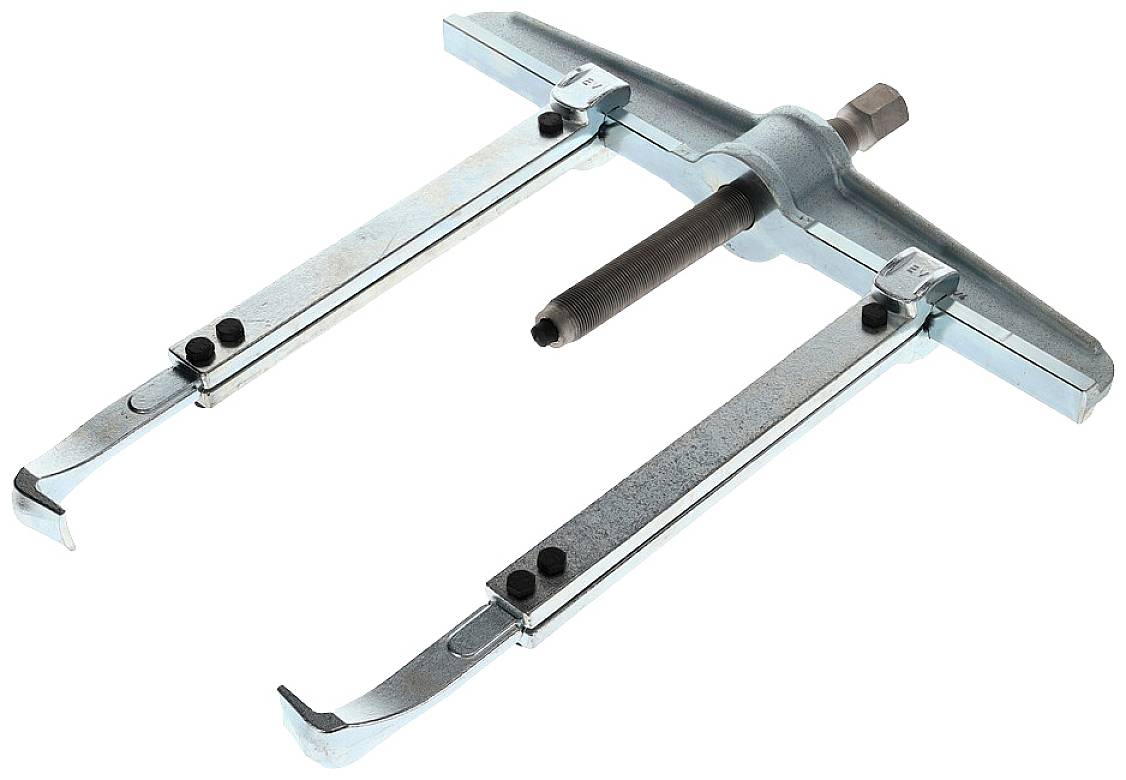

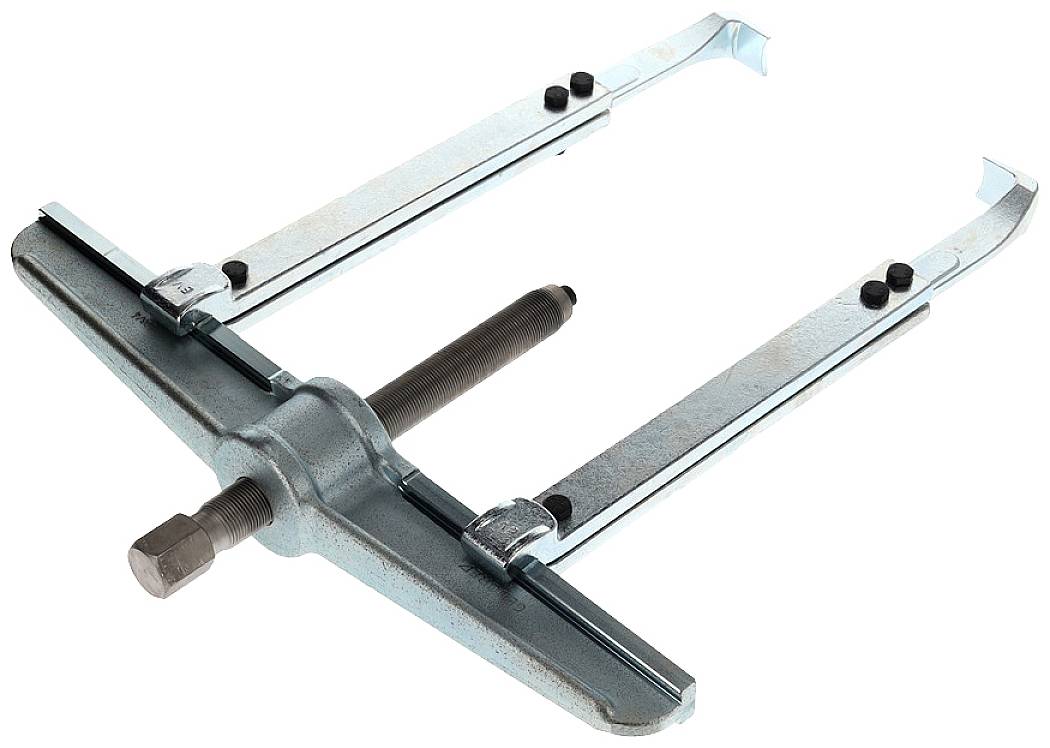

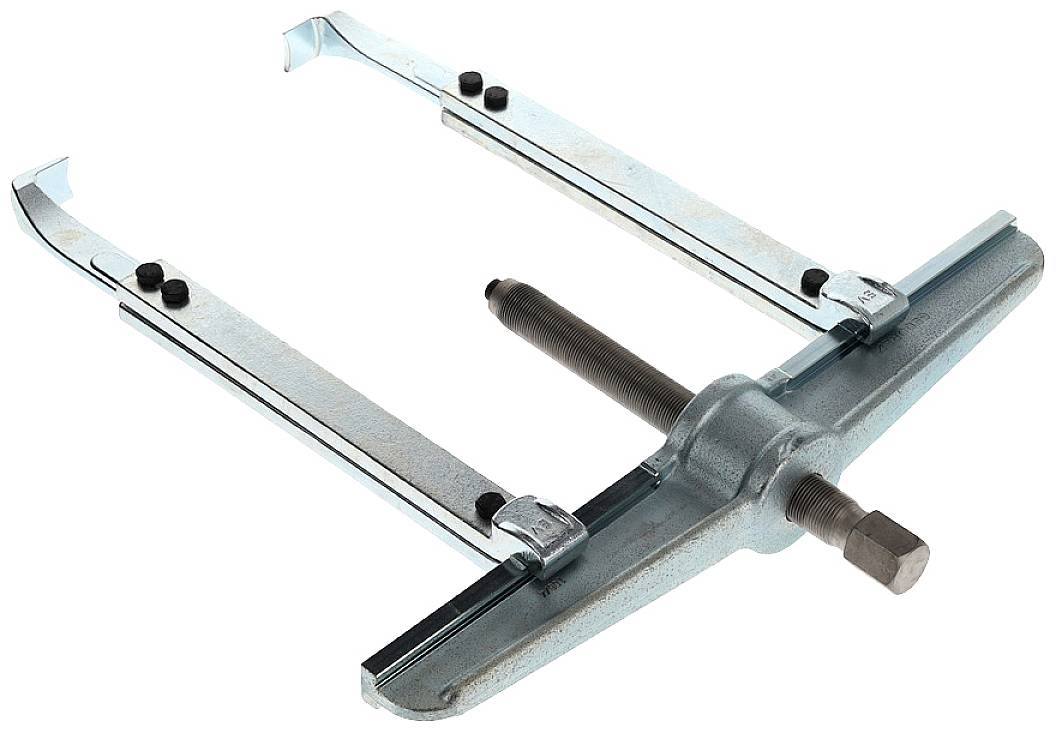

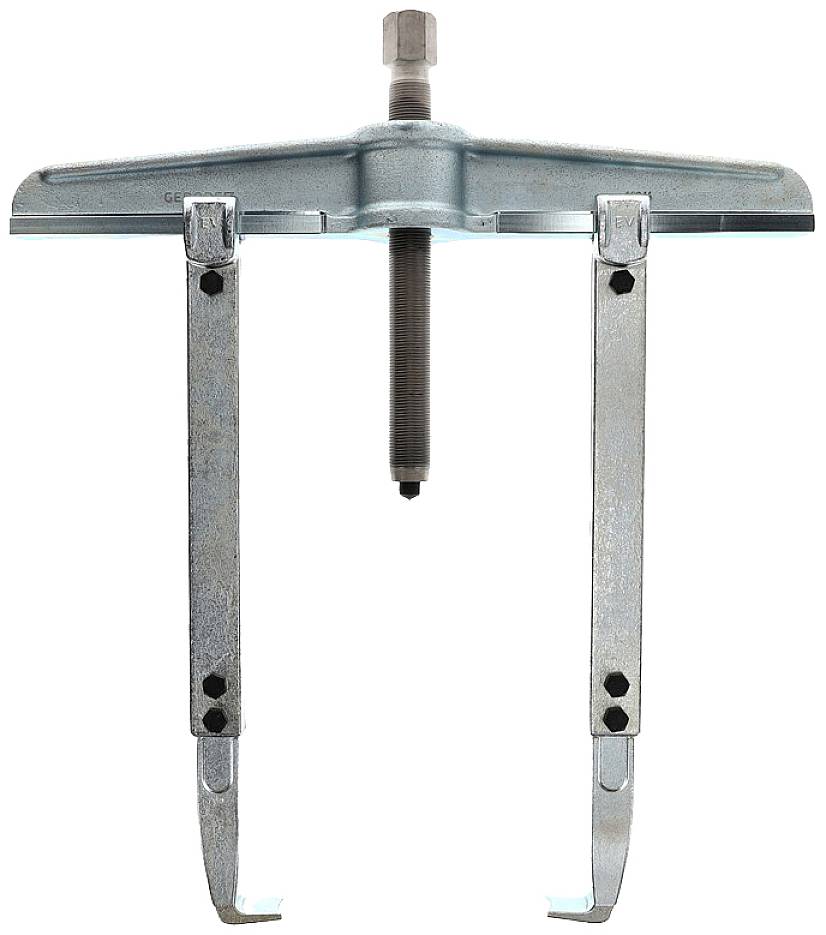

Gedore 8112460 Puller Clamping range (details) 520 mm No. of hooks 2
EAN:
Part number:
Item no:
Number
Total (€ 441.18 / piece)
€ 441.18
plus VAT.
Only 5 Piece(s) available
Technical specifications
- 1.06/4-5-GEDORE-universal puller 2-arm 520 x 500 mm
- Clamping width 520 mm outside, 185-600 mm inner
- Clamping depth 500 mm
- Strong, die-forged design
- The setting scale to evenly adjust the deduction hooks. Also allows highest withdrawal forces a centerd and power-optimized disconnect
- Extended deduction hook
- By changing the hook can be used as an external and internal puller
- Replaceable hooks for multiple clamping depth available
- Can be retrofitted with hydraulic spindle
- Traverse can be combined with other spindle/hook versions and lengths from the GEDORE Puller Kit
- Clamping range
520 mm
- Tension/pressure capacity
10 t
- Content
1 pc(s)
- Hooks
2
- Product type
Puller
- Span depth (max.)
500 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1908021 Gedore 8112460 Puller Clamping range (details) 520 mm No. of hooks 2
Information
Information 1908021 Gedore 8112460 Puller Clamping range (details) 520 mm No. of hooks 2
Description
Features
- Strong drop forged design
- Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
- Extended legs
- By reversing the legs, this tool can be used as an internal or external puller
- Extra or replacement legs increase versatility
- Upgradeable with hydraulic spindle (see table)
