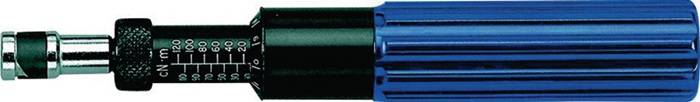

Gedore 757-01 Electrical & precision engineering Torque screwdriver 24 - 120 Nm DIN EN ISO 6789
EAN:
Part number:
Item no:
Number
Total (€ 210.08 / piece)
€ 210.08
plus VAT.
Technical specifications
- Application:
- Controlled screw suit
- Fast, controlled tightening enables series production
- Electrical, electronics and apparatus engineering industry and industrial production or in quality control
- Design:
- Adjustable torque wrench - with scale
- with 1/4" hexagonal holder for actuation of 1/4" bits according to DIN 3126 - C 6.3
- with adapter also suitable for 1/4" socket wrench inserts according to DIN 3124
- tripping accuracy: +/- 6 % tolerance of the set value
- Design according to DIN EN ISO 6789, traceable to national normal
- precision round ball coupling for the controlled right and left suit
- Precision mechanism glides clearly when the set value is reached by
- automatic resetting to the starting position
- 3 models in the range of 0.2 N
- m to 9 N
- m
- micrometer-scale division: 1 CN
- m or 0.1 N
- m
- light construction by anodized aluminum handles
- Included:
- Torque wrench type 757
- 1/4" adapter drive piece (No. 757-20)
- Models No. 757-06/-09 with additional cross-grip for easier work
- Test certificate according to DIN EN ISO 6789
- Delivery in sturdy cardboard
- Product type
Torque screwdriver
- Range of use
Electrical & precision engineering
- Drive
1/4"
- Size
1/4"
- Torque (min.)
24 Nm
- Torque (max.)
120 Nm
- Tolerance ±
6 %
- Nm graduation
0.1 Nm
- Length
169 mm
- Material
Aluminium
- Material properties
anodised
- DIN standard
DIN EN ISO 6789
- Screwdriver features
calibrated
- EN standard
EN ISO 6789
ISO standards
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1909569 Gedore 757-01 Electrical & precision engineering Torque screwdriver 24 - 120 Nm DIN EN ISO 6789
Information
Information 1909569 Gedore 757-01 Electrical & precision engineering Torque screwdriver 24 - 120 Nm DIN EN ISO 6789
Description
Features
- Use:
- Controlled screw tightening in the range 24 cN
- m - 9 N
- m
- High-speed, controlled tightening enables serial production
- Electrical and electronic hardware industry, instrument-making industry and industrial manufacturing or in quality control Features:
- Adjustable torque screwdriver with scale
- With 1/4" female hexagon drive for use with 1/4" hexagon bits as per DIN 3126 - C 6.3
- With adaptor also suitable for 1/4" square drive sockets as per DIN 3124
- Working accuracy: +/- 6 % tolerance of the set torque
- Acc. to DIN EN ISO 6789, traceable to national standards
- Precision radial ball clutch and cam design for controlled bi-directional tightening
- Precision mechanism slips very noticeably through when set torque is reached
- Automatic resetting to the starting position
- Locking of the value by means of an adjusting knob
- 3 models in the range 24 cN
- m to 9 N
- m
- Micrometre scale graduation: 1 cN
- m / 0.1 N
- m
- Lightweight construction by virtue of anodised aluminium handgrips Scope of delivery:
- Torque screwdriver type 757

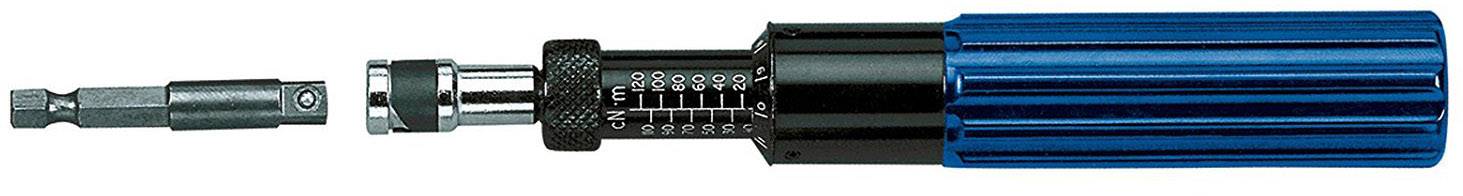

- 1/4" square/hexagon drive adaptor (no. 757-20)
- Models 757-06/-09 with additional sliding T-bar for ease of use
- Test certificate acc. to DIN EN ISO 6789
- Delivered in sturdy cardboard packaging
