Buy Glass fibre tester 4956036 Fluke Networks FI2-7000 INTL

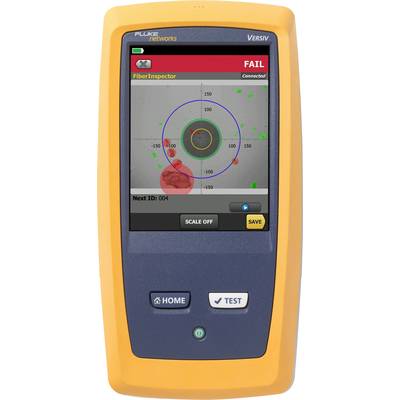

The image shows a handheld device named 'FiberInspector' displaying a test status of 'FAIL'. A graphical diagram is visible on the screen.

Various network testing devices placed on a table with a bag, cables, a manual, and accessories.

A yellow electronic testing device with a screen displays 'PASS'. Beside it are an optical probe and four small accessory parts.

A cable tester with a screen displays 'FAIL' for the fibre network inspection. A connected test probe lies beside it.

A person is testing fibre optic cables with a handheld measuring device on a table. The device is displaying test results. Cables are coiled nearby.

A person is holding a testing device in a yellow casing with a display and a connected blue tool probe used for fibre optic tests.

1/6

Fast track dispatch on Wed, 5 Aug

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 5,301.68 / piece)

€ 5,301.68

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Highlights & Details

Glass fiber certification FiberInspector Pro FI 2-7000 INTL

Technical specifications

Lithium-ion battery pack, 7.2 Volt
Operating duration: 11 h with mounted inspection probe
Specifications of the inspection probe: 2 M-pixel blue LED
Light source: Blue LED
Power source: Versiv Mainframe
Horizontal field of view: 425 µm
Field of view vertical: 320 µm
Minimum recognizable particle size 0.5 µm
Dimensions: 171 x 35 mm (without adapter tip)
Weight: 200 g

Product type: Glass fibre tester

Optical display: Yes

Dim: (L x W x H) 279 x 133 x 67 mm

Weight: 1.28 kg

Width: 133 mm

Height: 67 mm

Length: 279 mm

Type: FI2-7000 INTL

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1719081 Glass fibre tester 4956036 Fluke Networks FI2-7000 INTL

Description

The Fluke Networks FI 2-7000 INT FiberInspector™ Pro is a glass fiber test probe for testing and certification of endflachen in 2 seconds, so that you can do this task already on the first attempt. The glass fiber test probe provides with its automatic Pass/Fail certification that when checking the glass fibers do not appreciate more is required. In this way, each to a specialist for glass fibers.

This text is machine translated.

Features

Graphical display of problem areas due to impurities, depressions, chippings and scratches
Eliminate human subjectivity of measurements of Endflachen
Storage of views of endflachen during the certification

Scope of delivery

Li-Ion rechargeable battery pack
Versiv-Mainframe
USB video probe FI-1000
4 tips in one box (LC-Adapter, FC/SC-flange adapter, 1.25 and 2.5 mm universal adapter)
Blind module for the protection of the rear Mainframe Connection
Charging power supply
Power cord
Shoulder strap
USB-interface cables
LinkWare software on CD
User manual on CD
Quick guide
Padded carrying case.
