Hager FWB63S FWB63S Field distributor Surface-mount, Flush mount, Semi-recessed No. of partitions = 216 No. of rows = 18
EAN:
Part number:
Item no:
Product type
Field distributor
No. of partitions
216
No. of rows
18
Mounting type
Surface-mount
Flush mount
Semi-recessed
Width
800 mm
Datasheet (PDF)
Number
Total (€ 931.93 / piece)
€ 931.93
plus VAT.
Only 9 Piece(s) available
Highlights & Details

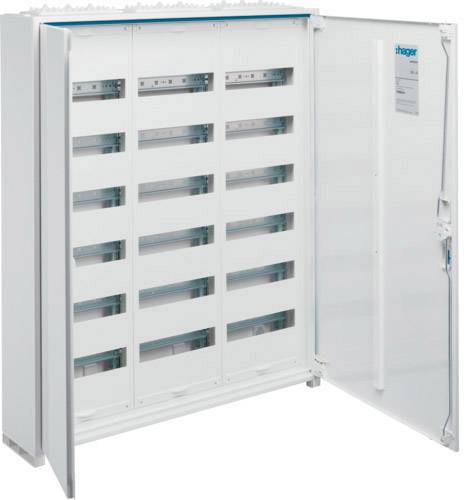

HAGER FWB 63S field distributor
- With Stahlgehaue
- Incl. quick connect terminals
- Lead-sealable
Technical specifications
- IP44
- Product type
Field distributor
- No. of partitions
216
- with PE and N terminals
Yes
- No. of rows
18
- Mounting type
Surface-mount
Flush mount
Semi-recessed
- Factory colour
White
- Width
800 mm
- Height
950 mm
- Dim
(W x H x D) 800 x 950 x 161 mm
- Depth
161 mm
- Content
1 pc(s)
- Weight
0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1845393 Hager FWB63S FWB63S Field distributor Surface-mount, Flush mount, Semi-recessed No. of partitions = 216 No. of rows = 18
User & Safety Instructions
User & Safety Instructions 1845393 Hager FWB63S FWB63S Field distributor Surface-mount, Flush mount, Semi-recessed No. of partitions = 216 No. of rows = 18
Description
Field distributor AP certified according to DIN EN 61 439-1/-3, Dimension Standard DIN 43 870. For installation for devices up to 125 A, air and creepage distances according to VDE 0110/1-2. Consisting of cabinet with door made from powder-coated and branded steel plate. From cabinet width 800 mm (3 feldig) two-door assembly. A maximum of 2 feldig right doors wide. Complete cabinet with installation kit equipped with profiled rails, 7.5 mm high rails in 125 mm center-to-center distance and matching protective covers, including PE/N quick connect terminals on mounted. Cable entries up/down with removable flexible plastic flange plates, in addition interchangeable. Door with interior adjustable hinges and an opening angle of 110°. Anschlagbar doors on the right and left, tool-free replaceable door stop. Door Latch as standard with three-point rod lock and sealable folding handle. Exchangeable lockable locking systems and doors, see accessories.
