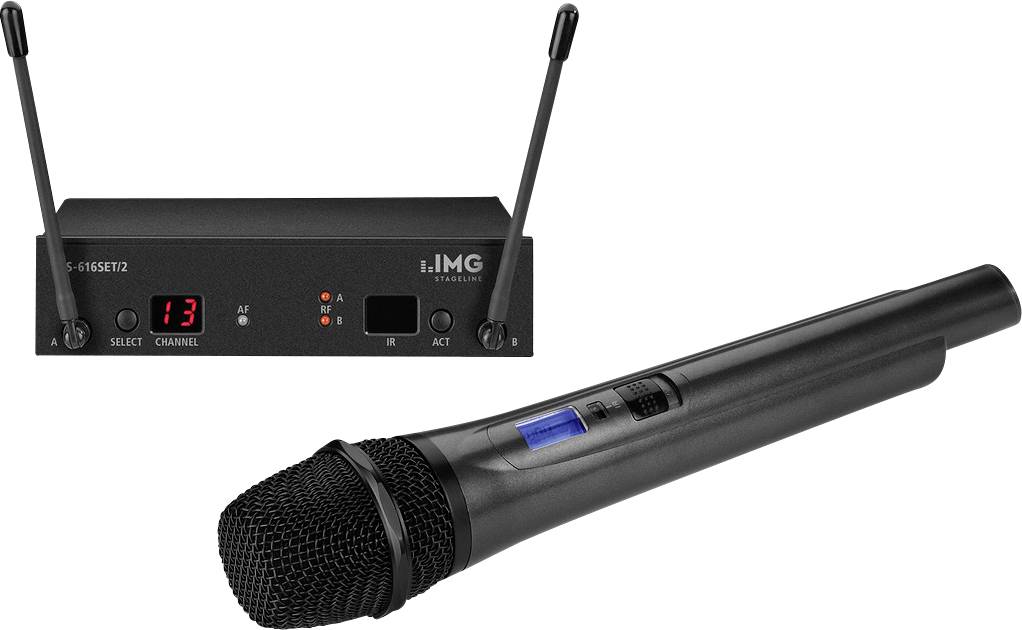

Handheld Wireless microphone set IMG Stageline TXS-616SET/2 Transfer type (details):Wireless Steel enclosure
EAN:
Part number:
Item no:
Datasheet (PDF)
10 Piece(s)
Sales and shipping:
Number
Total (€ 205.87 / piece)
€
Only 10 Piece(s) available
Highlights & Details
Multi-frequency microphone system with UHF PLL technology
- 1 hand-held microphone transmitter, 1 receiver, 1 plug-in power supply
- True diversity system
- 80 selectable UHF channels (672,000-691,750 MHz)
- ACT function for transmitting the selected frequency to the handheld microphone via infrared signal
- This text is machine translated.
Technical specifications
- Carrier frequency range 672-692 MHz
- Audio frequency range 50 - 18,000 Hz
- Channels: 1
- Dynamic range 120 dB
- RF signal-to-noise ratio 105 dB
- Wide transmitters 52 mm
- Height of transmitter 52 mm
- Deep transmitter 275 mm
- Weight transmitter 235 g
- Audio signal receiver: 350 mV/10 kΩ (jack), 25 mV/10 kΩ (XLR, bal.)
- Wide receiver 152 mm
- Height receiver 38 mm
- Receiver depth 120 mm
- Receiver weight 482 g
- Receiver connections: 1 x 6.3 mm jack, unbalanced, 1 x XLR, balanced
- Type
Handheld
- Transfer type
Wireless
- Features
Steel enclosure
- Weight
235 g
- Width
52 mm
- Height
52 mm
- Length
275 mm
- Dim
(L x W x H) 275 x 52 x 52 mm
- Interfaces
XLR
- Frequency
672.000 - 691.975 MHz
50 m
- No. of frequencies (adjustable)
80
- No. of transmitters
1
- Product type
Wireless microphone set
Documents & Downloads
Datasheet
Datasheet 2355616 Handheld Wireless microphone set IMG Stageline TXS-616SET/2 Transfer type (details):Wireless Steel enclosure
Description
Features
- Automatic search function
- Control for volume and squelch
- Transmitted power on the hand-held microphone can be switched (high/low)
- Display for channel, antenna A/B, ACT status and NF audio level (receiver), channel and battery status (hand microphone)
- sturdy metal housing (receiver)
Scope of delivery
- Multi-frequency microphone system with UHF PLL technology
