Buy HELU 52951 Wire H07Z-K 1 x 1.50 mm² Dark blue 100 m

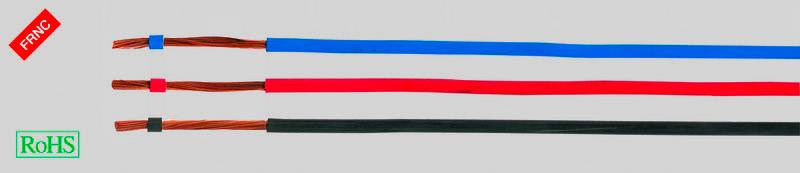

Three isolated cables in blue, red and black, against a grey background, marked with 'FRNC' and 'RoHS'.

Image similar

Product type

Wire

No. of leads

1 x

Cross section (each core)

1.50 mm²

Cable type

H07Z-K

Outside Ø

3.50 mm

Datasheet (PDF)

Fast track dispatch on Wed, 5 Aug

4 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Packaging units

Number

Set(s)

Total (1 m = € 0.72)

€ 72.26

plus VAT.

Only 4 Set(s) available

Report legal concerns

Technical specifications

Product type: Wire

No. of leads: 1 x

Content: 100 m

Cross section (each core): 1.50 mm²

Insulation material: Polyolefin

Cable features: Halogen-free
Flame-retardant
Ozone-resistant

Cable type: H07Z-K

Outside Ø: 3.50 mm

Nominal voltage: 750 V

Packaged: Yes

Halogen-free: Yes

Manufacturer part #: 52951

Factory colour: Dark blue

Core layout: Copper wire, according to DIN VDE 0295 Class 5, stranded

Sold per metre: No

Nominal voltage U0: 450 V

Test voltage: 2500 V

Cross section: 1 x 1.50 mm²

Max. temperature range (flexible installation): +90 °C

Min. temperature range (flexible installation): -40 °C

Max. temperature range (fixed installation): +90 °C

Min. temperature range (fixed installation): -40 °C

Type: H07Z-K

Documents & Downloads

Datasheet

Datasheet 1764507 HELU 52951 Wire H07Z-K 1 x 1.50 mm² Dark blue 100 m

User & Safety Instructions

User & Safety Instructions 1764507 HELU 52951 Wire H07Z-K 1 x 1.50 mm² Dark blue 100 m
