HT Instruments HT211 Handheld multimeter Digital CAT III 600 V Display (counts): 4000
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 96.63 / piece)
€ 96.63
plus VAT.
Highlights & Details

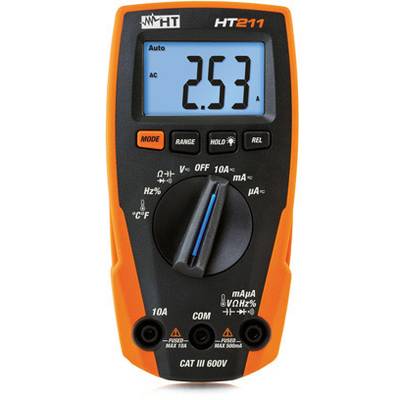

Compact digital multimeter with temperature measurement function HT 211
- CAT III 600 V
Technical specifications
- Voltage reading range DC (min.)
0.1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
0.1 mV
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
0.1 µA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
0.1 µA
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
0.1 Ω - 40 MΩ MΩ
- Reading range - capacity
0.01 nF -100 µF
- Frequency reading range
0.001 Hz - 10 MHz
- Temperature
-20 to +760 °C
- DC resistance
7.8 MΩ
- AC resistance
7.8 MΩ
- Basic accuracy
1.2 %
- Measurement type (details)
True RMS
- Frequency range
50 - 400 Hz
- Power supply (details)
9 V battery
- Height
138 mm
- Width
68 mm
- Length
37 mm
- Weight
210 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
HT211
- Display
Digital
- Display (counts)
4000
- Dim
(L x W x H) 37 x 68 x 138 mm
Documents & Downloads
Datasheet
Datasheet 1491936 HT Instruments HT211 Handheld multimeter Digital CAT III 600 V Display (counts): 4000
User & Safety Instructions
User & Safety Instructions 1491936 HT Instruments HT211 Handheld multimeter Digital CAT III 600 V Display (counts): 4000
Description
Compact digital multimeter with a large backlit LCD display, for AC/DC voltage and AC/DC current, resistance, frequency, temperature, capacity, continuity check and diode test in electrical installations with CAT III 600 V
This text is machine translated.
This text is machine translated.
Features
- AC & DC voltage of 1 mV to 600 V (1000V)
- AC & DC current 0.1 µA up to 10 A
- Resistance of 0.1 Ω to 40 MΩ
- Continuity test with buzzer
- Diode test
- Measures frequency up to 10 MHz
- Measurement of temperature up to 760°C
- Capacitance testing
- Data HOLD
Scope of delivery
- Test Leads
- K-type temperature sensor (wire probe 0.5 m)
- Protective case
- Battery
- User manual.
