inprojal elektrosysteme 9016-118.81 Flush-mount socket incl. USB-C®, incl. USB charging port, Power Delivery IP20 White
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 52.09 / piece)
€
Highlights & Details
USB-A/C socket combination, 2-way, white
- Plug & Play
- Charges up to 3 times faster than a standard PC or laptop USB-connection by QC 3.0 and PD 3.0
- Socket with increased contact protection
- Integrated overload and short-circuit protection
- Shapely structured surfaces with rounded edges
Technical specifications
- 1 x USB A Quick Charge 3.0: 5V/3.0A; 9V/2.22A; 12V/1.6/A
- 1 x USB C Power delivery 3.0: 5V/3.0A; 9V/2.22A; 12V/1.6/A
- C + A output 5.0 V; 3.0 A – 15 W max.
- Stand-by 0.3 W
- Product type
Flush-mount socket
- Light bulb features
incl. USB-C®
incl. USB charging port
Power Delivery
- Outlets
1
- Nominal voltage
230 V
- Nominal current
16 A
- Mounting type
Recess-mount
- Recess diameter
50 mm
- Mounting depth
41 mm
- Factory colour
White
IP20
- Dim
(L x W x H) 113 x 49 x 60 mm
- Length
113 mm
- Width
49 mm
- Height
60 mm
- Content
1 Set
Documents & Downloads
Datasheet
Datasheet 3058931 inprojal elektrosysteme 9016-118.81 Flush-mount socket incl. USB-C®, incl. USB charging port, Power Delivery IP20 White
User & Safety Instructions
User & Safety Instructions 3058931 inprojal elektrosysteme 9016-118.81 Flush-mount socket incl. USB-C®, incl. USB charging port, Power Delivery IP20 White
Description

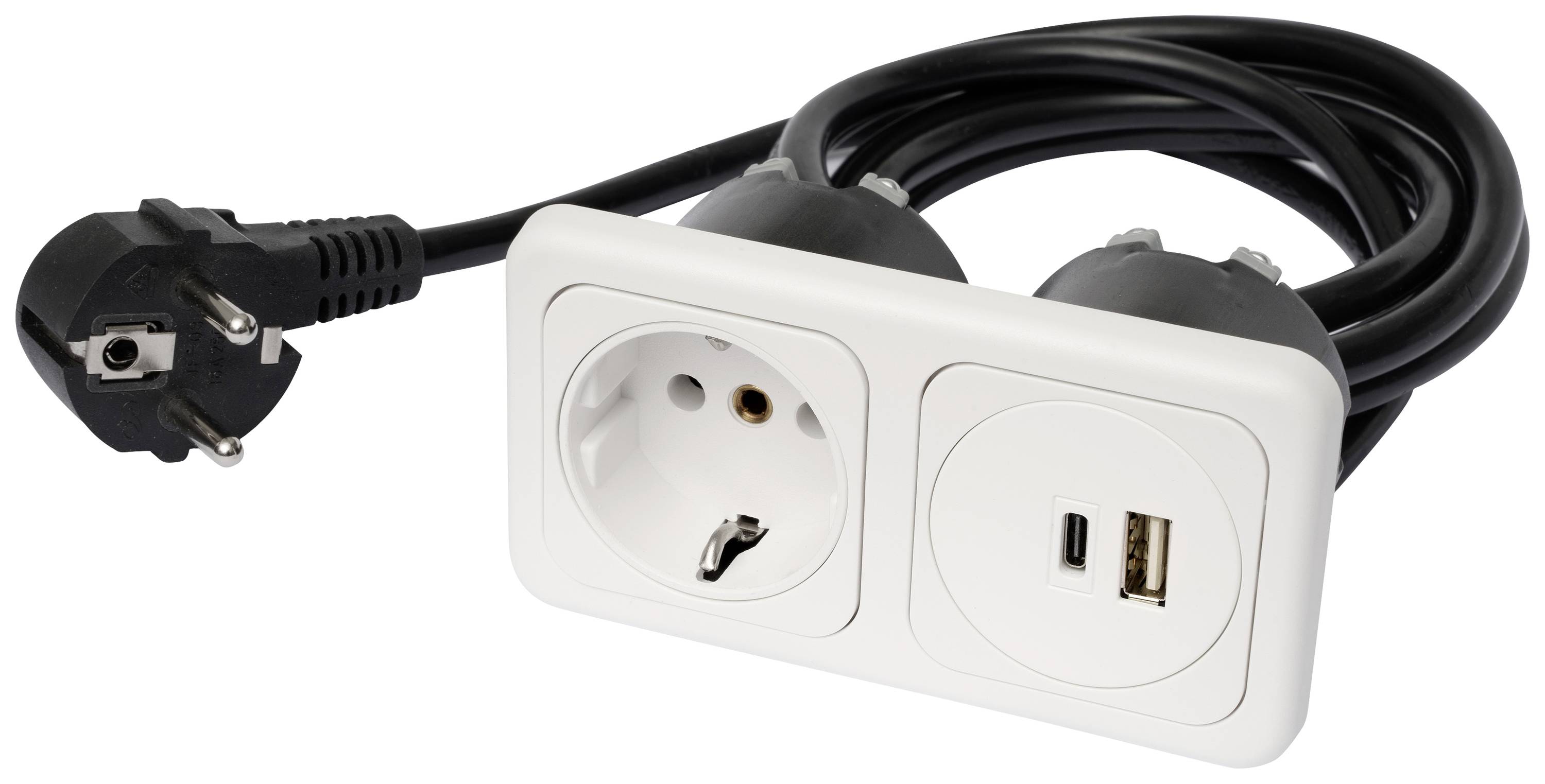

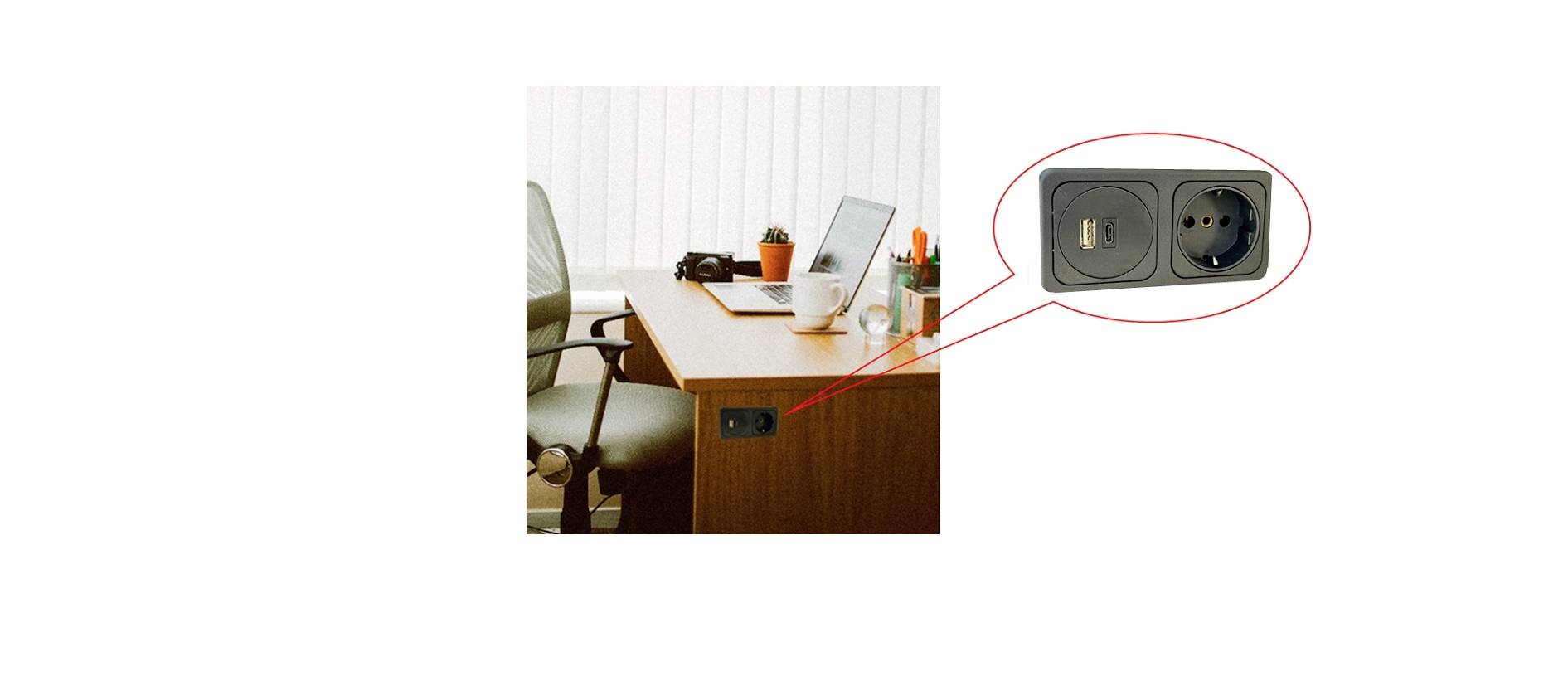

USB A/C sockets for charging smartphones, tablets, power banks and mobile devices, and earthing contact socket outlets for additional electrical devices, with extended touch protection. The entire unit is secured at the rear with a touch-protection cap and a 2 m cable is ready to plug in. Ideal for installation in front of furniture, bedside tables, kitchen cabinets, workbenches or desks
This text is machine translated.
This text is machine translated.
Scope of delivery
- USB-A/C socket combination, 2-way, white
- User manual.
Hints
IP20, for dry rooms only
