Joy-it JT-RD6006-C-B Bench PSU (adjustable voltage) 0 - 60 V 0 - 6 A 360 W remote controlled, programmable No. of output
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 217.65 / piece)
€ 217.65
plus VAT.
Only 7 Piece(s) available
Highlights & Details
LABORATORY POWER SUPPLY RD6006-C-B, BLACK EDITION, COMPLETE DEVICE, 0-60V, 6A
- No. of outputs 2 x
- 0 - 60 V / 0 - 6 A
- 360 W
- remote controlled, programmable
Technical specifications
- Voltage resolution 0.1 V
- Current resolution 0.01 A.
- Measurement range electr. Charging 0 - 9999.99 Ah
- Energy measurement range: 0 - 9999.99 Wh
- Remaining ripple 100mV Vpp
- Response time in constant voltage mode 2ms @ 0.1 bis 4A
- Sensor temperature Detection range -10 °C to 100 °C.
- Operating mode: Step-down operation
- Battery charging function
- Overcurrent protection / overvoltage protection adjustable
- Integrated RTC
- Input voltage up to 70 Volt
- Output voltage up to 60 Volt / 6A
- Type
JT-RD6006-C-B
- Product type
Bench PSU (adjustable voltage)
- No. of outputs
2 x
360 W
- Technology
SMPSU
- Features
remote controlled
programmable
- Dim
(L x W x H) 310 x 87 x 173 mm
Manufacturer's standards (no certificate)
- Weight
3200 g
- Output voltage (max.)
60 V
- Output voltage (min.)
0 V
- Max. output current
6 A
- Output current (min.)
0 A
- Width
87 mm
- Height
173 mm
- Length
310 mm
- Residual ripple
100 mVpp
- Max. temperature
40 °C
- Min. temperature
-10 °C
Documents & Downloads
Datasheet
Datasheet 3164607 Joy-it JT-RD6006-C-B Bench PSU (adjustable voltage) 0 - 60 V 0 - 6 A 360 W remote controlled, programmable No. of output
User & Safety Instructions
User & Safety Instructions 3164607 Joy-it JT-RD6006-C-B Bench PSU (adjustable voltage) 0 - 60 V 0 - 6 A 360 W remote controlled, programmable No. of output
Description

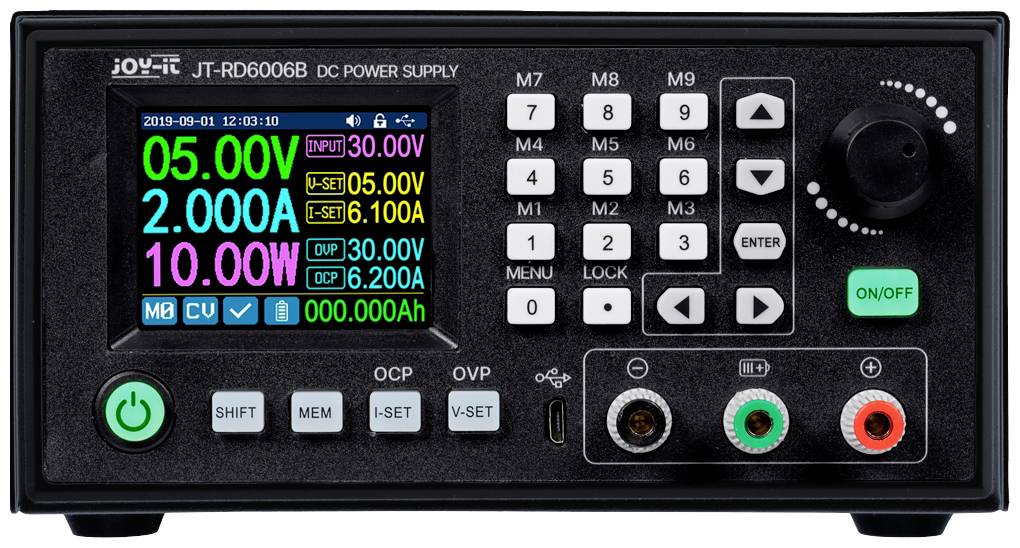

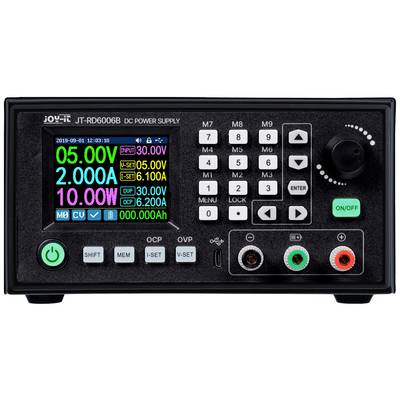

With the RD6006-C-B "Black EDITION" a reliable and powerful laboratory power supply is available to you. With an output voltage range of 0 - 60 V and an output of 0 - 360 W you are in a position to master all kinds of projects. The compact design and the user-friendly operation make the RD6006 an excellent choice for each application area. The 9 memory locations enable you to change quickly and easily between the different settings. Through the USB-interface and through integrated WiFi-module the RD6006 can be operated via software. In addition, the device has various protection and limiting functions such as constant voltage operation, constant current operation, overvoltage protection, over current protection and replaceable fuses on the board.
This text is machine translated.
This text is machine translated.
Features
- Battery charging function (incl. Charging cable)
- USB and WiFi
- Value input via keypad
- Adjustable over current protection
- Overvoltage protection adjustable
Scope of delivery
- JT-RD6006-C-B, MAINS CABLE
- Battery charging cable
- User manual
