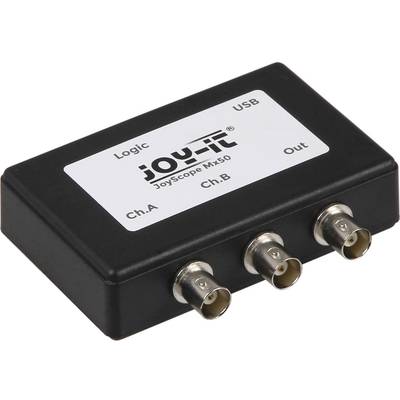

'Joy-IT JoyScope MX50' Logic Analyser with USB connection, two BNC channels (Ch.A, Ch.B) and one output, for analysing electronic signals.

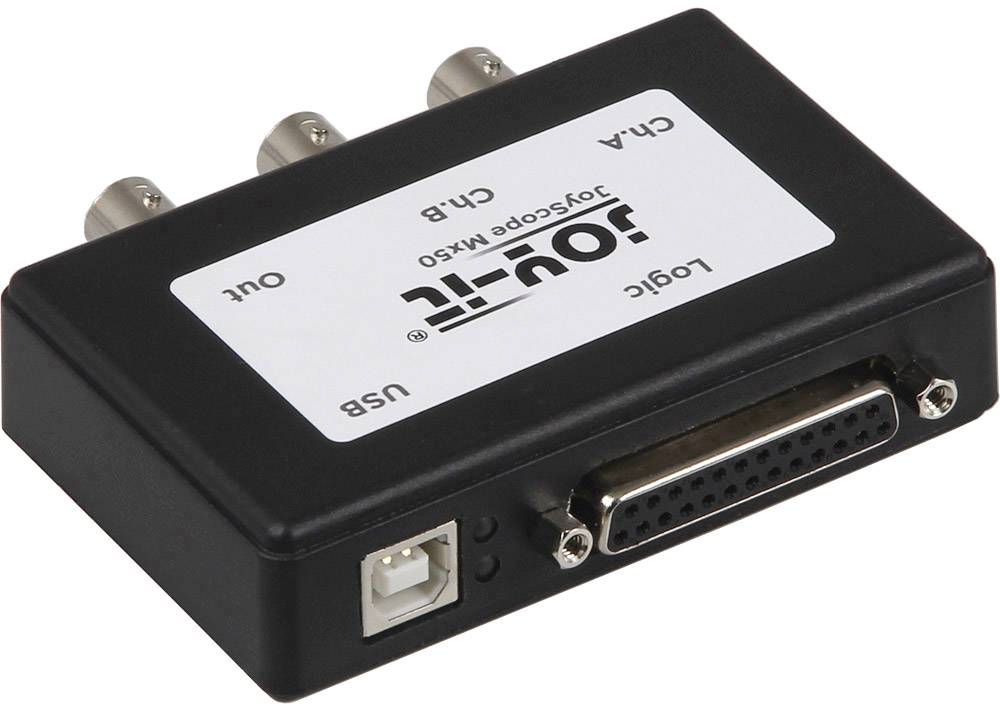

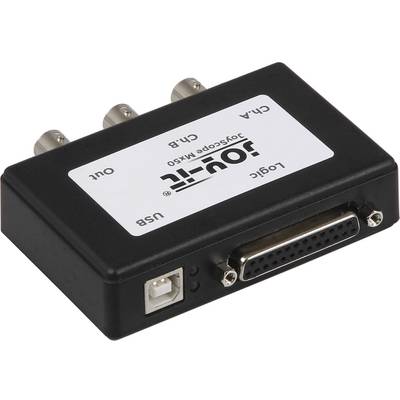

External logic analyser with multiple interfaces, including USB and channels. Used for digital signal monitoring and analysis.

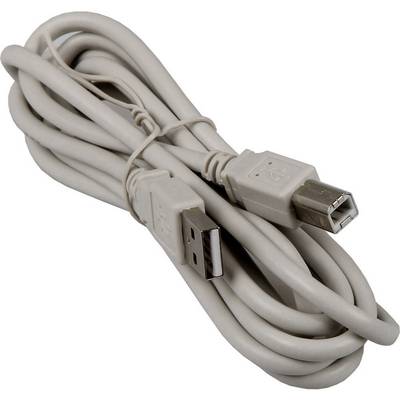

A coiled, grey USB cable with a USB-A plug on one side and a USB-B plug on the other side.

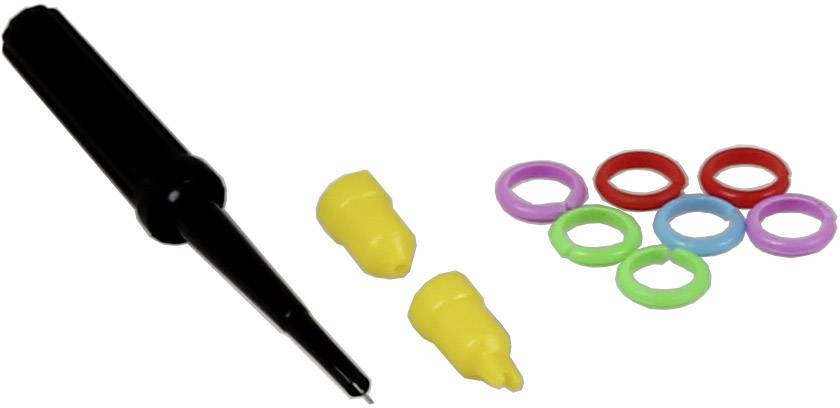

A black test probe holder, two yellow caps and eight coloured rings (purple, red, green, blue) are lying on a white surface.

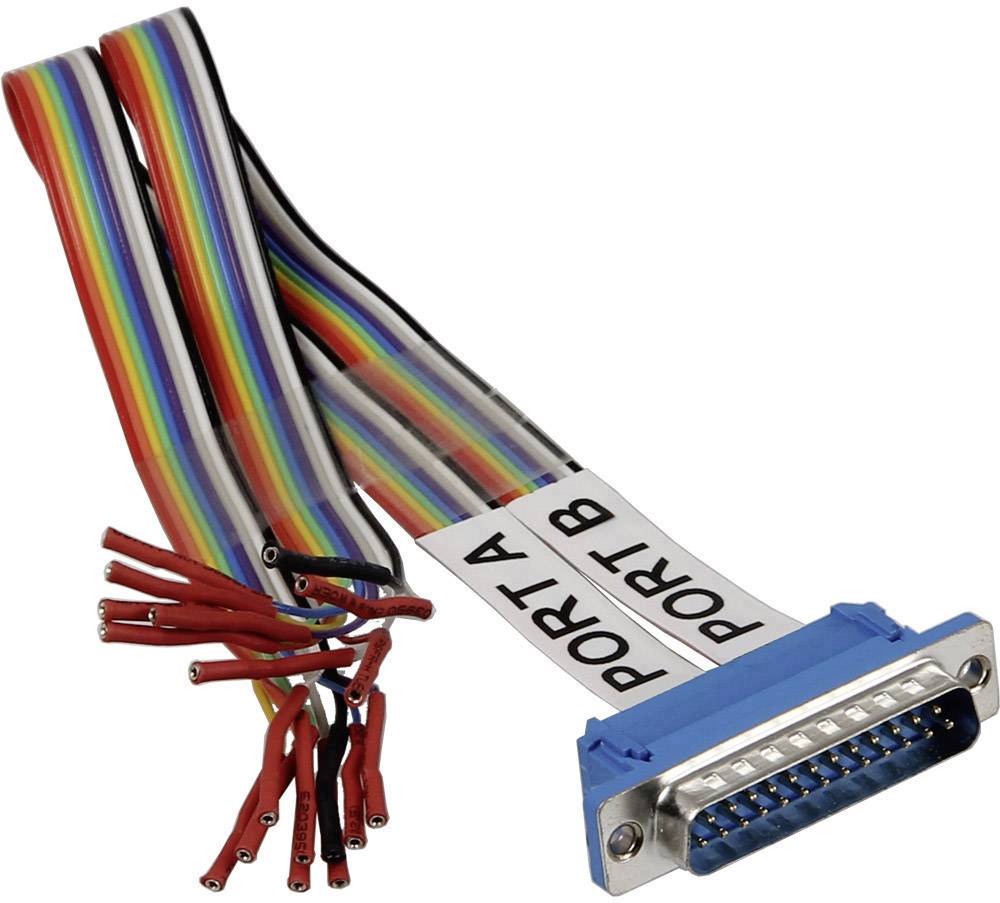

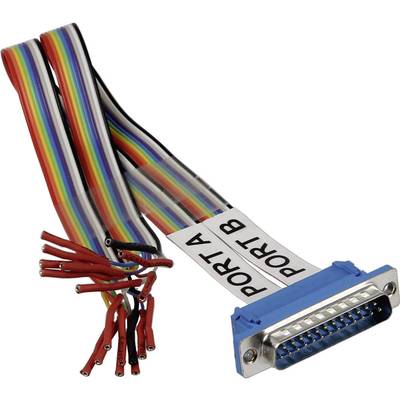

A blue connector with multiple colourful wires and labels 'PORT A' and 'PORT B'.

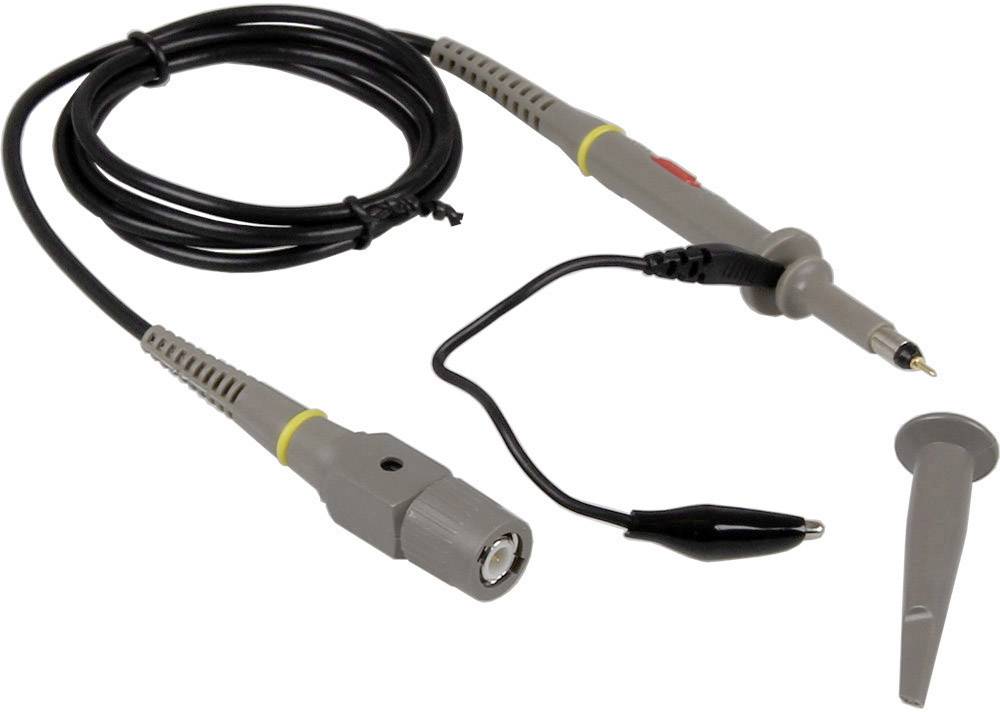

Oscilloscope probe with detachable hook, BNC connector and cable. Used for measuring electrical signals in circuits.

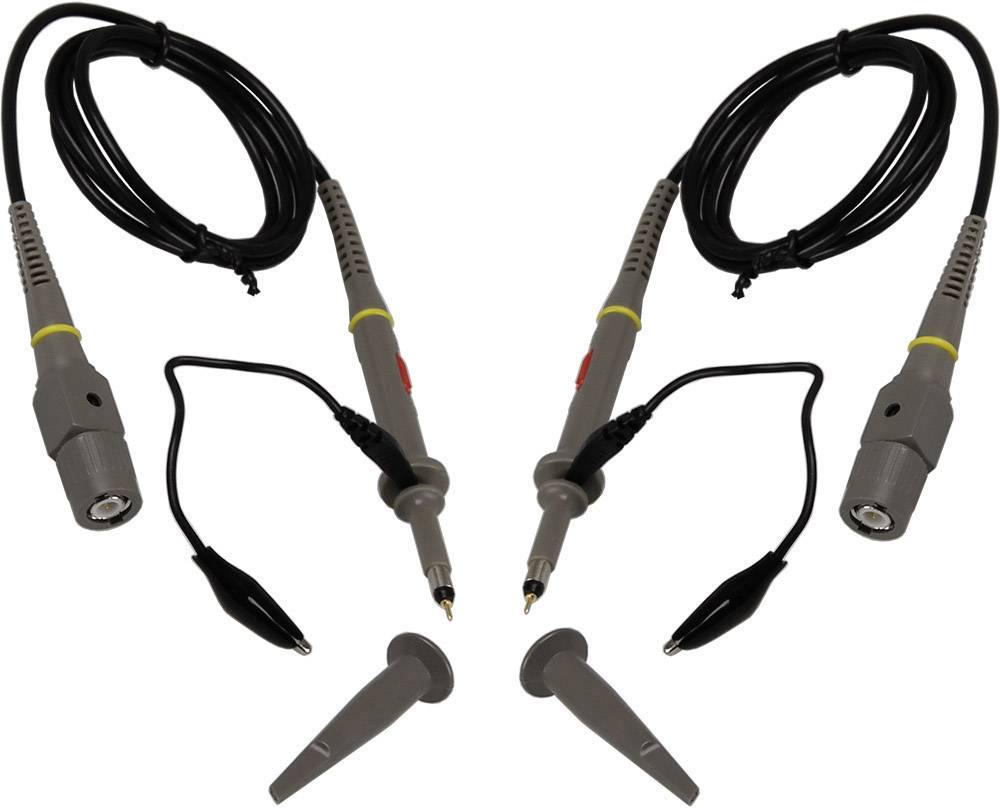

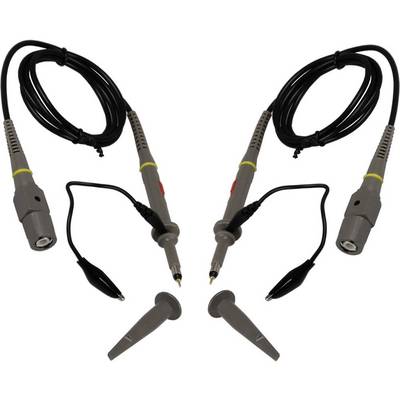

Two oscilloscope probes with crocodile clips and interchangeable tips, suitable for precise electronic measurements.

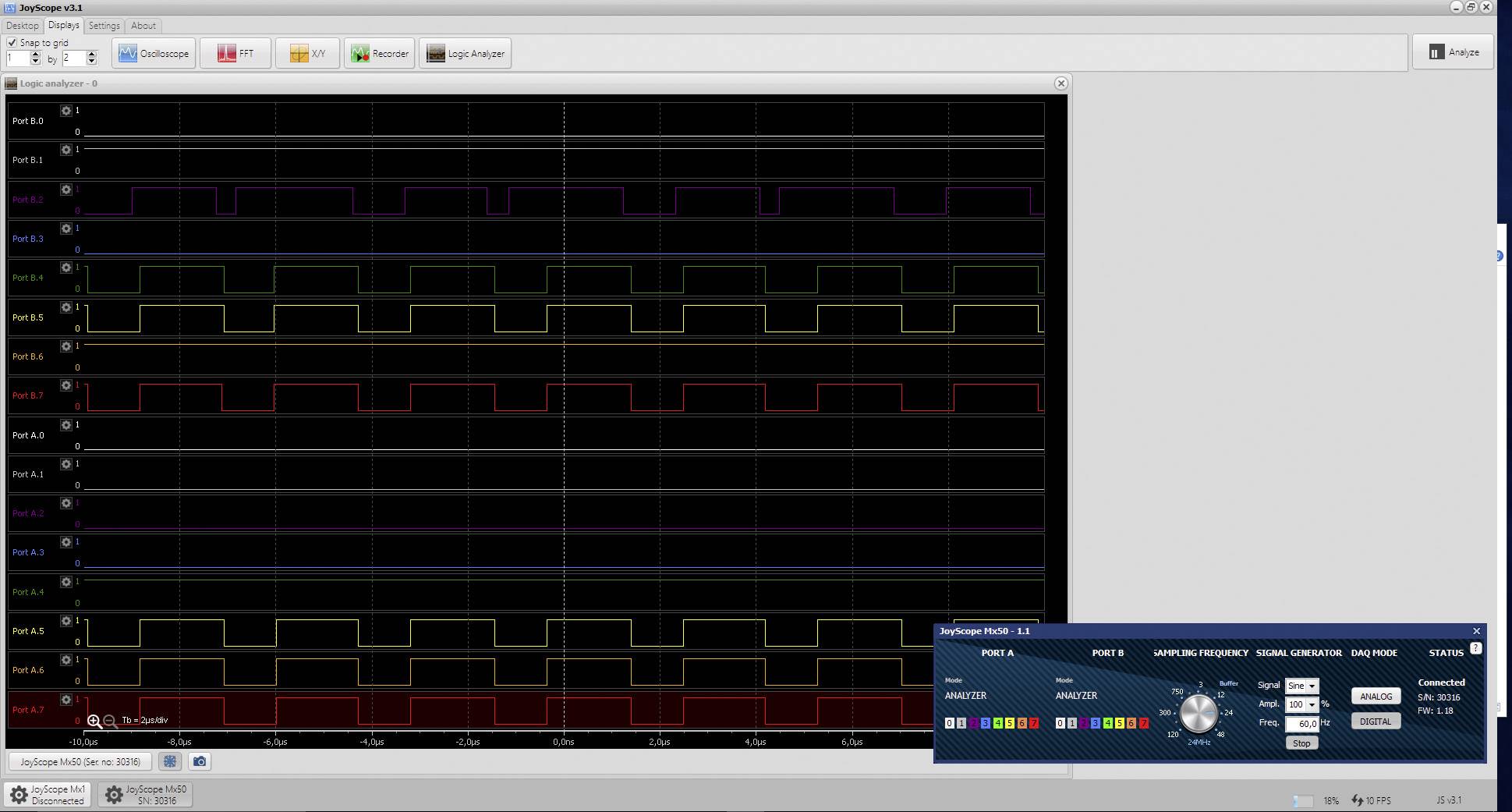

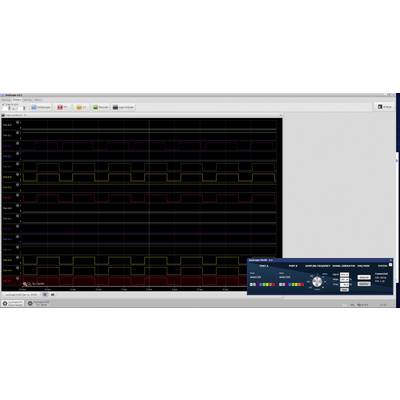

A screen displays a digital oscilloscope with multiple coloured waveforms over time. Control settings are located in the bottom right.

A simple software screen displays a plug-in interface with sliders for frequency, resonance, and modulation.

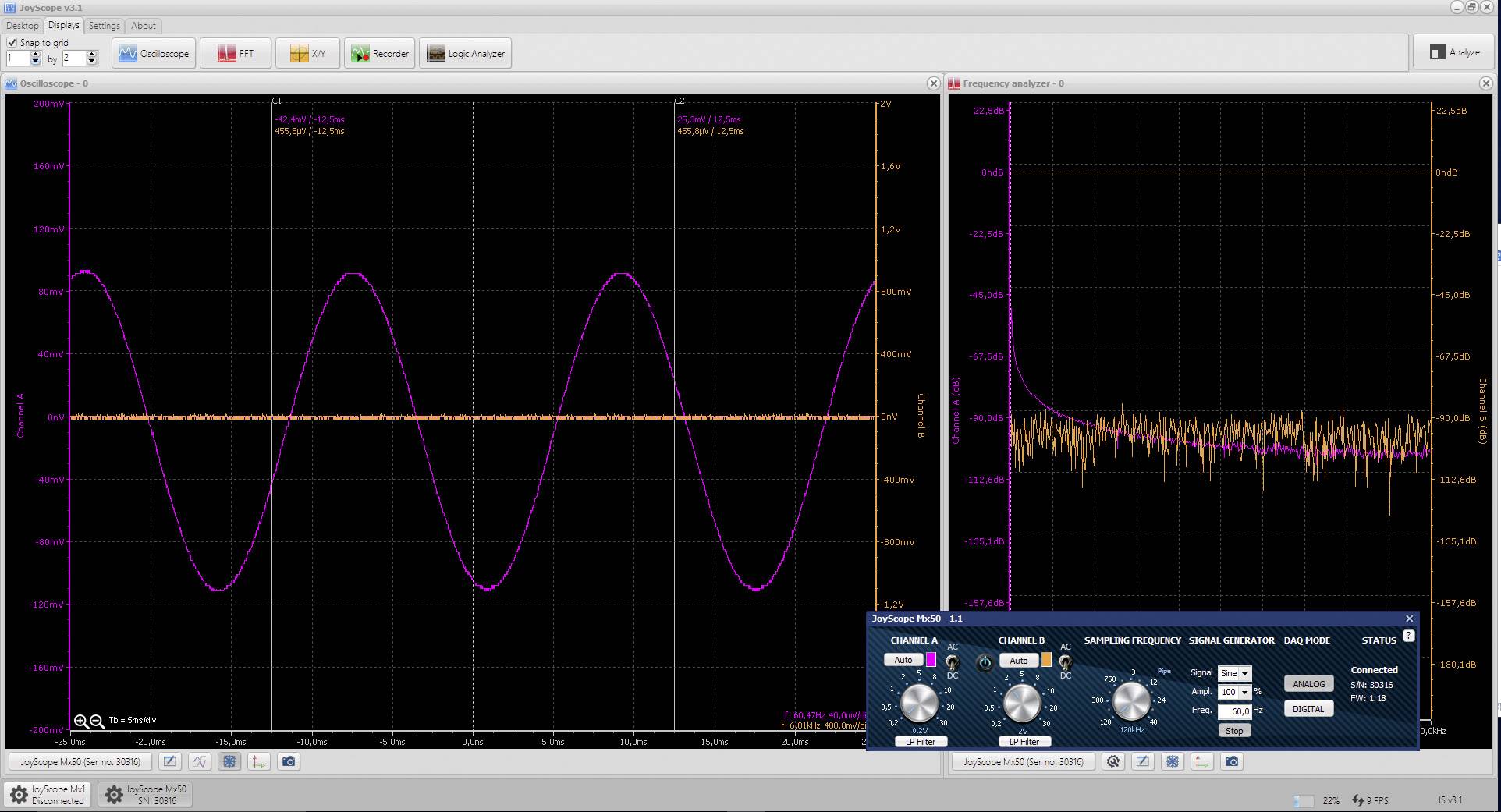

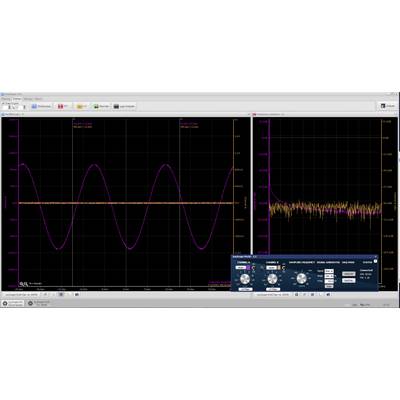

A screen displays an oscilloscope program with two diagrams. On the left: a sine wave and a straight line. On the right: a frequency diagram with noise. At the bottom: control settings.

1/10

Fast track dispatch on Fri, 11 Sep

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 109.24 / piece)

€ 109.24

plus VAT.

Only 4 Piece(s) available

Report legal concerns

Highlights & Details

Mixed Signal Oscilloscope Scope Mega 50

15 MHz
No. of analogue inputs 2

Technical specifications

Product type: USB Oscilloscope

Bandwidth: 15 MHz

Resolution: 8 Bit

Oscilloscope features: Digital storage (DSO)
Mixed signal (MSO)
Logic analyzer
Function generator

No. of analogue inputs: 2

: Manufacturer's standards (no certificate)

Input voltage: +/- 30 V

Dim: (L x W x H) 5 x 90 x 20 mm

Weight: 100 g

No. of digital inputs (max.): 16

Width: 90 mm

Height: 20 mm

Length: 5 mm

Interfaces: Analogue voltage
BNC plug
D-SUB socket 25-pin
USB 2.0 port B

Type: JT-ScopeMega50

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1547488 Joy-it JT-ScopeMega50 USB Oscilloscope 15 MHz 2-channel, 16-channel 8 Bit Digital storage (DSO), Mixed signal (MSO), Log

Download

Download 1547488 Joy-it JT-ScopeMega50 USB Oscilloscope 15 MHz 2-channel, 16-channel 8 Bit Digital storage (DSO), Mixed signal (MSO), Log

Description

USB PC-based Mixed Signal Oscilloscope.
Particularly energy-saving: 150mA power consumption - ideal for outdoor use.

This text is machine translated.

Features

2 channel oscilloscope
2-Channel Spectrum Analyzer
16-channel logic analyzer (with a serial interface decoding: UART, I2C, SPI) [0..5 V]
Function generator for test signals: 12.5 kHz/max. 1.8 Vpp [sine, square, triangle, saw tooth].

Scope of delivery

2 x 60 MHz probes (10:1, 1:1)
1 x 16-channel logic analyzer Clips
USB cable.

Hints

Most up-to-date and free software can be downloaded on the manufacturer's side.

System requirements

Windows ® XP SP3, Vista, Windows ® 7, 8, 32 and 64-bit 8.1,10 · 1024 × 768 @ 24-bit · Dual Core 2GHz · USB 2.0.
