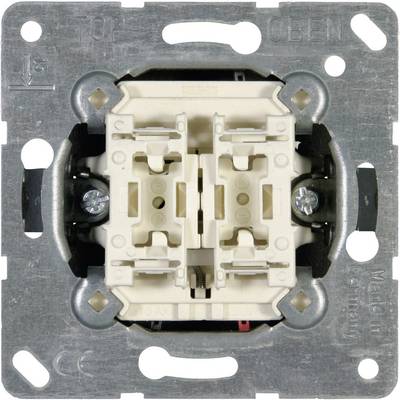

Jung Insert Shutter switch LS 990, AS 500, CD 500, LS design, LS plus, FD design, A 500, A plus, A creation, CD plus, SL
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 20.16 / piece)
€ 20.16
plus VAT.
Technical specifications
- 1poliger switch
- Type
Jalousie-push button
- Switch type function
Shutter switch
- Product type
Switch product range
- Switch type component
Insert
- Type series
LS 990
AS 500
CD 500
LS design
LS plus
FD design
A 500
A plus
A creation
CD plus
Show more
- Nominal voltage
230 V AC
- Nominal current
10 A
- Dim
(W x H x D) 71.0000 x 71.0000 x 40.0000 mm
- Content
1 pc(s)
- Depth
40.0000 mm
- Height
71.0000 mm
- Width
71.0000 mm
- Weight
100 g
250 V
Flush mounted (plaster)
Basic element
TRUE
FALSE
Push-in clamp
32 mm
10 A
Mounting with claw and screw
IP20
71 mm
71 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 625633 Jung Insert Shutter switch LS 990, AS 500, CD 500, LS design, LS plus, FD design, A 500, A plus, A creation, CD plus, SL
User & Safety Instructions
User & Safety Instructions 625633 Jung Insert Shutter switch LS 990, AS 500, CD 500, LS design, LS plus, FD design, A 500, A plus, A creation, CD plus, SL
Conformity certificate
Conformity certificate 625633 Jung Insert Shutter switch LS 990, AS 500, CD 500, LS design, LS plus, FD design, A 500, A plus, A creation, CD plus, SL
Description
With spring terminals for rigid conductors up to 2.5 mm² · Connection terminals according to DIN VDE 0632 (EN 60 669). With reverse lock (= too quickly changing the direction of rotation is securely prevented).
