Keithley 2110-240 Bench multimeter Digital CAT II 600 V Display (counts): 100000
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,083.19 / piece)
€
Highlights & Details

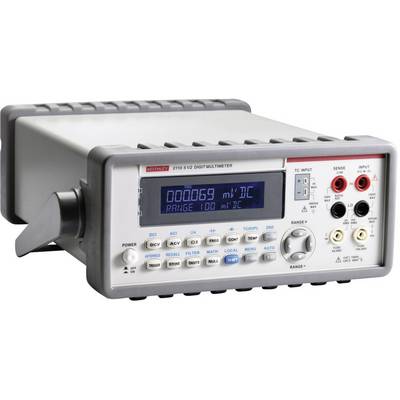

Precision desktop multimeter 2110-240
- CAT II 600V
- High resolution with 100000 counts
- Temperature measurement with TC and RTD-sensor
- USB interface
Technical specifications
- Voltage reading range DC (min.)
1 µV
- Product type
Bench multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
1 µV
- V AC reading range (max.)
750 V
- Amperage reading range DC (min.)
0.1 µA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
10 µA
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
1 mΩ - 100 MΩ
- Reading range - capacity
1 pF - 100 µF
- Frequency reading range
10 Hz - 300 kHz
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
0.0009 %
- Measurement type (details)
True RMS
- Frequency range
10 Hz - 300 kHz Hz
- Interfaces
1x USB
- Power supply (details)
230 V/AC
- Height
107 mm
- Width
256 mm
- Weight
2.23 kg
Manufacturer's standards (no certificate)
- Reading category
CAT II 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
2110-240
- Display
Digital
- Display (counts)
100000
- Dim
(W x H) 256 mm x 107 mm
Documents & Downloads
Datasheet
Datasheet 513452 Keithley 2110-240 Bench multimeter Digital CAT II 600 V Display (counts): 100000
User & Safety Instructions
User & Safety Instructions 513452 Keithley 2110-240 Bench multimeter Digital CAT II 600 V Display (counts): 100000
Information
Information 513452 Keithley 2110-240 Bench multimeter Digital CAT II 600 V Display (counts): 100000
Description
Precision table multimeter with a user-friendly user interface and the possibility of the measuring device via the interface to control, to read and evaluate. The high display resolution of 5.5 points the most precise measurements and through the fast measurement rate, even the shortest transients.
This text is machine translated.
This text is machine translated.
Features
- Measurement functions: voltage (DC/AC True RMS)
- Current (DC/AC True RMS)
- Resistance
- Capacitance
- Diode testing
- Continuity testing
- Temperature:
- Frequency and Period
- 7 mathematical functions.

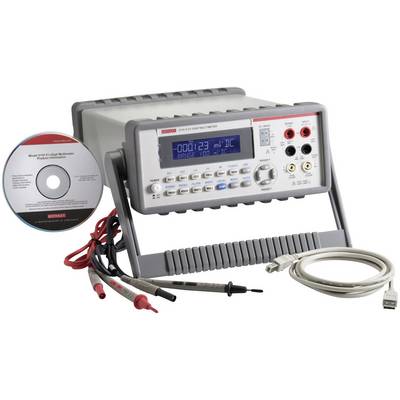

Scope of delivery
- Test Leads
- CD-ROM with instructions for use, LabView driver and measuring software KI-Tool/KI-Link Add-in
- Keithley I/O layer
- USB cable
- Power cord
- Factory calibration certificate.
