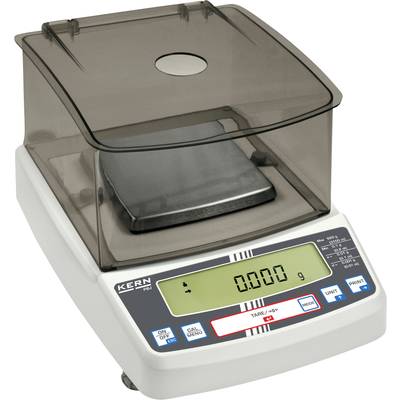

Kern PBJ 620-3M Precision scales Weight range 620 g Readability 0.001 g via PSU Silver
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,953.78 / piece)
€ 1,953.78
plus VAT.
Only 7 Piece(s) available
Highlights & Details
Precision balance with type approval, class II 0,001 g : 620 g
- Multifunctional laboratory balance with single-cell weighing system and EC type approval [M]
Technical specifications
- Weight range
620 g
- Factory colour
Silver
- Power supply (details)
220 V - 240 V/AC 50 Hz
- Dim
(L x W x H) 330 x 210 x 70 mm
- Weight
4.2 kg
- Height
70 mm
- Length
330 mm
- Width
210 mm
- Calibratable
Yes
Manufacturer's standards (no certificate)
- Display
Digital
- Weighing plate
Stainless steel
- Features
Calibratable
Counting
- Power supply (LOV)
via PSU
- Type
PBJ 620-3M
- Top plate (length)
112 mm
- Readability
0.001 g
- Reproducibility
0.001 g
- Top plate (width)
112 mm
- Weighing plate dimensions
112 × 112 mm
- Product type
Precision scales
Documents & Downloads
Datasheet
Datasheet 755942 Kern PBJ 620-3M Precision scales Weight range 620 g Readability 0.001 g via PSU Silver
User & Safety Instructions
User & Safety Instructions 755942 Kern PBJ 620-3M Precision scales Weight range 620 g Readability 0.001 g via PSU Silver
Description
Justierautomatik at PBJ-only: internal temperature changes or time-controlled according to defined intervals - only PBS: Adjustment program CAL to adjust the accuracy, external test weights against more price-metal casing: robust and stable-dosing cup: high stability mode and other filter settings can be selected car with tolerance range (programd): Enter a upper/lower limit. A visual signal supports the portioned, dosing and sorting-comfortable sum of individual measurements-comfortable recipe picking/document with combined tare/Print function. In addition, the mix ingredients of the recipe are numbered automatically and with number/weight value expressed-identification number: 4-digit, freely programmable, is expressed in the justierprotokoll automatic data output to the PC/printer after each standstill of the horizontal wind protection as a standard, for models with Readability d = 0.001 g, 180 x 193 x 87 mm single weighing room wxdxh: - fully automatic production of the load cell Cell top technology in one piece-stable temperature characteristics - Short Settling Time: 3 sec-high mechanical robustness - High Corner load safety
This text is machine translated.
This text is machine translated.
Features
- only PBJ: Automatic internal adjustment in the case of a change in temperature or time-controlled at defined intervals
- only PBS: Adjusting program CAL for quick setting of the balance accuracy, external test weights at an additional price
- Metal housing: robust and sturdy
- Dosage aid: High-stability mode and other filter settings can be selected
- Weighing with tolerance range (checkweighing): Input of an upper/lower limit value. A visual signal assists with portion division or grading
- Totalizing of individual weighing results
- Simple recipeweighing and documenting with a combined tare/print function. In addition, the mixing ingredients for the recipe are numbered automatically and printed out with their corresponding number and weight value
- Identification number: 4 numeric positions, printed on calibration protocol
- Automatic data output to the PC/printer every time the balance is steady
- Draft shield standard, on all models with readout d = 0,001 g, weighing space WxDxH 180x193x87 mm| Single-cell advanced technology:
- Fully automatic manufactured weighing cell from one piece of material
- Stable temperature behaviour
- Short stabilisation time: 3 sec
- Shock proof construction
- High corner load performance
Hints
The selected product is a calibration approved part.If there is a need to be calibrated according to EU directives, please order the conformity assessment (calibration) via the optional accessories.Subsequent initial calibration is not possible.In the case of articles with first-time verification, the right of withdrawal is fundamentally excluded.Under the EU Directive 2014/31/EU, scales must be officially conformity-assessed ("calibrated") when used as follows:a) in the course of business, if the price of a commodity is determined by weighing.b) in the manufacture of medicinal products in pharmacies and in analyzes in the medical and pharmaceutical laboratories.c) for official purposes.d) in the manufacture of prepackages.e) in medicine.
