Buy Knipex 12 12 10 12 12 10 Cable stripping pliers 2.5 up to 10 mm² 7 up to 13

Wire stripping pliers with red handles and blue accenting, suitable for stripping and cutting cables. Used for electrical work.

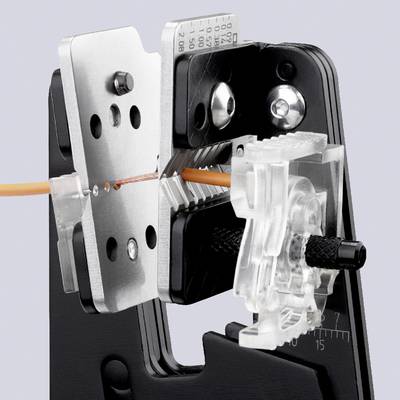

A tool that precisely strips an orange cable. Suitable for precise work in cable engineering.

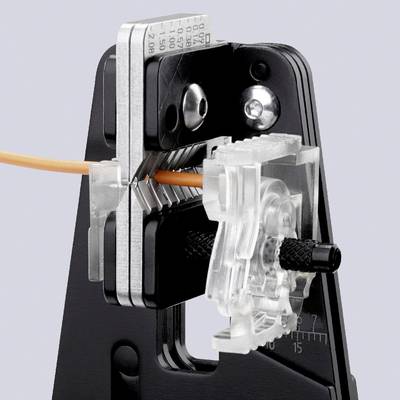

A tool precisely cuts an orange cable. Black blade holder and transparent cutting device with scale indicator.

1/3

Fast track dispatch on Wed, 5 Aug

9 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 105.03 / piece)

€ 105.03

plus VAT.

Only 9 Piece(s) available

Report legal concerns

Highlights & Details

Precision stripping pliers with shaped blades

Technical specifications

Product type: Cable stripping pliers

Suitable for: PTFE-coated cables
Silicone-coated cables
Radox-coated cables
Kapton-coated cables
Rubber-coated cables

Working area (cross section): 2.5 up to 10 mm²

Working area cross section (min.): 2.5 mm²

Operating range (cross section) (max.): 10 mm²

Operating range (AWG diameter): 7 up to 13

Range of use: Electrician

Operating range (AWG cross section) (min.): 13

Operating range (AWG cross section) (max.): 7 awg

Material: Tool steel

Material properties: tempered

Length: 195 mm

Suitable for: Knipex

Suited for model: 12 12 10

Width: 76 mm

Weight: 445 g

Features: incl. spare blades

Suitable for: Difficult-to-work insulation materials such as PTFE, silicon, Radox®, Kapton, rubber as well as of multi-layer insulation

Type: 12 12 10

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 822054 Knipex 12 12 10 12 12 10 Cable stripping pliers 2.5 up to 10 mm² 7 up to 13

Information

Information 822054 Knipex 12 12 10 12 12 10 Cable stripping pliers 2.5 up to 10 mm² 7 up to 13

Description

Form-locking stripping also of difficult to remove insulation materials made of PTFE, silicon, Radox ®, Kapton ® and rubber. Also multi-layered. A second blade pair holding the rest of the insulation firmly and securely. Exactly to the corresponding conductor cross-tuned, replaceable form knife. With adjustable length stop for equal insulation lengths when working in series Knife: Special tool steel, oil-hardened. Pliers body: Steel.

This text is machine translated.

Features

4 changeable blades
Extremely compact and light built
High usage comfort through handy design
Smooth-running mechanism
No damaging of the conductor through precisely grounded knife; even fine-wired strands are also stripped in a protective way
With a new stripping mechanism
With adjustable length stop for equal insulation lengths when working in series
Problem-free stripping of difficult to process insulation materials like Teflon®, silicone, Radox®, Kapton® and rubber as well as of multi-layered insulations
