Buy Knipex 1262 12 62 180 Cable jacket stripping pliers 0.2 up to 6 mm² 10 up to 24

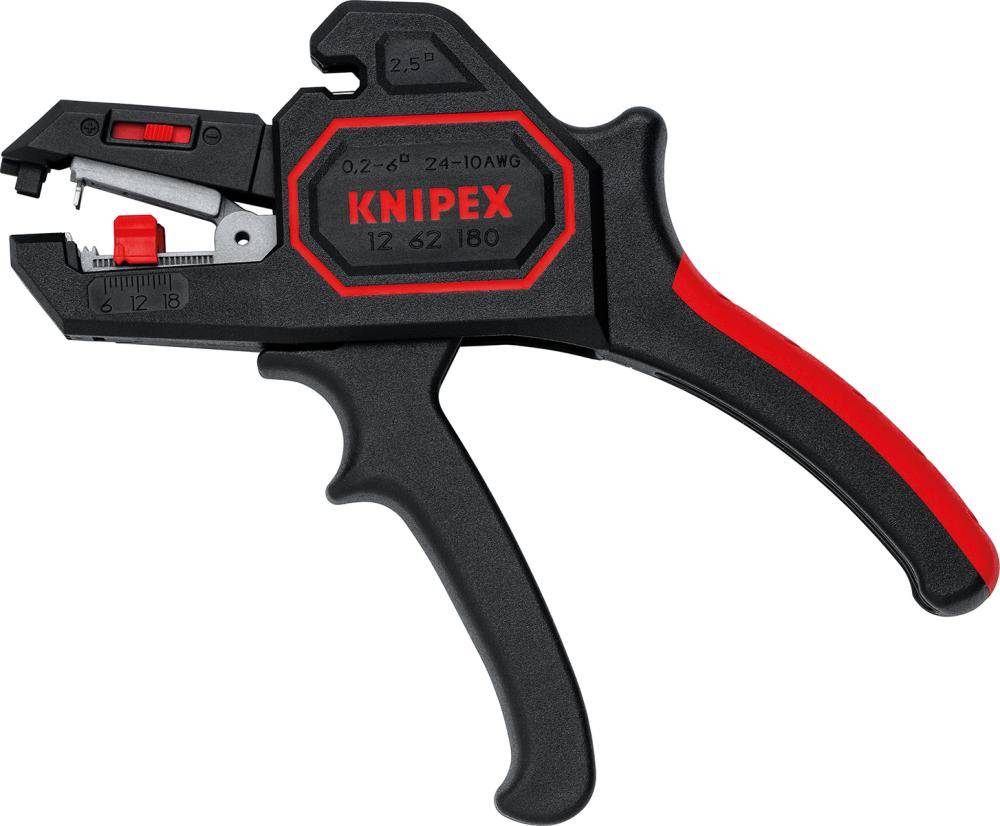

A black and red Knipex wire stripper tool, model 12 62 180, made in Germany, with ergonomic handle and blade adjustment feature.

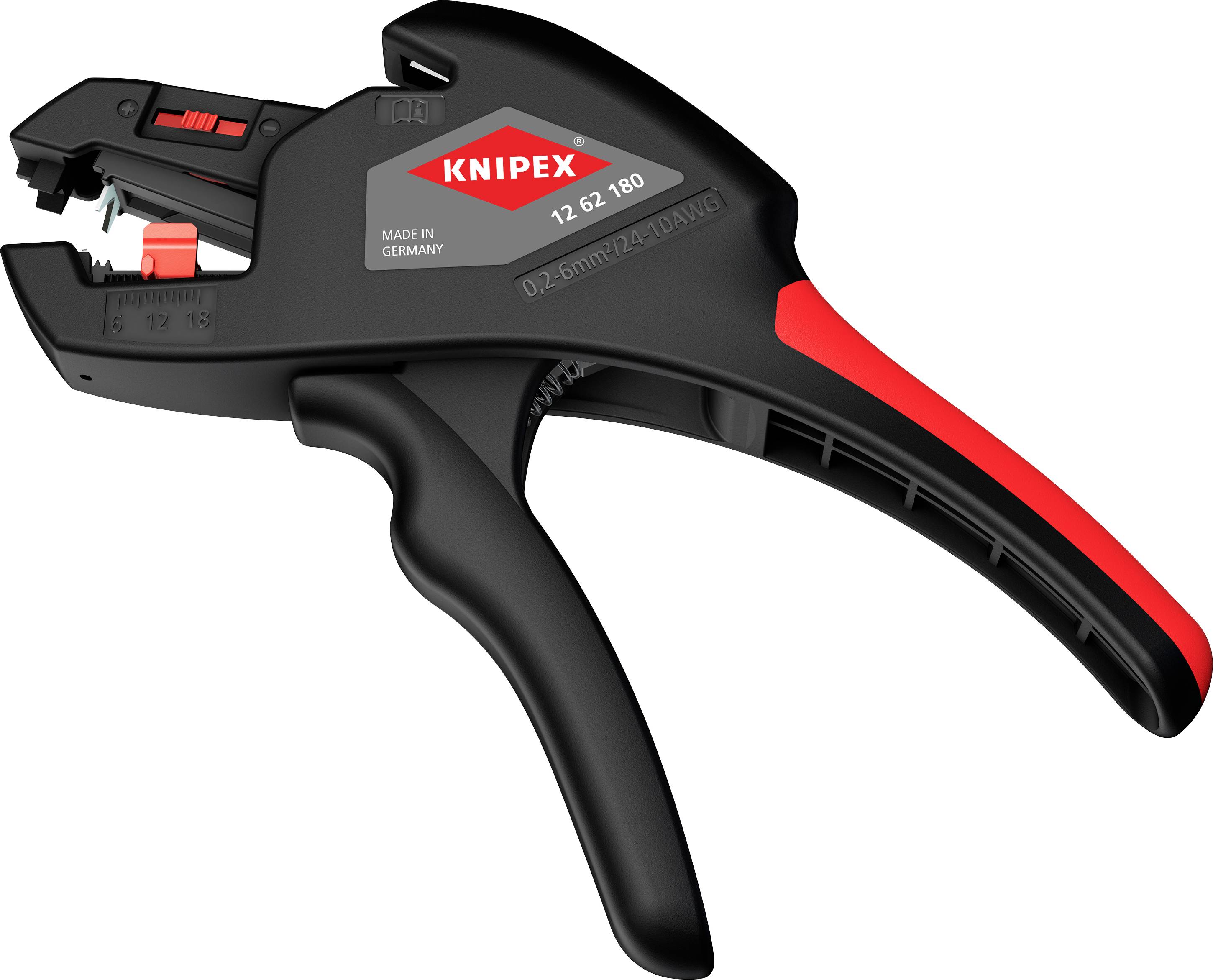

A black and red wire stripper with adjustable gauge settings, labeled 'Knipex 12 62 180', featuring a precise cutting mechanism.

Wire stripping tool with black and red design labeled 'Knipex 12 62 150,' featuring measurement markings.

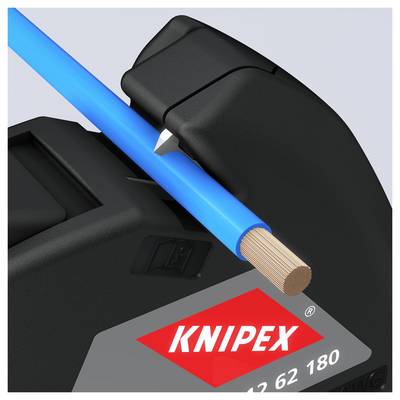

A wire being stripped with a tool revealing copper wires inside, branded 'Knipex'.

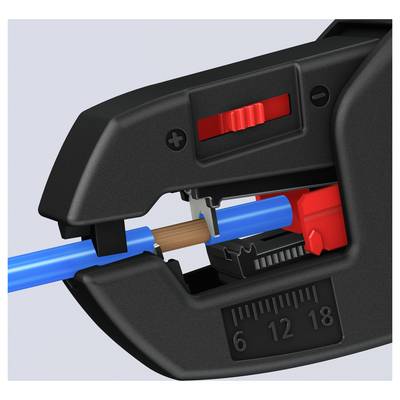

A cable stripper gripping a blue wire, showing adjustable settings for precision stripping.

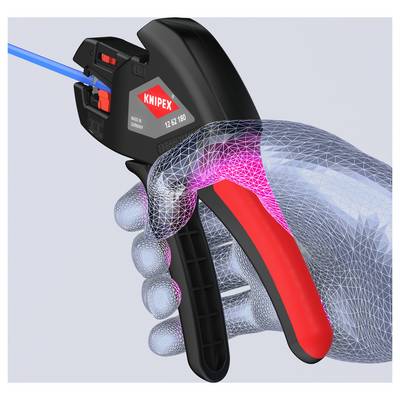

A tool in a translucent hand simulates a grip on a wire stripper, highlighting ergonomic design and functionality.

The image shows a close-up of a tool mechanism, highlighting components with numbered white arrows. Number 1 points to a red wheel; Number 2 points to a metal piece.

A close-up of a tape measure’s locking mechanism emphasizing functionality, with red components indicating movement or design features.

1/8

Datasheet (PDF)

Fast track dispatch on Wed, 5 Aug

427 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 31.08 / piece)

€ 31.08

plus VAT.

Report legal concerns

Highlights & Details

Knipex 1262 12 62 180 Cable jacket stripping pliers 0.2 up to 6 mm² 10 up to 24

For single, multiple and fine stranded cables of 0.2 up to 6.0 mm² with standard insulation
With wire cutter for copper an aluminium wires up to 2.5 mm²
For all current cable cross-sections and insulating materials
Adapts automatically to the respective cable cross-section; prevents damage to the conductor
High operation comfort thanks to handy shape and low weight
Narrow head style for use in confined areas

Technical specifications

Product type: Cable jacket stripping pliers

Suitable for: Insulated cables

Working area (cross section): 0.2 up to 6 mm²

Working area cross section (min.): 0.2 mm²

Operating range (cross section) (max.): 6 mm²

Operating range (AWG diameter): 10 up to 24

Range of use: Electrician

Operating range (AWG cross section) (min.): 24

Operating range (AWG cross section) (max.): 10 awg

Length stop range: 6 up to 18 mm

Length stop (min.): 6 mm

Length stop (max.): 18 mm

Material: Tool steel

Material properties: tempered

Length: 180 mm

Suitable for: Knipex

Width: 75 mm

Weight: 151 g

Features: incl. spare blades

Factory colour: Multicolour

Height: 21 mm

Suitable for: Single, more-and fine wrapping wire

Type: KNIPEX 12 62

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 827009 Knipex 1262 12 62 180 Cable jacket stripping pliers 0.2 up to 6 mm² 10 up to 24

User & Safety Instructions

User & Safety Instructions 827009 Knipex 1262 12 62 180 Cable jacket stripping pliers 0.2 up to 6 mm² 10 up to 24

Information

Information 827009 Knipex 1262 12 62 180 Cable jacket stripping pliers 0.2 up to 6 mm² 10 up to 24

Description

The Knipex 1262 12 62 180 Cable jacket stripping pliers 0.2 up to 6 mm² 10 up to 24 fully automatic adjustment to all single-, multi-stranded conductors and necessary with standard insulation in the overall capacity of the field, by using V-shaped blade, no manual fine tuning, slender shape of the head is required for using in confined work areas.

Features

With wire cutters for copper and aluminium multi-core wires up to 10 mm2, and single-core wires up to 6 mm2.
Type 12 62 till max. 6 mm², with wire cutter for Cu/AL conductor up to max. 2.5 mm² type 12 40 up to max. 10 mm² type 12 42 up to max. 10 mm², for PTFE, Radox® material type 12 50 up to max. 16 mm².
