Buy Knipex 16 64 125 SB Cable sheathing stripper Suitable for Ribbon cable, Round cable, Wet room cables 4 up to 13 mm 0.8 u

Red cable stripping tool, slim design with ergonomic handle, suitable for precise cable stripping.

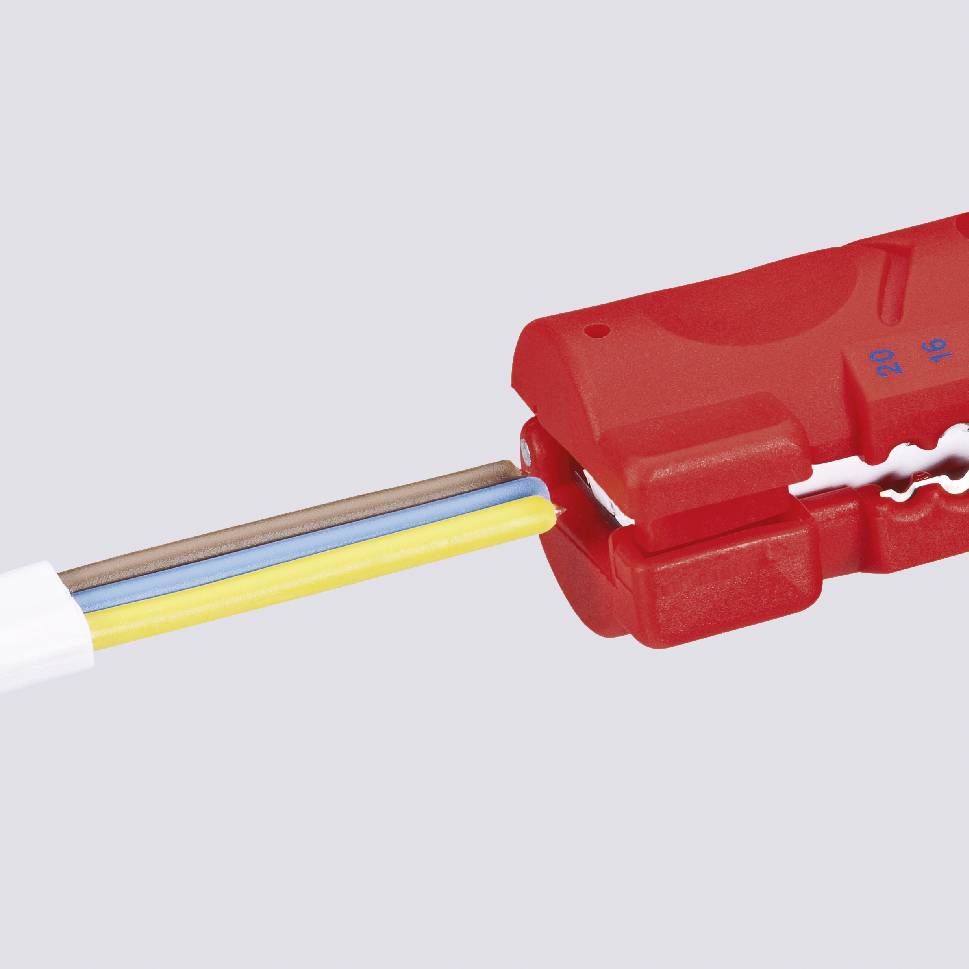

Close-up of a wire stripper showing cables with insulated wires of different colours.

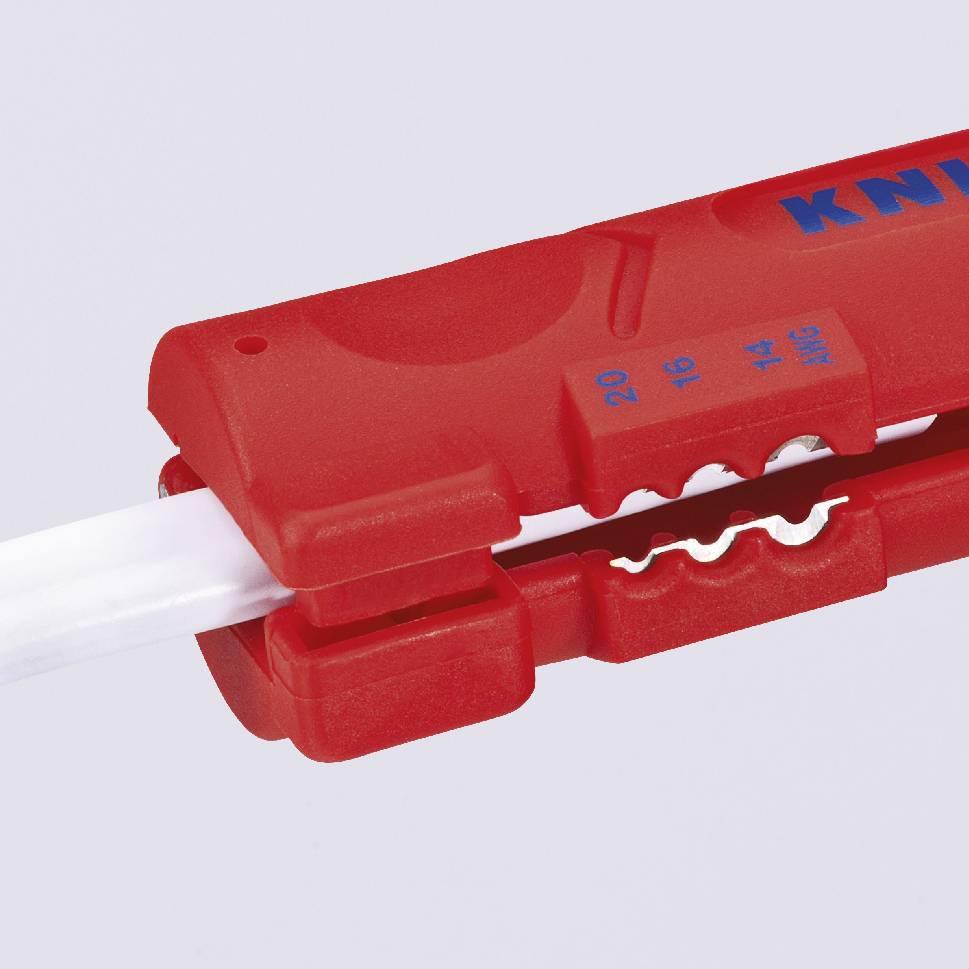

A red wire stripping tool cuts through a white cable.

Red tool 'KNIPEX 16 64 125', likely a wire stripper, with scale for wire thicknesses 14-20, showing directional arrows.

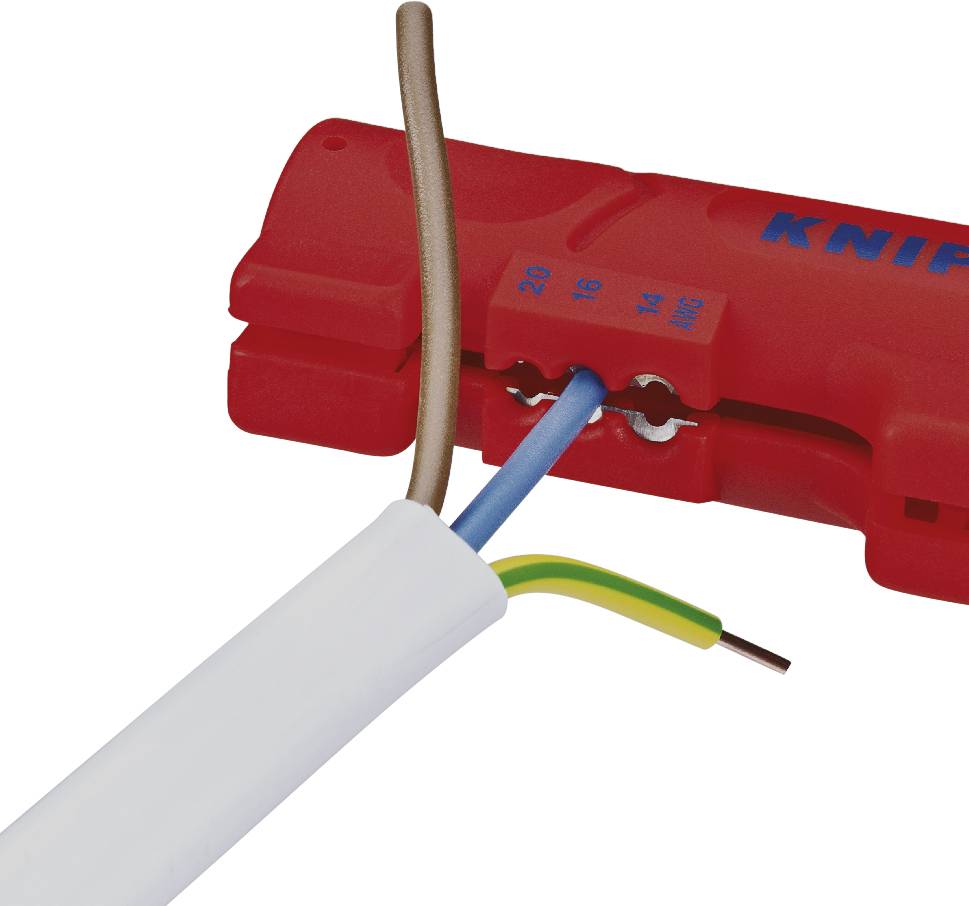

A red wire stripping tool removes the insulation from a cable containing blue, yellow, and brown wires.

1/5

Fast track dispatch on Wed, 9 Sep

40 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 20.16 / piece)

€ 24.36

-17 %

€ 20.16

plus VAT.

Report legal concerns

Technical specifications

For ribbon cable up to 12 mm width; round and Moist room cable of 8 - 13mm Ø e.g. NYM 3 x 1.5 mm² up to 5 x 2.5 mm²; cross-sections 0.8 / 1.5 / 2.5 mm²; AWG 20/ 16/ 14; Housing: plastic, glass-fiber reinforced

Product type: Cable sheathing stripper

Suitable for: Ribbon cable
Round cable
Wet room cables

Operating range (diameter): 4 up to 13 mm

Working area diameter (min.): 4 mm

Operating range (diameter) (max.): 13 mm

Working area (cross section): 0.8 up to 2.5 mm²

Working area cross section (min.): 0.8 mm²

Operating range (cross section) (max.): 2.5 mm²

Operating range (AWG diameter): 14 up to 20

Operating range (AWG cross section) (min.): 20

Operating range (AWG cross section) (max.): 14 awg

Length: 125 mm

Width: 88 mm

Weight: 48 g

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1008210 Knipex 16 64 125 SB Cable sheathing stripper Suitable for Ribbon cable, Round cable, Wet room cables 4 up to 13 mm 0.8 u

Description

For adhesive tape up to a width of 12 mm For stripping of all common round and Moist room cable diameter 4.0 to 13.0 mm (e.g. NYM-Cable 3 x 1.5 mm² up to 5 x 2.5 mm²). Stripping device for the cross-sections 0.8 / 1.5 / 2.5 mm² (AWG 20/ 16/ 14). For working in narrow and confined work areas. Also suitable for the use in junction or distribution boxes. Casing: Polypropylene, glass-fibre reinforced;
