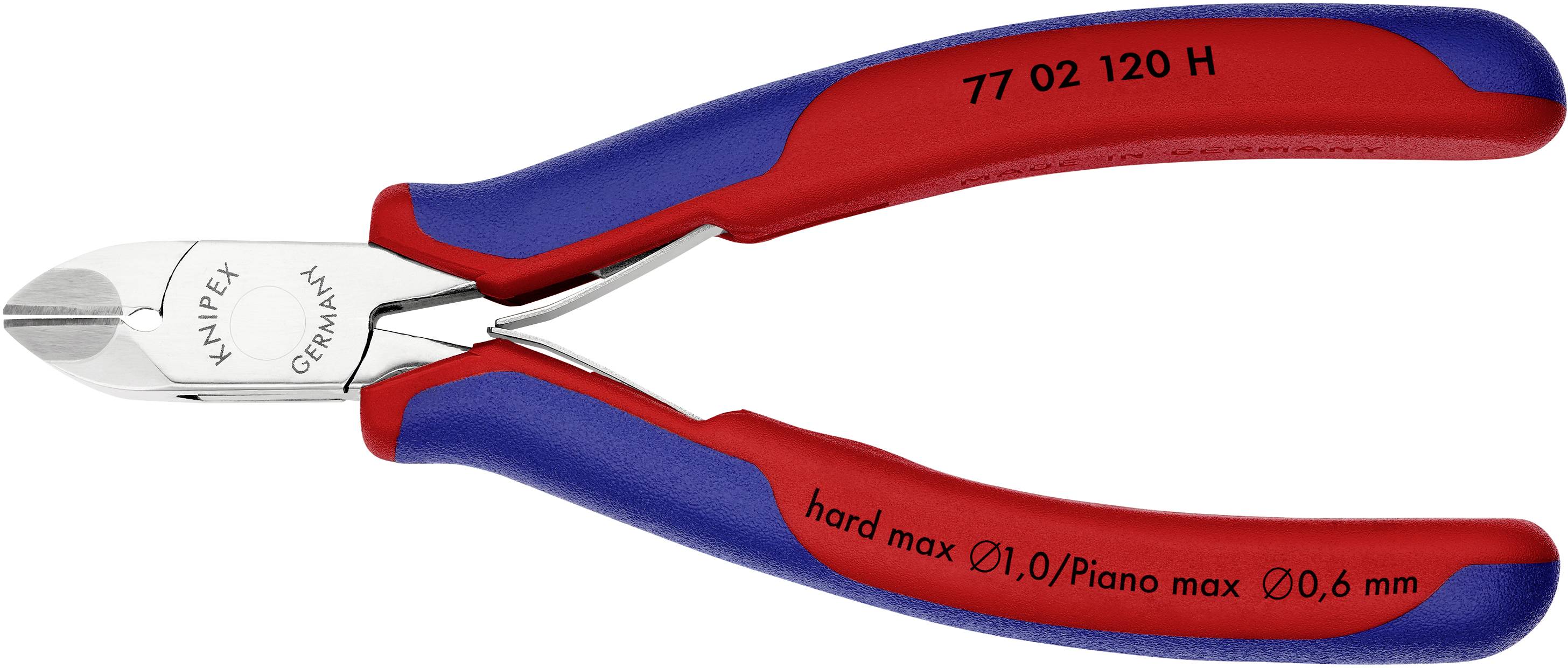

Knipex 77 02 120 H Electrical & precision engineering Side cutter non-flush type 120 mm
EAN:
Part number:
Item no:
Number
Total (€ 96.63 / piece)
€ 96.63
plus VAT.
Only 10 Piece(s) available
Highlights & Details

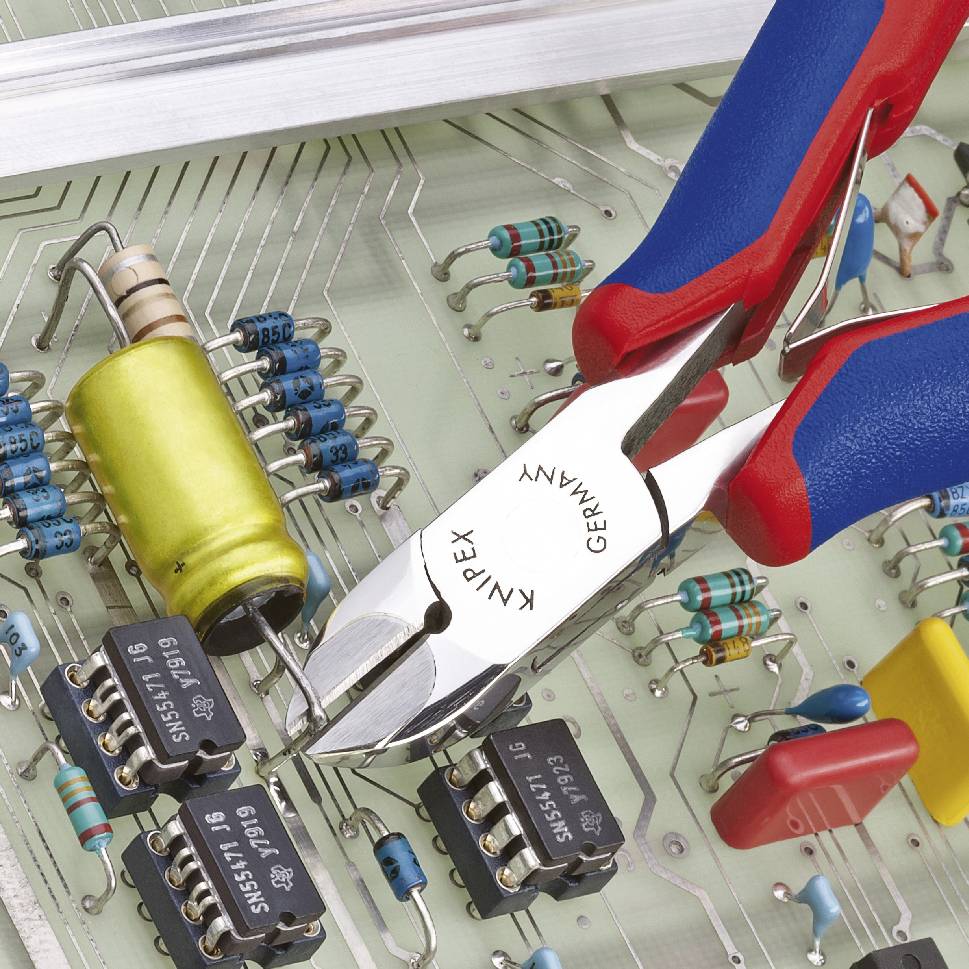

Electronics side cutter 120 mm
- For extreme demands on-cutting pliers thanks to hard or viscous materials, e.g. Piano, Nickel, tungsten and diode wire as you are increasingly in the electronics and aerospace industry can be used
- Always the right cutting tool, even in the hardest material
- Precision hard metal cut soldered in forged blanks
- Stable box joint free from play
- Cutting hardness of the carbide cutting 8-83 HRC
Technical specifications
- Product type
Side cutter
- Manufacturer part #
77 02 120 H
- Range of use
Electrical & precision engineering
- Length
120 mm
- Material
Carbide metal
- Material properties
polishing
- Edge hardness
83 HRC
- Wire hardness (max.) soft wire
2 mm
- Wire hardness (max.) medium wire
1.4 mm
- Wire hardness (max.) hard wire
1.0 mm
- Wire hardness piano wire (max.)
0.6 mm
- Width
50 mm
- Weight
85 g
- Features
non-flush type
- Type
With carbide cutting
- Type
77 02 120 h
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1008221 Knipex 77 02 120 H Electrical & precision engineering Side cutter non-flush type 120 mm
Description
Stable box joint free from play For extreme demands on-cutting pliers thanks to hard or viscous materials, e.g. Piano, Nickel, tungsten and diode wire as you are increasingly in the electronics and aerospace industry. Always the right cutting tool, even in the toughest conditions material. Precision hard metal cut soldered in forged blanks. Cutting hardness of the carbide cutting 80 - 83 HRC. Pliers with hard metal cut have a much longer life than those with conventional cutting. Permanently reliable cutting results by avoiding cutting deformations due to overload. High cost-savings through longer service life of pliers.
This text is machine translated.
This text is machine translated.
Features
- Mirror Polished
- Grips with multi-component sleeves
- for extreme demands on-cutting pliers thanks to hard or viscous materials, e.g. Piano, Nickel, tungsten and diode wire as you are increasingly in the electronics and aerospace industry can be used
- Always the right cutting tool, even in the hardest material
- Precision hard metal cut soldered in forged blank discs
- Stable box joint free from play
- Cutting hardness of 80 - 83 HRC
- pliers with HM-cutting hard metal cut have a much longer life than those with conventional cutting
- permanently reliable cutting results by avoiding cutting deformations due to overload
- High Cost savings due to a longer service life of the pliers
- Grips Electrically discharging design - dissipative.
