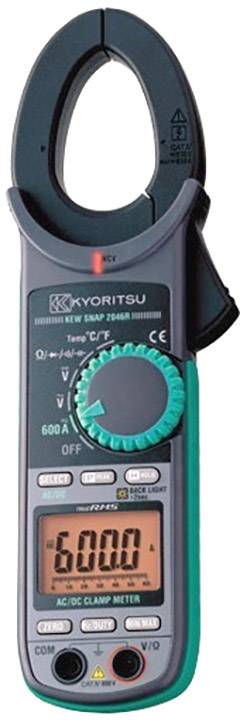

Kyoritsu KEW-2046R Clamp meter Digital incl. testing cable, incl. bag CAT IV 600 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 318.49 / piece)
€ 318.49
plus VAT.
Highlights & Details
True RMS clamp meter KEW-2046R
- Temperature measurement from -50 to 300°C only with temperature probe possible
- Red LED as "No contact voltage function" CAT IV 600 V
Technical specifications
- Voltage reading range DC (min.)
0.6 V
- Product type
Clamp meter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
6 V
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
0 A
- A DC reading range (max.)
600 A
- A AC reading range (min.)
0 A
- Amperage reading range AC (max.)
600 A
- Reading range - resistance
600 Ohm - 60 MOhm
- Reading range - capacity
400 nF - 40 µF
- Frequency reading range
10 Hz - 10 K Hz
- Basic accuracy
2.0 %
- Measurement type (details)
True RMS
- Height
36 mm
- Width
77 mm
- Length
243 mm
- Weight
300 g
Manufacturer's standards (no certificate)
- Reading category
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
KEW-2046R
- Display
Digital
- Dim
(L x W x H) 243 x 77 x 36 mm
- Temperature reading range (max.)
300 °C
- Temperature reading range (min.)
-50 °C
- Features
incl. testing cable
incl. bag
- Opening range of current clamps
33 mm
Documents & Downloads
Datasheet
Datasheet 1667101 Kyoritsu KEW-2046R Clamp meter Digital incl. testing cable, incl. bag CAT IV 600 V
User & Safety Instructions
User & Safety Instructions 1667101 Kyoritsu KEW-2046R Clamp meter Digital incl. testing cable, incl. bag CAT IV 600 V
Description
Features
- Continuity measurement
- DUTY
- Diode test function
- Data hold and peak hold function
- Background light
- This text is machine translated.
Scope of delivery
- Batteries
- Bag
- Test lead
- User manual
