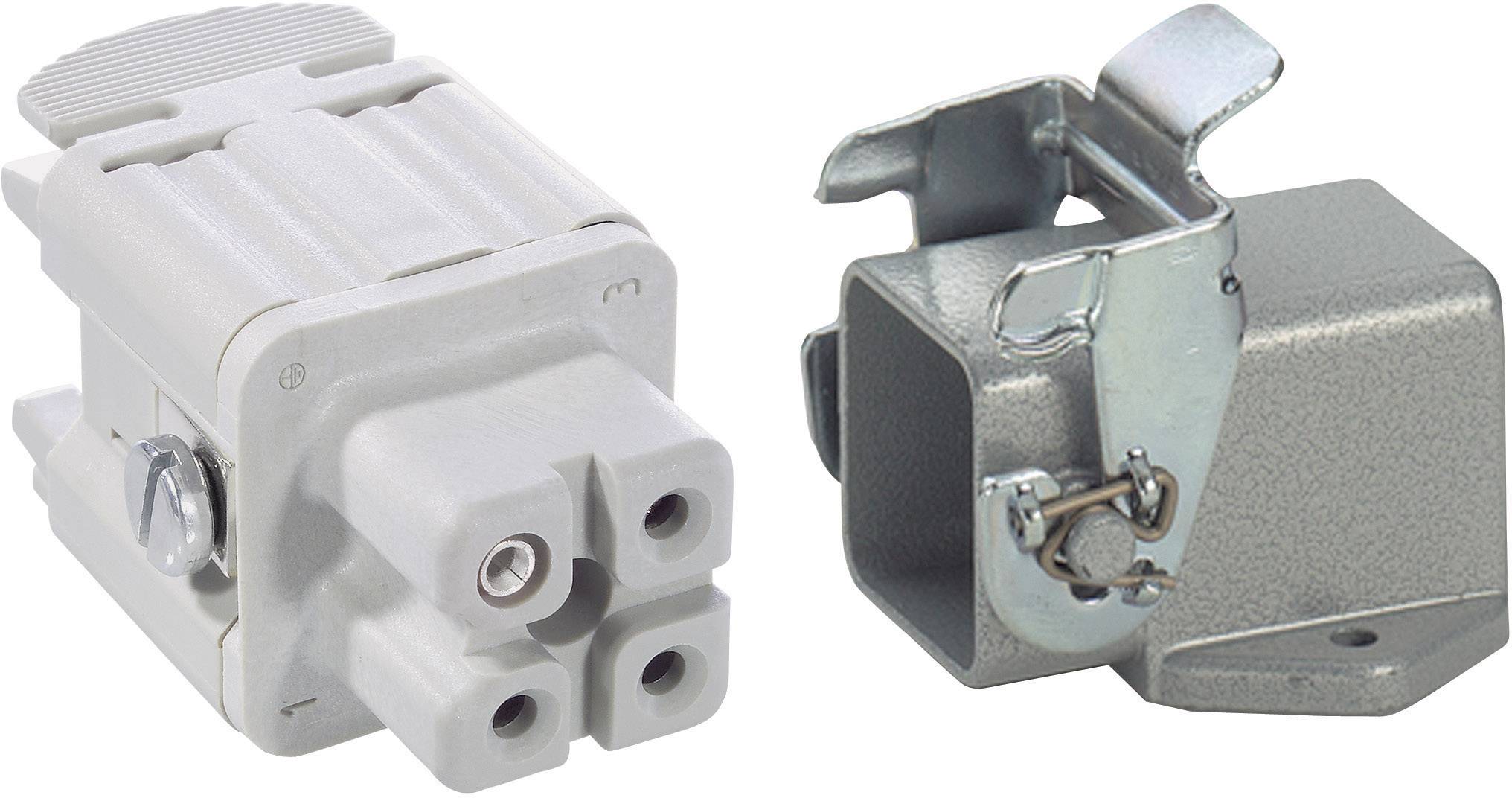

LAPP Connector set EPIC®KIT H-A 3 75009608 3 + PE Screws 1 Set Package
EAN:
Part number:
Item no:
Packaging type
Package
Product type
Connector set
Series
EPIC®KIT H-A 3
Connection
Screws
Number of pins
3
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 16.80
3
5% = € 0.83
€ 15.97
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 16.80 / piece)
€ 16.80
plus VAT.
14 days return policy included
Highlights & Details
LAPP Connector set EPIC®KIT H-A 3 75009608 3 + PE Screws 1 Set Package
Technical specifications
- Packaging type
Package
- Product type
Connector set
- Series
EPIC®KIT H-A 3
- Number of pins
3
- Total no. of pins
3 + PE
- Connection
Screws
- Test current
IEC: 23 A
UL: 10 A
CSA: 10 A
- Rated voltage
IEC: 400 V
UL: 600 V
CSA: 600 V
- Rated surge voltage
4 kV
- Case material
Metal
- Max. temperature
+100 °C
- Min. temperature
-40 °C
IP65
- Content
1 Set
- Factory colour
Grey
- Core cross section (max.)
2.50 mm²
- Core cross section (min.)
0.50 mm²
- Features
with screw connection
- Leading contact (PE)
Yes
- Depth
200 mm
- Height
100 mm
- Length
200 cm
- Width
150 mm
- Material (details)
Metal case
- Type
Rectangular plug kit
· Socket insert
· Angled connector fitting
· Housing: Zinc diecast grey
- Type
angled
- Connection
Screws
- Temperature range
-40 - +100 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 603836 LAPP Connector set EPIC®KIT H-A 3 75009608 3 + PE Screws 1 Set Package
User & Safety Instructions
User & Safety Instructions 603836 LAPP Connector set EPIC®KIT H-A 3 75009608 3 + PE Screws 1 Set Package
Information
Information 603836 LAPP Connector set EPIC®KIT H-A 3 75009608 3 + PE Screws 1 Set Package
Description
The small H-A 3/4 plug connector find its application everywhere, where limited space is available. Screw connection with straight cable inlet of the back. H-A application with screw connection up to 2.5 mm ² cross cable connection.
Scope of delivery
- Socket insert · Angled connector fitting · Housing: Zinc diecast grey
