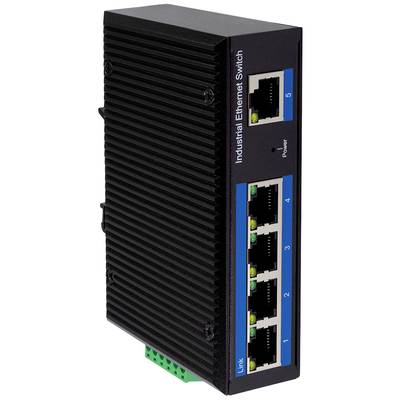

LogiLink NS202P NS202P Industrial Ethernet switch 5 ports 10 / 100 / 1000 MBit/s PoE
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 50.41 / piece)
€ 50.41
plus VAT.
Only 9 Piece(s) available
Highlights & Details
Industrial Gigabit Ethernet PoE Switch, 5-port, 10/100/1000 Mbit/s.
- 4-port PoE, 802.3at/af, max. 30 W per portUnmanaged, simply plug in, plug-and-playCompact, robust metal housing, IP40Free fall, shock and vibration stabilitySupply voltage 48 to 57 V.Suitable for DIN rail mountingExtended operating temperature -40 °C to +80 °C.
Technical specifications
- Product type
Industrial Ethernet switch
- Transfer rate
10 / 100 / 1000 MBit/s
- Working principle
Unmanaged switch
- IEEE 802.3af PoE
5
- PoE ports
5
- 10/100/1000 Mbps ports
5 x
- Router features
PoE
- Power supply (LOV)
mains-powered (redundant)
- MAC addresses
2000
- Weight
360 g
- Width
118 mm
- Height
33.5 mm
- Depth
86 mm
- Type
NS202P
IP40
- Factory colour
Black
- Port
5 ports
Documents & Downloads
Datasheet
Datasheet 2757379 LogiLink NS202P NS202P Industrial Ethernet switch 5 ports 10 / 100 / 1000 MBit/s PoE
User & Safety Instructions
User & Safety Instructions 2757379 LogiLink NS202P NS202P Industrial Ethernet switch 5 ports 10 / 100 / 1000 MBit/s PoE
Description
LogiLink's unmanaged Industrial Ethernet switches are ideal for use in harsh environments thanks to the extended temperature range of -40 °C to 80 °C. These rugged and compact devices allow you to connect multiple devices, optionally with power supply via the same Ethernet patch cable (PoE). Because of their flexibility (Giga or Fast Ethernet, with or without PoE) and simplicity (plug-and-play, unmanaged) these switches are not only suitable for industrial applications.
