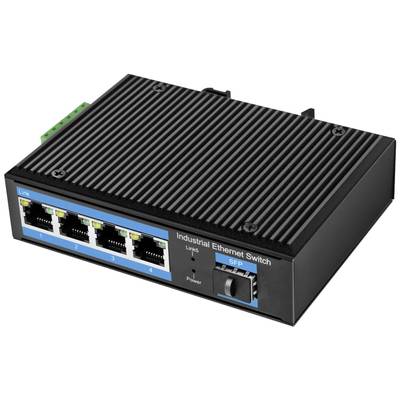

LogiLink NS204 NS204 Network switch
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Industrial Gigabit Ethernet Switch, 4-port 1000 Mbit/s + 1 port SFP
- Industrial switch, 4-port 10/100/1000Base-TX + 1 port SFP
- Unmanaged, simply plug in, plug-and-play
- Compact, robust metal housing, IP40
- Free fall, shock and vibration stability
- Supply voltage 12 to 52 V DC redundant
- Suitable for DIN rail mounting
- Extended operating temperature -40 °C to +80 °C.
- Suitable power supply: 12 - 52 V (not included in delivery)
Technical specifications
- Product type
Network switch
- LAN transfer rate
1000 MBit/s
- SFP ports
1 x
- 10/100/1000 Mbps ports
4 x
- MAC addresses
2000
- Weight
360 g
- Width
118 mm
- Height
86 mm
- Depth
33.50 mm
- Type
NS204
IP40
- Factory colour
Black
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2895405 LogiLink NS204 NS204 Network switch
User & Safety Instructions
User & Safety Instructions 2895405 LogiLink NS204 NS204 Network switch
Description
LogiLink's unmanaged industrial Ethernet switches are particularly suited for use in harsh environments thanks to the extended temperature range of -40-80°C. These rugged and compact devices allow you to connect multiple devices, optionally with power supply via the same Ethernet patch cable (PoE). Because of their flexibility (Giga or Fast Ethernet, with or without PoE) and simplicity (plug-and-play, unmanaged) these switches are not only suitable for industrial applications.
