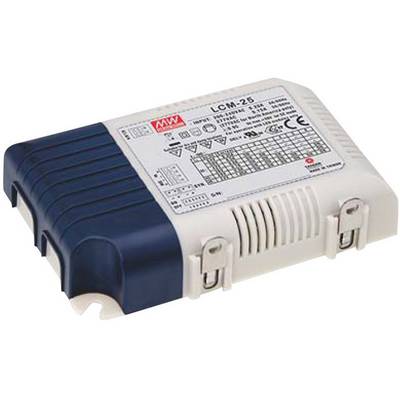

Image similar
MEAN WELL LCM-25 LED driver Constant current 25 W 0.35 - 1.05 A 6 - 54 V DC PFC circuit, Surge protection, dimmable 1 pc
EAN:
Part number:
Item no:
Datasheet (PDF)
44 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 1.06
€ 23.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.36 / piece)
€
Highlights & Details
LED-switching power supply
- Constant current
- 6 - 54 V DC
- 0.35 - 1.05 A
Technical specifications
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 23.00 x 105.00 x 68.00 mm
- Output voltage (max.)
54 V DC
- Output voltage (min.)
6 V DC
- Max. output current
1.05 A
- Output current (max.) - rounded
1.05 A
- Operating voltage
230 V AC
- LED driver features
PFC circuit
Surge protection
dimmable
IP20
- Connection
Screw terminal
- Max. power
25 W
- No. of outputs
6 x
- No. of inputs
1 x
- Output current (min.)
0.35 A
- Input voltage (max.)
277 V AC
- Min. input voltage
180 V AC
- Weight
3900.00 g
- Power range
25 W (max)
- Type
Synchronised
- Width
105.00 mm
- Height
68.00 mm
- Length
23.00 mm
Documents & Downloads
Datasheet
Datasheet 1294166 MEAN WELL LCM-25 LED driver Constant current 25 W 0.35 - 1.05 A 6 - 54 V DC PFC circuit, Surge protection, dimmable 1 pc
User & Safety Instructions
User & Safety Instructions 1294166 MEAN WELL LCM-25 LED driver Constant current 25 W 0.35 - 1.05 A 6 - 54 V DC PFC circuit, Surge protection, dimmable 1 pc
Information
Information 1294166 MEAN WELL LCM-25 LED driver Constant current 25 W 0.35 - 1.05 A 6 - 54 V DC PFC circuit, Surge protection, dimmable 1 pc
Warranty Terms
Warranty Terms 1294166 MEAN WELL LCM-25 LED driver Constant current 25 W 0.35 - 1.05 A 6 - 54 V DC PFC circuit, Surge protection, dimmable 1 pc
Description
LCM-_DA: Dali interface, push dimming function · LCM-_: built-in dimming function (external voltage 1...10V DC, PWM) · Plastic enclosure IP20 · Overload protection, current limiting, auto recovery · Protections: short circuit/over load/over voltage · Built-in active PFC function · Insulation Class II · Suitable for LED lighting and moving sign applications · Constant current selectable by DIP switch · Temperature compensation function by external NTC (LCM-40, LCM-60) · EN61000-3-2, Class C, EN55015, EN61347-1, EN61347-2-13, EN61547 Criteria A
Features
- LCM_DA: Dali interface, pushbutton dimming
- LCM_: Dimmable design (external voltage 0...10 V DC, PWM)
- Overload protection through current limitation, auto recovery
- Protected against short-circuit, overheating, over-voltage
- Built-in PFC circuit
- Insulation category II
- For indoor applications
- For LED lighting applications
- Constant current can be selected via DIP switch
- NTC connection for temperature compensation (LCM-40, LCM-60)
- EN 61000-3-2, Class C, EN55015, EN 61347-1, EN 61347-2-13, EN61547 Criteria A
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
