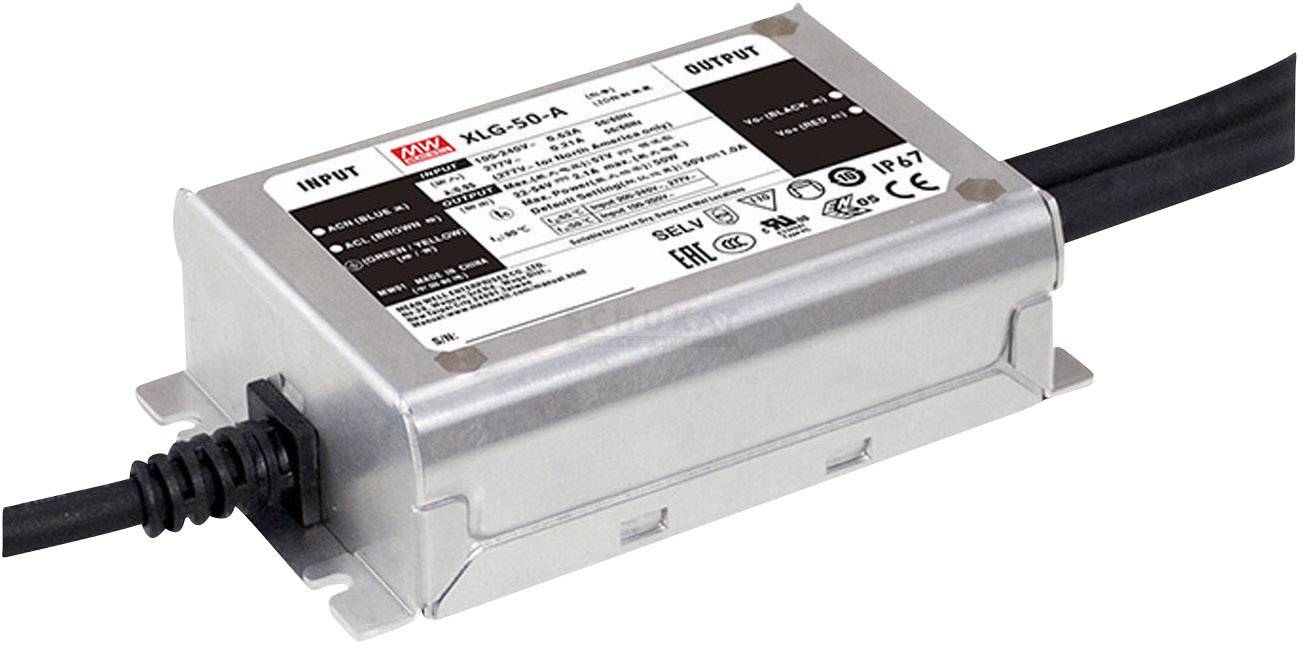

MEAN WELL XLG-50-AB LED driver Constant power 50 W 530 mA - 2.1 A 22 - 54 V DC PFC circuit, adjustable, dimmable, 3-in-1
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.84
3
4% = € 0.95
€ 20.89
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.84 / piece)
€ 21.84
plus VAT.
Highlights & Details
XLG-50-AB
- Constant power
- 22 - 54 V DC
- 530 mA - 2.1 A
Technical specifications
- Product type
LED driver
- Type
Constant power
- Dim
(L x W x H) 105 x 63 x 30 mm
- Factory colour
Metal
- Output voltage (max.)
54 V DC
- Output voltage (min.)
22 V DC
- Test mark
CB, MM, SELV, UL, ENEC
- Max. output current
2.1 A
- Output current (max.) - rounded
2.1 A
- Operating voltage
230 V AC
115 V AC
- LED driver features
PFC circuit
adjustable
dimmable
3-in-1 dimmer
Suitable for flammable surfaces
Approved for use on furniture
Outdoor
Surge protection
Overvoltage
IP67
- Connection
Open end cable
- Max. power
50 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
530 mA
- Input voltage (max.)
305 V AC
431 V DC
- Min. input voltage
90 V AC
142 V DC
- Weight
410 g
- Power range
50 W (max)
- Type
Pulsed
- Width
63 mm
- Height
30 mm
- Length
105 mm
- Max. temperature
+90 °C
- Min. temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 2108168 MEAN WELL XLG-50-AB LED driver Constant power 50 W 530 mA - 2.1 A 22 - 54 V DC PFC circuit, adjustable, dimmable, 3-in-1
User & Safety Instructions
User & Safety Instructions 2108168 MEAN WELL XLG-50-AB LED driver Constant power 50 W 530 mA - 2.1 A 22 - 54 V DC PFC circuit, adjustable, dimmable, 3-in-1
Warranty Terms
Warranty Terms 2108168 MEAN WELL XLG-50-AB LED driver Constant power 50 W 530 mA - 2.1 A 22 - 54 V DC PFC circuit, adjustable, dimmable, 3-in-1
Description
Features
- Constant power
- Independent operating device
- Wide-range input
- Metal housing
- Overload protection through current limitation, auto recovery
- Protected against short circuit, overload, overvoltage, overheating
- Built-in PFC circuit
- Low idle power
- SELV compliant
- Safety Standards: EN 61347-1, EN 61347-2-13, EN 62384, and more
- Emc Standards: EN55015, EN61000-3-2 Class C, EN 61000-3-3, EN61547 and other
- Surge immunity level 6 kV
- IP67, current limit can be set via internal potentiometer, dimming via running control cable, 3 in 1 dimming function (0...10 V DC, 10 V PWM, potentiometer)
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
