Metabo 628799000 HM 3 Dry running protection 33.25mm (1") OT, 25 mm (1") IT
EAN:
Part number:
Item no:
Number
Total (€ 78.98 / piece)
€ 78.98
plus VAT.
Highlights & Details

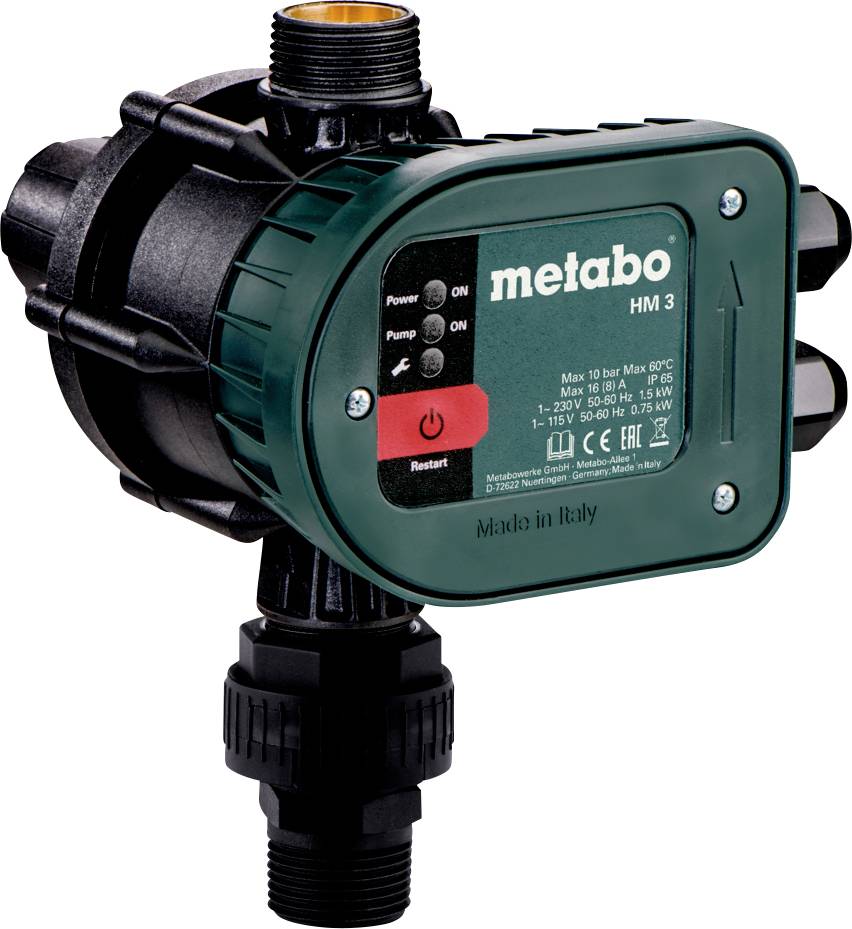

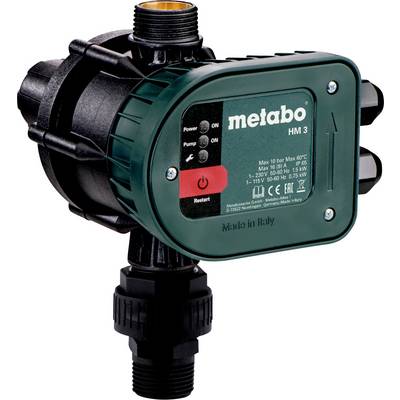

Metabo HM 3 (automatic. Control for pumps)
- Automatic control: Turn on the pump when water is removed and off when the maximum pressure is reached
- Dry run protection: Automatic shut-off if the medium is not pumped (leaking suction pipe, sealing the water supply)
- LED-display for controlling the operating state
- Diaphragm and spring to eliminate the effect of pressure surges
- Safety valve to prevent water leakage in case of membrane damage
- Easy to use
- Ideal for converting a garden pump to a house water dispenser
- Also suitable for deep well/submersion pressure pumps
- Switch-on pressure: Approx. 1.5 bar
- Voltage 115 V / 230 V.
- Frequency 50 - 60 Hz
- Protection system: IP 65
- Max. Current 16(8) A-1.5 kW
- Max. Operating pressure 10 bar
- Max. Operating temperature 0° to 60° C.
- Connection:
- Pressure connection 1" AG
- Device CONNECTION 1" AG
- Brass adapter 1" female thread x 1" male thread
- This text is machine translated.
Technical specifications
- Product type
Dry running protection
- Hose connection
33.25mm (1") OT
25 mm (1") IT
- Connection
1" male thread / connector 1" male thread / brass adapter 1" female thread x 1" male AG
- UKCA
yes
