Minix Android Mini PC ARM Cortex RK3566 Cortex - A55 Quad-Core 1.8 GHz 4 GB RAM 32 GB eMMC ARM Mali-G52 MINIX X35-i Max
EAN:
Part number:
Item no:
Number
Total (€ 214.29 / piece)
€ 214.29
plus VAT.
Highlights & Details
Minix Android Mini PC
- ARM Cortex RK3566 Cortex - A55 Quad-Core 4 core(s) / max. 1.8 GHz
- RAM: 4 GB DDR4 RAM 2666 MHz
- 32 GB eMMC
- ARM
- Mali-G52
- Android™ 11
- The X35-i Max is a power-packed digital signage media player that supports advanced performance at an affordable price.
- Engineered for commercial grade 24/7 continuous use solid-state storage, aluminum chassis for heat dissipation, Wi-Fi or hardline
- Reliable ARM Cotex-A55 Processor with Mali-G52 Graphics
- Display media-rich content, widgets, live streams, social media feeds and more
- All content caches, play landscape and portrait and works off/on-line
Technical specifications
- Product type
Android Mini PC
- CPU series
ARM Cortex
- CPU
ARM Cortex RK3566 Cortex - A55 Quad-Core
- Processor/type
RK3566 Cortex - A55 Quad-Core
- Processor cores (No.)
4 x
- CPU speed
1.8 GHz
- CPU turbo clock speed (max.)
1.8 GHz
4 GB
- RAM type
DDR4 RAM
- Memory clock speed
2666 MHz
- No. of memory slots
1
- Onboard graphics card
Yes
- Onboard graphics card (GPU manufacturer)
ARM
- Onboard graphics card (version)
Mali-G52
- Dedicated graphics card
No
- HDD capacity (total)
32 GB
- Hard drive
32 GB
- HDD 1 type
eMMC
- Bluetooth
5.0
- Mobile internet
WiFi
- Keyboard layout
Keyboard not included
- No. of Gigabit LANs
1 x
- No. of HDMI ports
1 x
- No. of USB A 2.0 ports
2 x
- No. of USB 3.0 ports
1 x

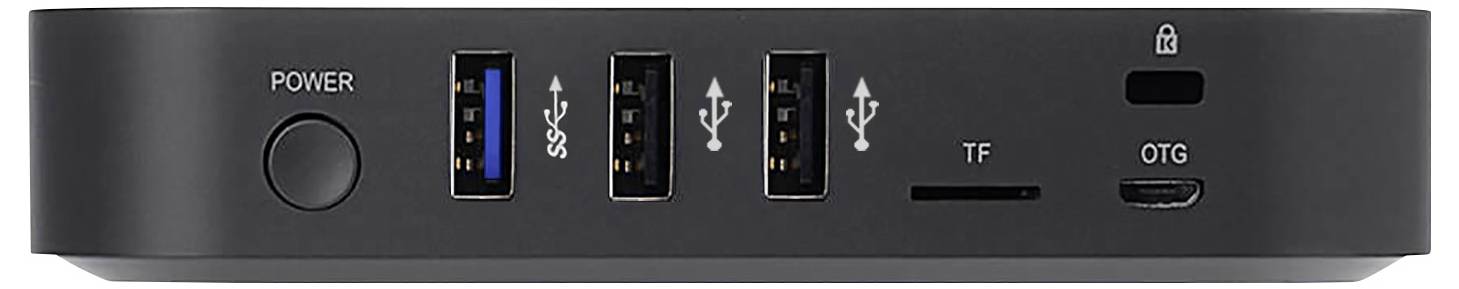

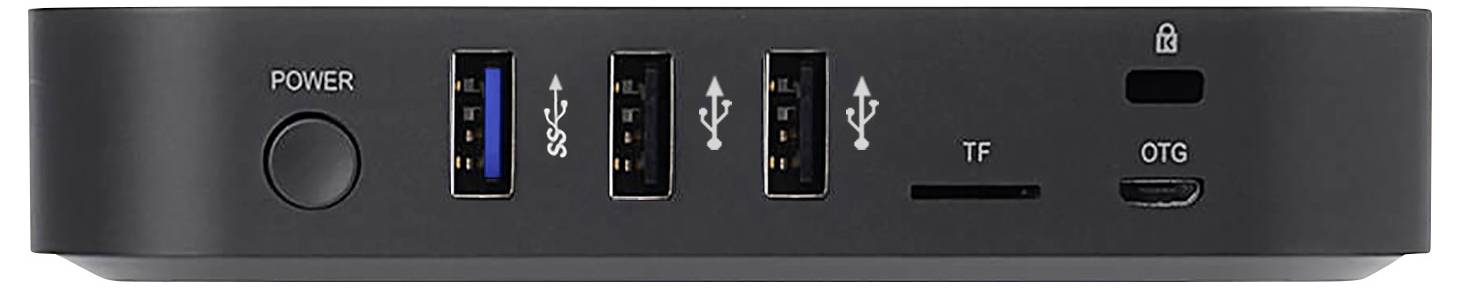

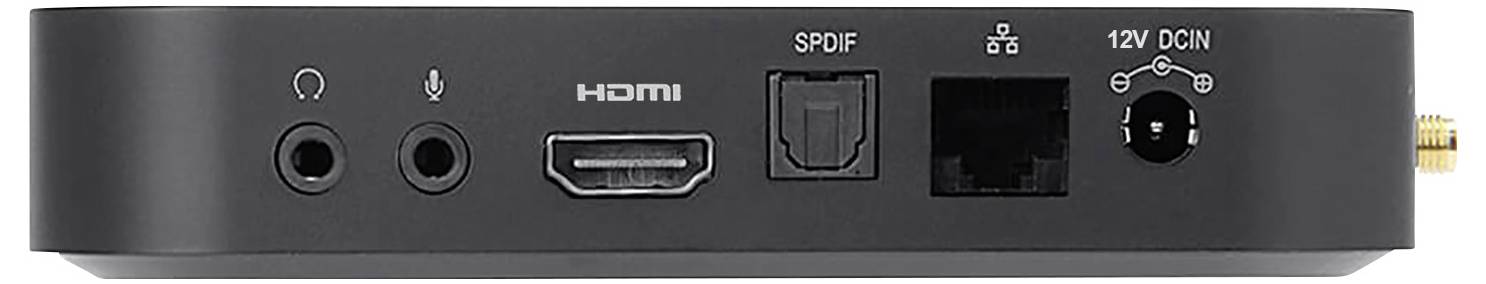

- Interfaces
Wi-Fi 6 (IEEE 802.11ax)
Bluetooth
HDMI™
Gigabit LAN (1 Gbps)
USB A (USB 3.0)
USB A (USB 2.0)
microSD
Headphone jack (3.5 mm)
Microphone (3.5 mm jack)
S/PDIF
Show more
- Supported memory cards
microSD
- Factory colour
Black

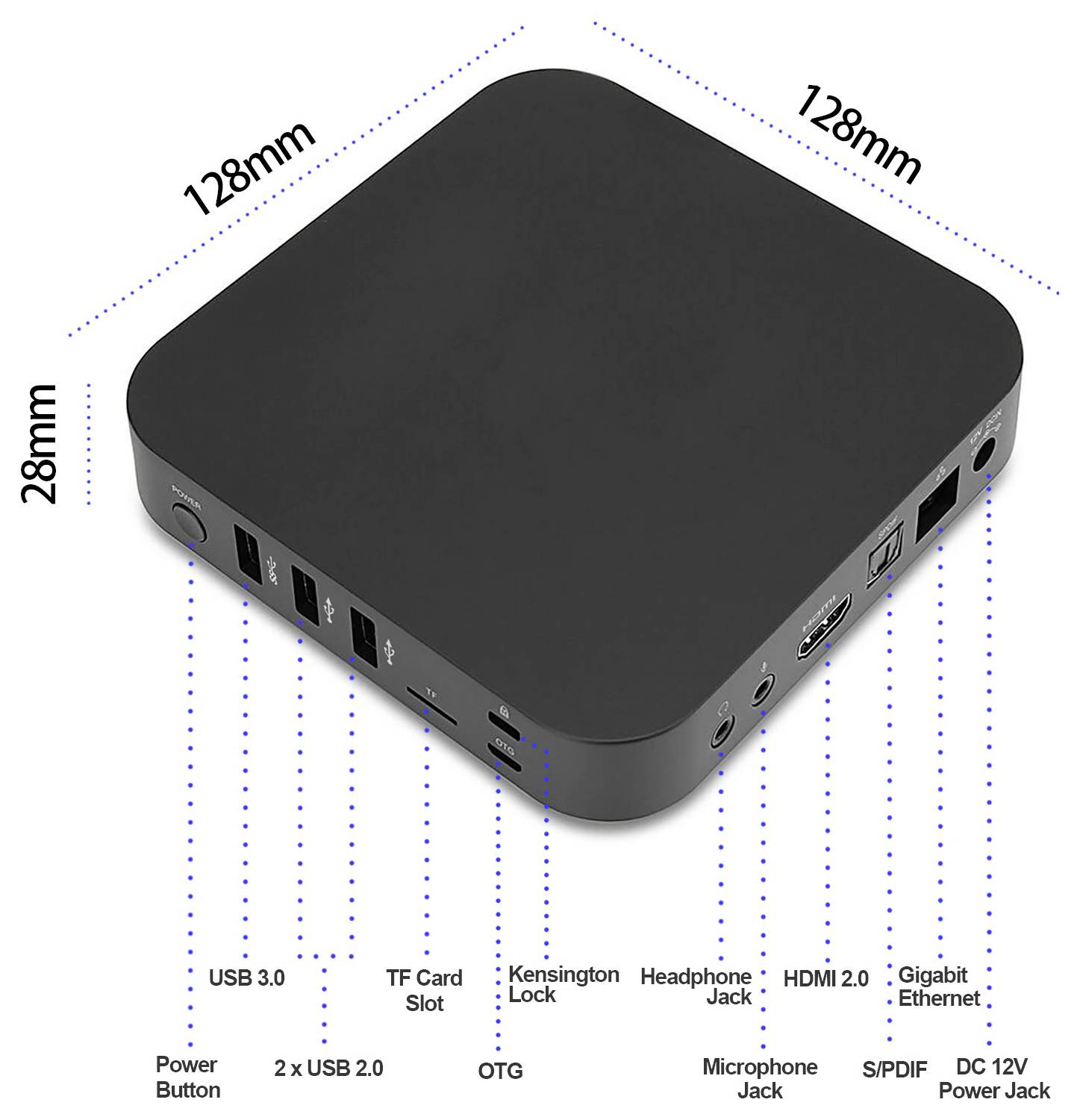

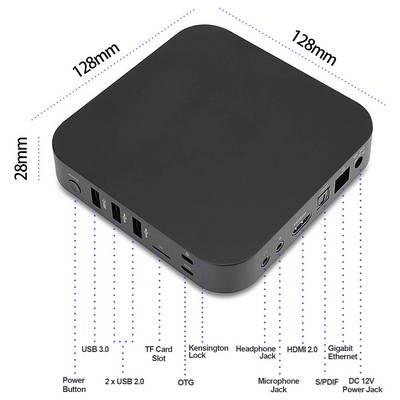

- Width
128 mm
- Height
28 mm
- Depth
128 mm
- Weight
270 g
- PSU power
24 W
- Operating system (Version)
Android™ 11
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3759795 Minix Android Mini PC ARM Cortex RK3566 Cortex - A55 Quad-Core 1.8 GHz 4 GB RAM 32 GB eMMC ARM Mali-G52 MINIX X35-i Max
Description
The Minix X35-i Max is a robust digital signage media player specially developed for commercial and industrial use. Fitted with the operating system Android 11.0, 4 GB DDR4 RAM and 32 GB eMMC memory, the device offers the necessary prerequisites for 24/7 continuous operation. The system can be flexibly integrated into different application scenarios such as vending machines, cash systems, information screens or robotics.
Designed for continuous operation
Equipped with an RK3566 Cortex-A55 quad-core processor, the media player delivers reliable performance for commercial applications. The hardware components are explicitly designed for continuous 24/7 usage, allowing WAS companies to operate their digital displays and terminals in a stable manner.
Fanless design
The device has a passive, fanless cooling system with an aluminum casing for an efficient heat dissipation. The elimination of mechanical fans ensures a silent operation, reduces the penetration of dust and thus reduces the general maintenance costs.
Extensive network connection
For a fast and stable data transfer the player offers a cabled Gigabit-Ethernet connection as well as the latest Wi-Fi 6 technology. In addition, Bluetooth® technology (version 5.0) is available for wireless connection of accessories. This facilitates flexible integration into different IT infrastructures.
High-resolution image output and touch support
The HDMI port enables highly detailed 4K Ultra HD resolution (up to 60 Hz) content display. In addition, the system is compatible with touch-screen displays, which enables interactive advertising solutions or direct user interfaces to be implemented.
Energy efficiency and safety of equipment
The system operates on a 12 volt power supply and is characterized by a relatively low power consumption. Integrated surge protection and electrostatically secure interfaces protect the hardware from fluctuations in everyday industrial life.
Pre-rooted firmware
The player comes with pre-rooted (pre-rooted) firmware. This gives administrators and developers the access they need to make more in-depth system customizations for specific business needs.
Trademark Notice: HDMI® is a registered trademark of HDMI Licensing L.L.C.
This text is machine translated.
Designed for continuous operation
Equipped with an RK3566 Cortex-A55 quad-core processor, the media player delivers reliable performance for commercial applications. The hardware components are explicitly designed for continuous 24/7 usage, allowing WAS companies to operate their digital displays and terminals in a stable manner.
Fanless design
The device has a passive, fanless cooling system with an aluminum casing for an efficient heat dissipation. The elimination of mechanical fans ensures a silent operation, reduces the penetration of dust and thus reduces the general maintenance costs.
Extensive network connection
For a fast and stable data transfer the player offers a cabled Gigabit-Ethernet connection as well as the latest Wi-Fi 6 technology. In addition, Bluetooth® technology (version 5.0) is available for wireless connection of accessories. This facilitates flexible integration into different IT infrastructures.
High-resolution image output and touch support
The HDMI port enables highly detailed 4K Ultra HD resolution (up to 60 Hz) content display. In addition, the system is compatible with touch-screen displays, which enables interactive advertising solutions or direct user interfaces to be implemented.
Energy efficiency and safety of equipment
The system operates on a 12 volt power supply and is characterized by a relatively low power consumption. Integrated surge protection and electrostatically secure interfaces protect the hardware from fluctuations in everyday industrial life.
Pre-rooted firmware
The player comes with pre-rooted (pre-rooted) firmware. This gives administrators and developers the access they need to make more in-depth system customizations for specific business needs.
Trademark Notice: HDMI® is a registered trademark of HDMI Licensing L.L.C.
This text is machine translated.

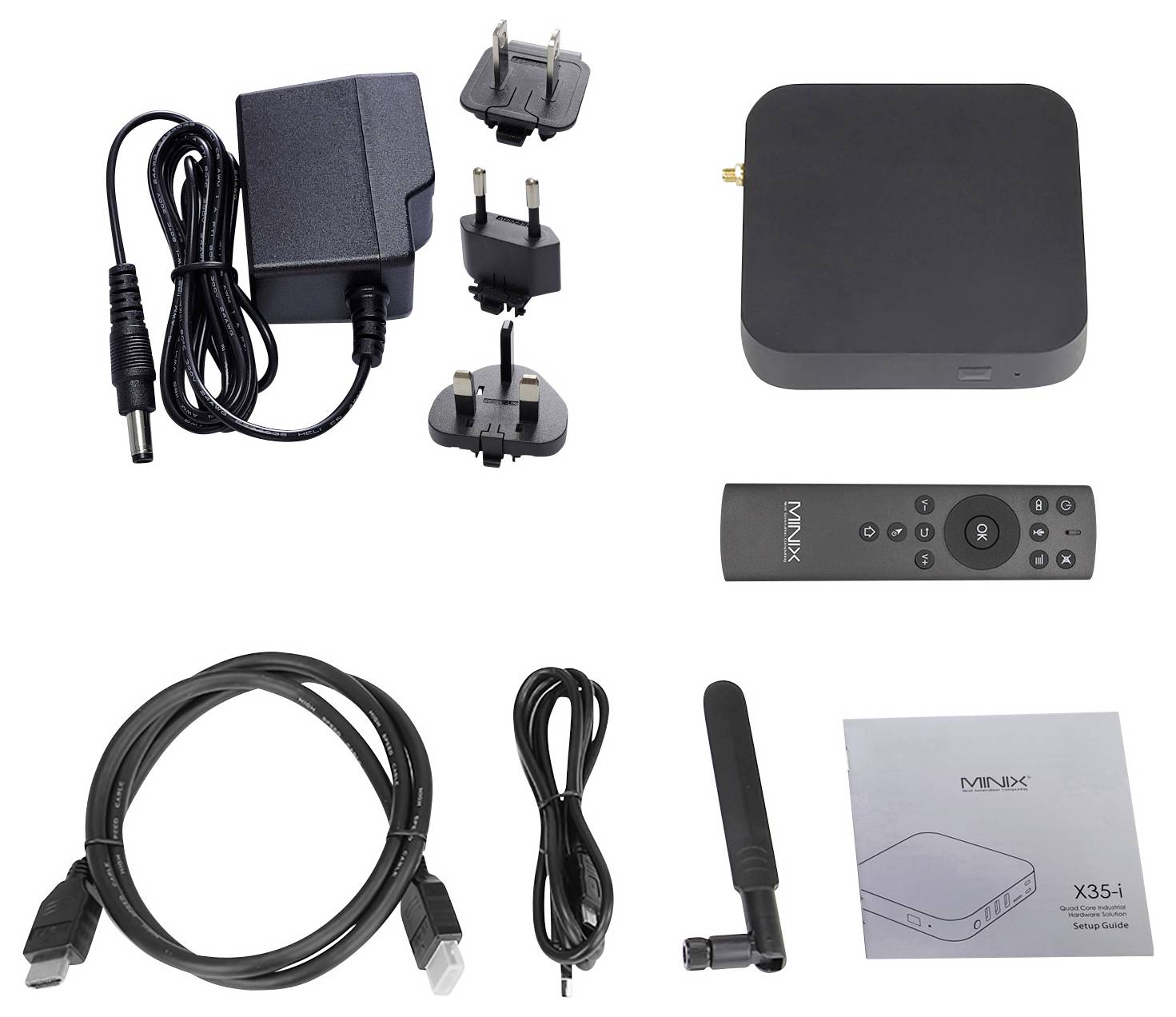

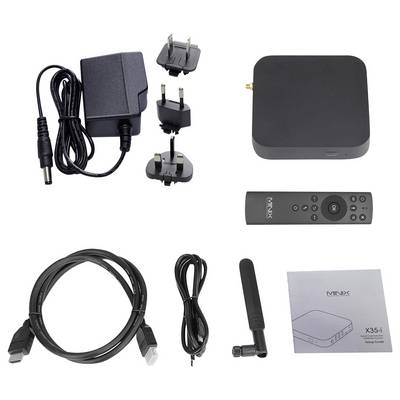

Scope of delivery
- Minix X35-i Max
- Remote control
- HDMI cable
- USB power adapter
- Micro USB cable
- Dual-band antenna
- Manual
Hints
HDMI® is a registered trademark of HDMI Licensing LLC
Image may differ from actual product.
