Omnitronic LH-020 3-channel
EAN:
Part number:
Item no:
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
Highlights & Details

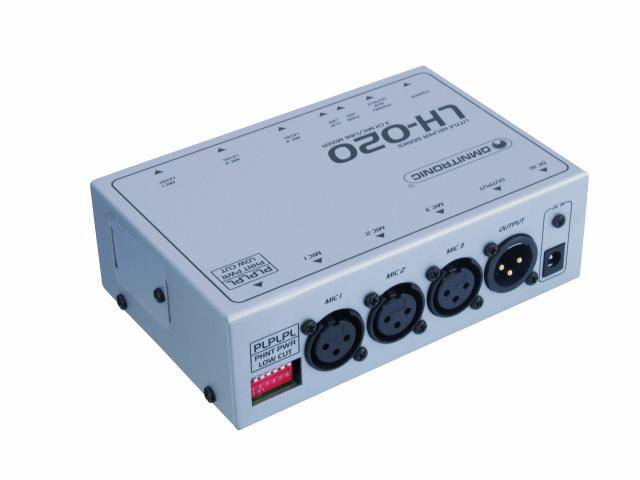

Omnitronic LH-020 3-channel microphone mixer
- 3-channel microphone mixer
Technical specifications
- Voltage supply: 12 V DC / 150 mA
- Phantom power: 18V DC
- Input impedance: 600 Ohms
- Output impedance: 600 Ohms
- Max. Input Level: -14 dB
- Max. Output level: +14 dB
- Gain: 60 dB
- 0.02 % distortion factor
- Frequency response: 25 Hz - 16 KHz
- Noise Ratio:> 75 dB
- Dimensions: 143 x 93 x 45 mm
- Weight: 555 g
- Product type
Microphone mixer
- Dim
(L x W x H) 143 x 230 x 85 mm
- Weight
900 g
- Length
143 mm
- Width
230 mm
- Height
85 mm
- No. of inputs
3 x
- Channels
3
- Depth
135 mm
- Interfaces
XLR out
XLR in
6.35 mm headphone out
- No. of microphone XLR inputs
4 x
- No of. XLR outputs
1 x
- No. of 6.3 mm headphone outputs
1 x
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 313052 Omnitronic LH-020 3-channel
Description
3-channel microphone mixer · For connection of 3 microphones on, for example, a line-in input of a mixing desk · 3 channels with separate volume controls as well as connectable/m phantom power and low cut · Power/clip LED · Inputs and outputs via balanced XLR connections. · Power supply via the mains unit
