Osram Automotive OEBCS906 4052899620537 Automatic charger 6 V, 12 V 2 A, 6 A
EAN:
Part number:
Item no:
Number
Total (€ 50.41 / piece)
€ 50.41
plus VAT.
Highlights & Details
Intelligent Charger BATTERY CHARGE 906
- Compatible with stop/start function
- 9Stufen charging procedure for lead acid batteries
- 7Stufen lithium charging profile
- Bad weather charging mode
- LC screen
- Polarity reversal and short-circuit protection
- Automatically sets to long-term maintenance mode
- This text is machine translated.
Technical specifications
- Product type
Automatic charger

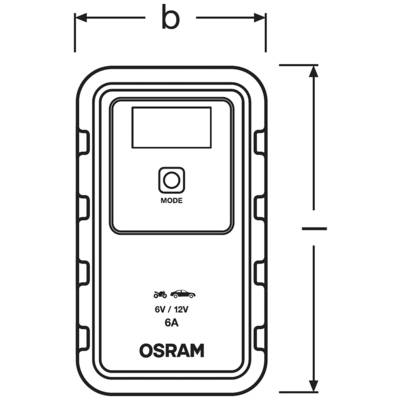

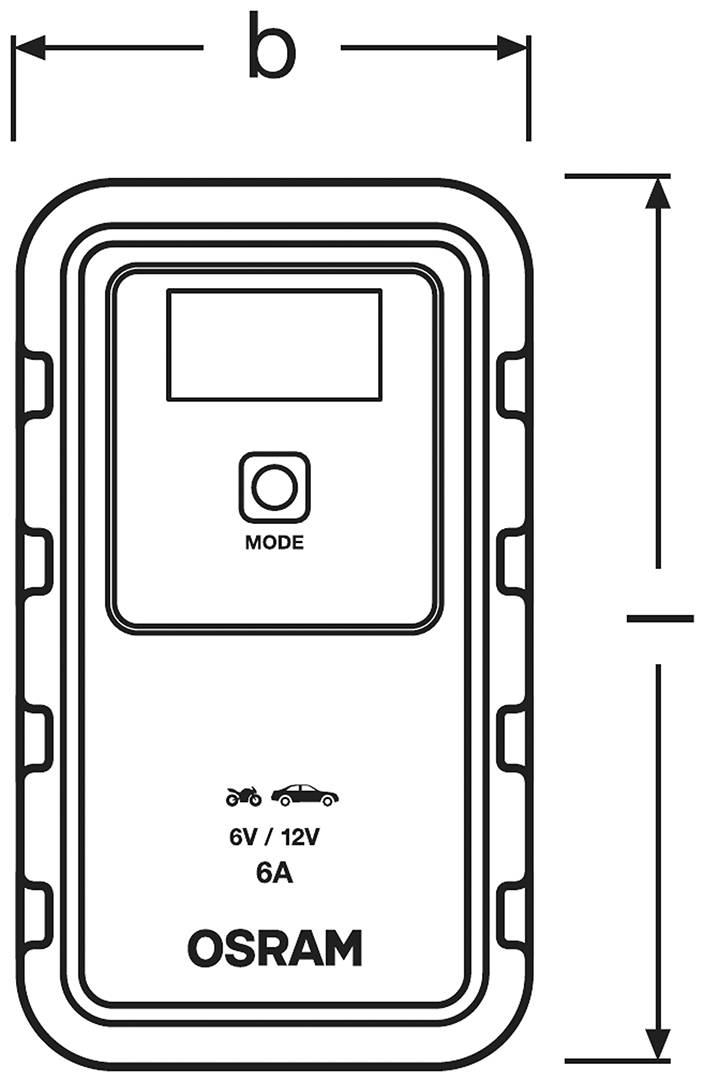

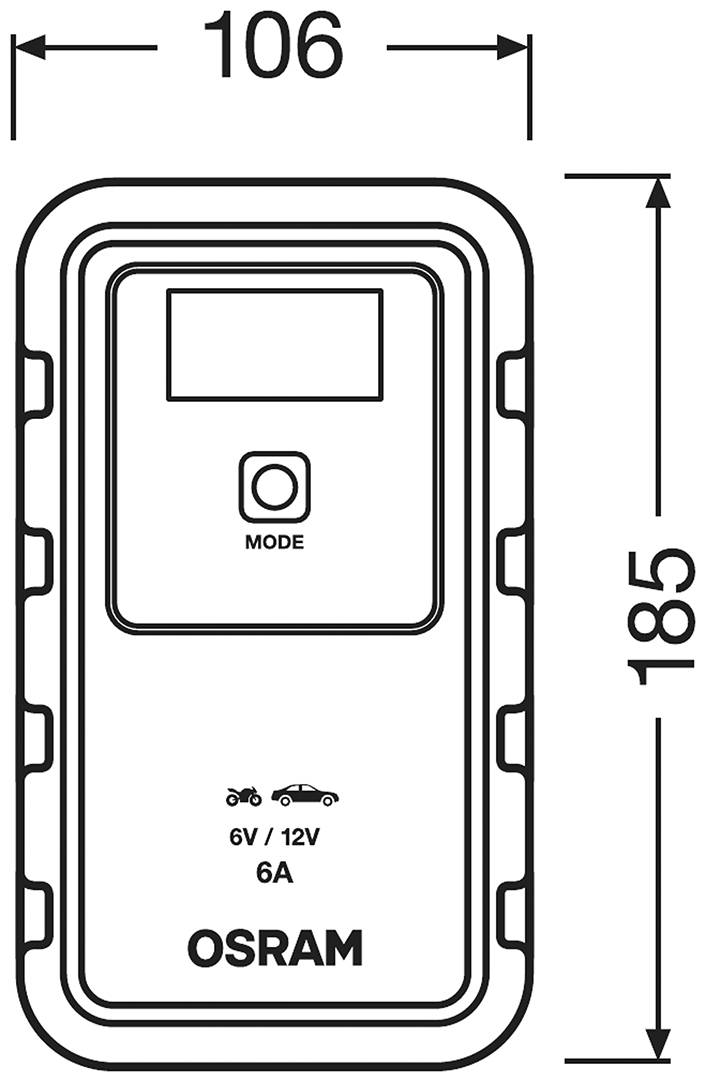

- Dim
(L x W x H) 185 x 64 x 106 mm
- Battery voltage
6 V
12 V
- Operating voltage
230 V / AC
- Recommended battery capacity at 12 V max.
160 Ah
- Recommended battery capacity at 6 V max.
110 Ah
- Suitable for
VRLA AGM
PbCa
SLA
Lead acid
VRLA AGM
Lithium
- Weight
800 g
- Features
Battery test
Refresher/regenerator
Battery tester
Charge monitoring
Battery life protection
Suitable for start-stop systems
Multiple charging modes
- Battery charging function
9stufig & 7stufig
- Charging current at 12 V
2 A
6 A
- Charging current at 6 V
2 A
6 A
- Width
64 mm
- Height
106 mm
- Length
185 mm
IP65
- Max. charging current
2 A
4 A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2317218 Osram Automotive OEBCS906 4052899620537 Automatic charger 6 V, 12 V 2 A, 6 A
Warranty Terms
Warranty Terms 2317218 Osram Automotive OEBCS906 4052899620537 Automatic charger 6 V, 12 V 2 A, 6 A
Description
Intelligent battery charger and battery maintenance device with multi-stage charging cycle. The OSRAM BATTERY Charger 906 is an intelligent 6A charger and battery maintenance device for 6V to 12V vehicles as well as most box wagons and delivery wagons. At the push of a button, a 7-stage charging cycle is started for lithium batteries and a 9-stage charging cycle for lead-acid/AGM batteries. Has a digital display for simplifying the charging process and a variety of safety functions including polarity reversal protection and overvoltage protection. Simply connect and be sure that the charger is waiting for your car battery: It automatically switches to the long-term maintenance mode as soon as the battery is fully charged.
This text is machine translated.
This text is machine translated.
Features
- Selection of up to 3A or 6A charging current - select the optimum charging current for your battery type
- for 6 and 12 V vehicles
- 110Ah charging and 160Ah maintenance mode
- compatible with stop/start function
- 9-stage charging process for lead acid/AGM batteries
- 7-stage lithium charging profile
- bad weather charging mode, which protects the batteries in cold temperatures

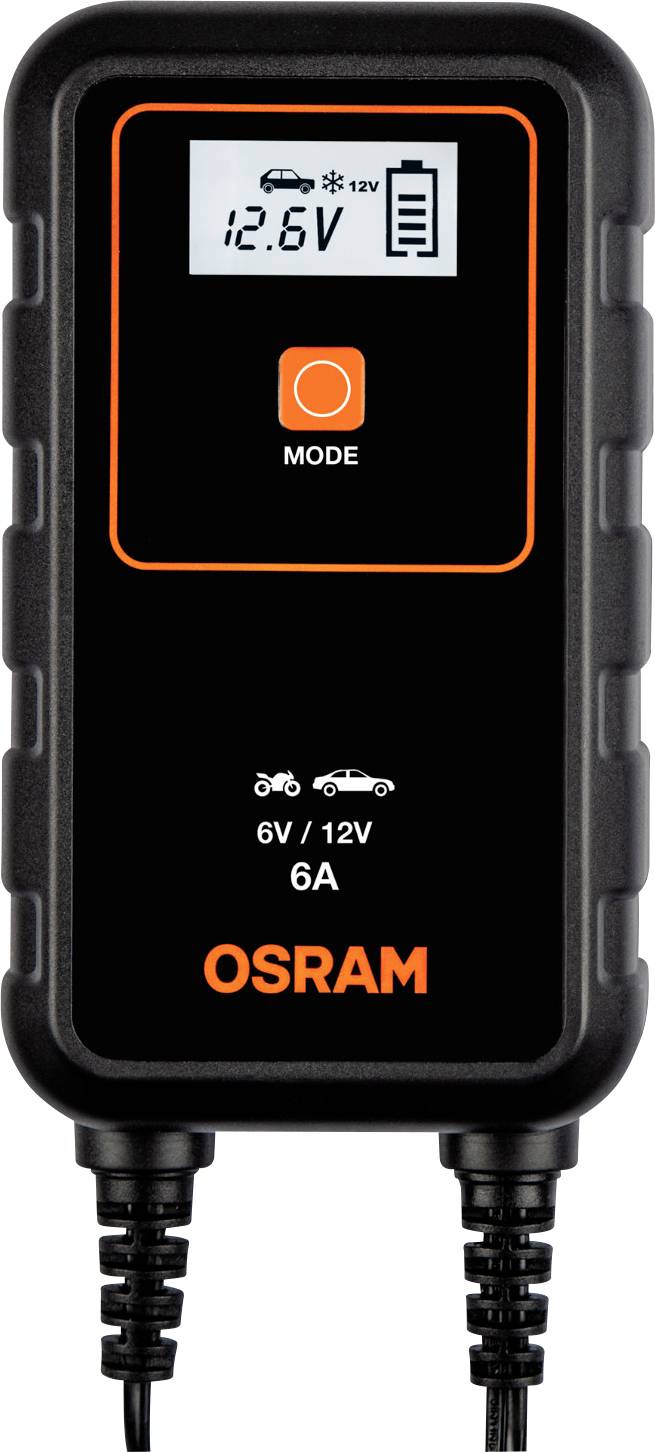

- LC screen that clearly displays voltage and charging
- Backlit display can be read even in poor light conditions
- One-button operation for easy operation
- Quick connector with terminals or O-ring connections for long-term connections
- Reverse polarity and short-circuit protection
- automatically sets to long-term maintenance mode when the battery is fully charged
Scope of delivery
- Incl. Terminals
- O-ring connector
