Buy PCE Instruments PCE-VA 20-SET Anemometer

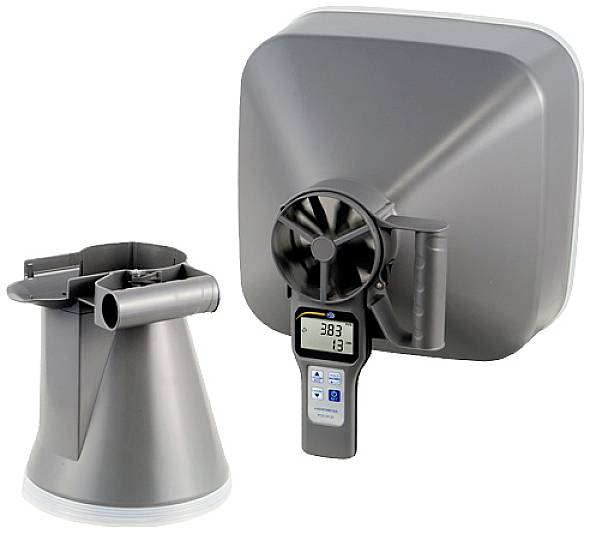

Two anemometers for measuring air flow and volume flow. One displays a digital screen with readings in cubic metres per hour.

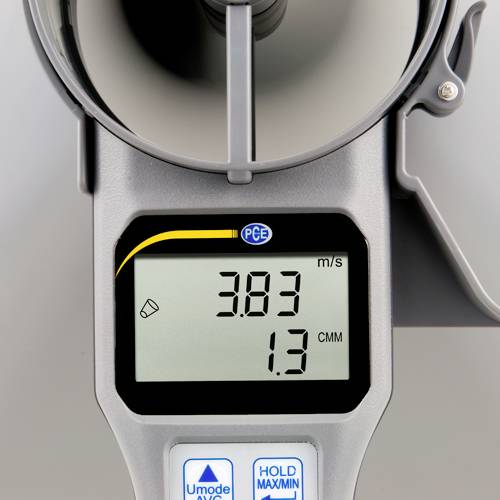

Digital anemometer showing wind speed of 3.83 m/s, air flow of 1.3 CMM on the display, device in close-up.

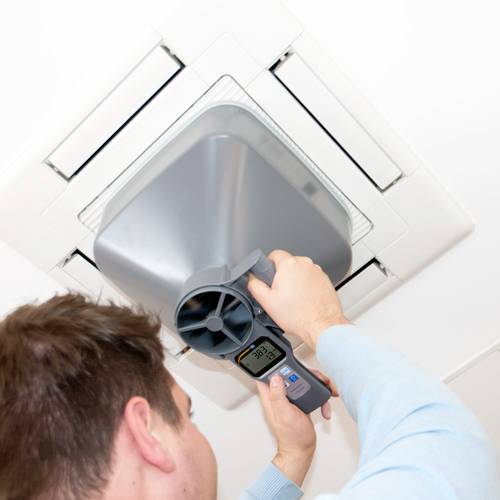

A man is adjusting the ventilation unit in the ceiling using a measuring device. The display shows the temperature. Workplace installation.

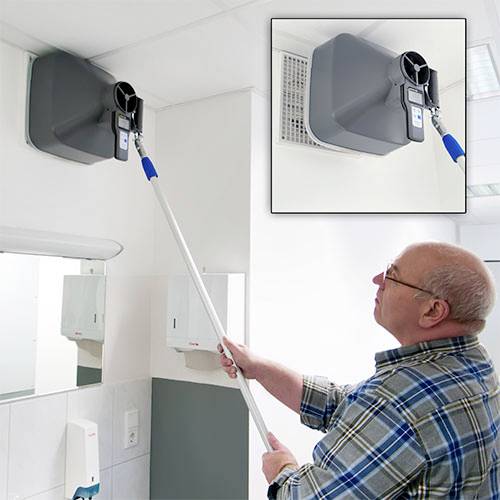

A man is measuring the air flow at a ventilation opening in an office or laboratory room using a device mounted on the ceiling.

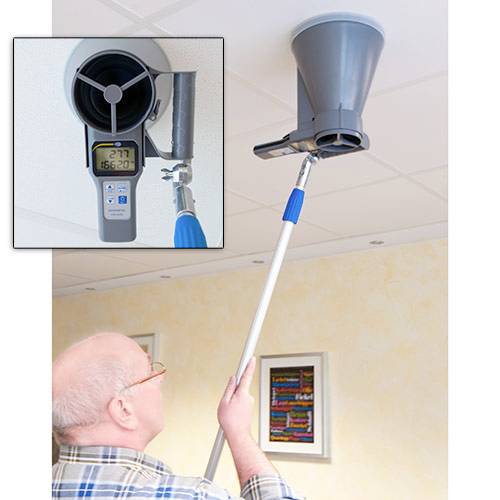

A man is measuring indoor air quality at the ceiling using a special device on an extending pole; the display shows '167.2'.

1/5

Fast track dispatch on Mon, 14 Sep

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 441.18 / piece)

€ 441.18

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Highlights & Details

Anemometer PCE-VA 20-SET with volume flow hood

Measurement of wind speed
Measurement of temperature and humidity
Dew point temperature and wet bulb temperature
Volume flow hoods included
Extreme value measurement
Hold function
Impeller Ø 100 mm
automatic cut-off function

Technical specifications

Measurement range - wind speed 0.2 ... 30 m/s Wind speed accuracy < 20 m/s: ±(1.5% MW + 0.3 m/s) > 20 m/s: ±(3% MW + 0.3 m/s) Measurement range air temperature -20 ... +60 °C Air temperature accuracy ±0.6 °C. Air temperature resolution 0.1 °C / °F. Measuring range of air humidity 0.1 ... 99.9 % r.F. Accuracy of humidity ±3 % r.h. (At 25 °C and 10...90 % r.F.) otherwise: ±5 % r.h.. Humidity resolution 0.1 % r.h. Response time temperature 60 seconds Response time air humidity 60 seconds LCD update 1 x per second Display of wet bulb temperature -20 ... +59.9 °C Dew point temperature display -5 ... +59.9 °C Display volume flow 0 ... 99999 m³/min. Resolution volume flow 0.1 m³/min (0...9999.9 m³/min) 1 m³/min (10000...99999 m³/min) Automatic power off after 20 minutes of inactivity Size LCD 32.5 x 54 mm (H x W) Power supply 4 x 1.5 V AAA batteries Operating conditions 0 ... +50 °C,< 80% r.h. Storage conditions -10 ... +50 °C,< 90% r.h. Dimensions 269 x 106 x 51 mm Weight approx. 200 g

Product type: Anemometer

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2452697 PCE Instruments PCE-VA 20-SET Anemometer

Description

Anemometer with volumetric flow hood PCE-VA 20-SET Measurement of wind speed, volume flow, temperature, Humidity Dew point and wet bulb temperature / Backlight / 10 cm impeller diameter Extreme measurement / HOLD function / automatic shut-off The PCE-VA 20 anemometer in the set with volume flow hood is used to measure the flow rate and the volume flow in the area of maintenance of ventilation and air conditioning systems. In addition, the anemometer can measure climate parameters such as temperature and air humidity with its volume flow hood. The measuring device calculates the dew point (DP) and wet bulb temperature (WBT) from this. All measured and calculated parameters are shown by the anemometer with volume flow hood on the two-line LCD display. The upper part of the display shows the flow speed, air humidity and the mean value in the mean value mode. The lower display shows the temperature, volume flow, wet bulb temperature and dew point, depending on the measuring mode. For a better and faster measurement evaluation, the user can use the anemometer with a volume flow hood to perform a maximum, minimum and average measurement. The anemometer is powered by four 1.5 V AAA batteries. The anemometer with volume flow hood can be used mobile. In addition to the anemometer, the scope of delivery of this measuring set also includes 2 volume flow hoods that can be attached directly to the display unit. The volume flow hoods are suitable for measurements of the air mass at round and angular channel exits or entrances.

This text is machine translated.
