Buy PCE Instruments Refractometer

$A digital refractometer with LCD display that measures the refractive index of a liquid.$

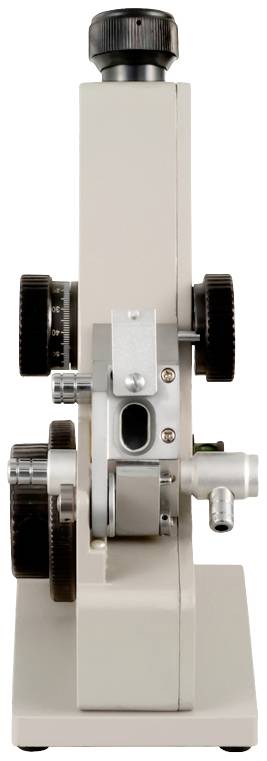

A white microscope, side view, shows focusing knobs and objective mount.

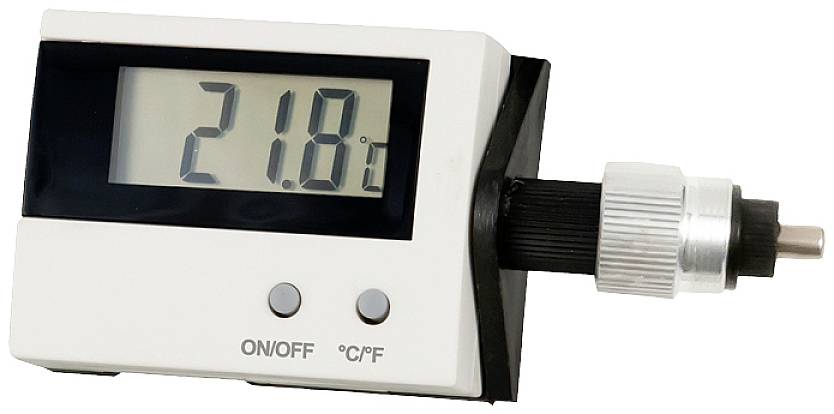

Digital thermometer shows 21.8 degrees Celsius. Device with on/off and temperature buttons.

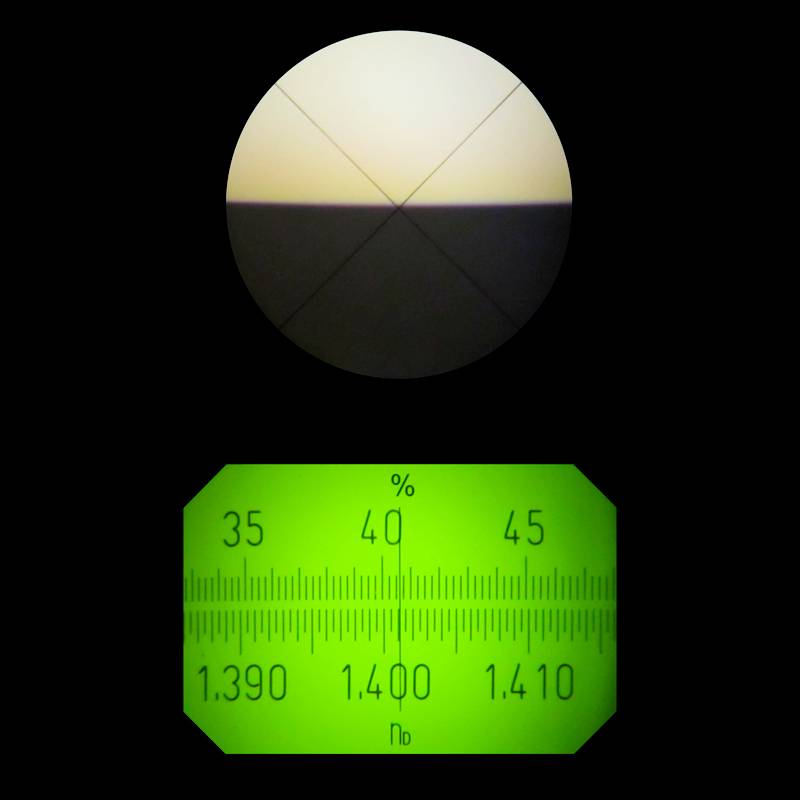

A horizon image with a grid and a scale from 35 to 45 percent below it; the value indicates 40 percent.

A man is examining a slide under a microscope in the laboratory. Several containers with liquids are placed on the table.

1/5

Datasheet (PDF)

Fast track dispatch on Wed, 5 Aug

46 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 721.85 / piece)

€ 721.85

plus VAT.

Report legal concerns

Highlights & Details

Refractometer

Easy to operateMeasures refraction index and sugar contentRobust cast housingHigh resolution:Wide range of applicationsScrew-in thermometer

Technical specifications

Refraction Index: 1.300 - 1.700 NDResolution 0.005 NDAccuracy ±0.005 NDSugar content: 0 - 95 %0.25% resolutionAccuracy ± 0.25 %

Length: 160 mm

Width: 90 mm

: Manufacturer's standards (no certificate)

Display: Digital

Reading type: Refraction index
Brix

Weight: 3 kg

Product type: Refractometer

Documents & Downloads

Datasheet

Datasheet 2583838 PCE Instruments Refractometer

User & Safety Instructions

User & Safety Instructions 2583838 PCE Instruments Refractometer

Security datasheet

Security datasheet 2583838 PCE Instruments Refractometer

Description

With the agricultural measuring device you get a measuring device for a fast and accurate determination of the refraction index ND between 1,300 and 1,700. The Agrar-Meter also measures the sugar content of translucent liquids, dispersions, emulsions or other substances. Using the thermometer supplied, the refraction index can be determined for a temperature range of 0 to +70 °C. For temperature control of the device, adapters for water hoses are attached on both sides to the agricultural measuring device at the upper and lower prism holders, which permit temperature control by means of external thermostats. With this agricultural measuring device you can, for example, determine the exact sugar content in the range 0 - 95 % (1,333 ... 1.5 31). However, the application area is considerably larger: Measurement and analysis of fats, oils, paints, varnishes, foodstuffs, Chemical substances, alcohol and solvents.

This text is machine translated.

Scope of delivery

1 x agricultural measuring device PCE-ABBE-REF 2 1 x reference block 1 x bottle of Bronaphthalene 1 x screwdriver 1 x screw-in thermometer 1x user manual
