Buy Peter Electronic VersiStart II plus 400-12 26300.40012 Soft starter Motor power at 400 V 5.5 kW 400 V AC Nominal current

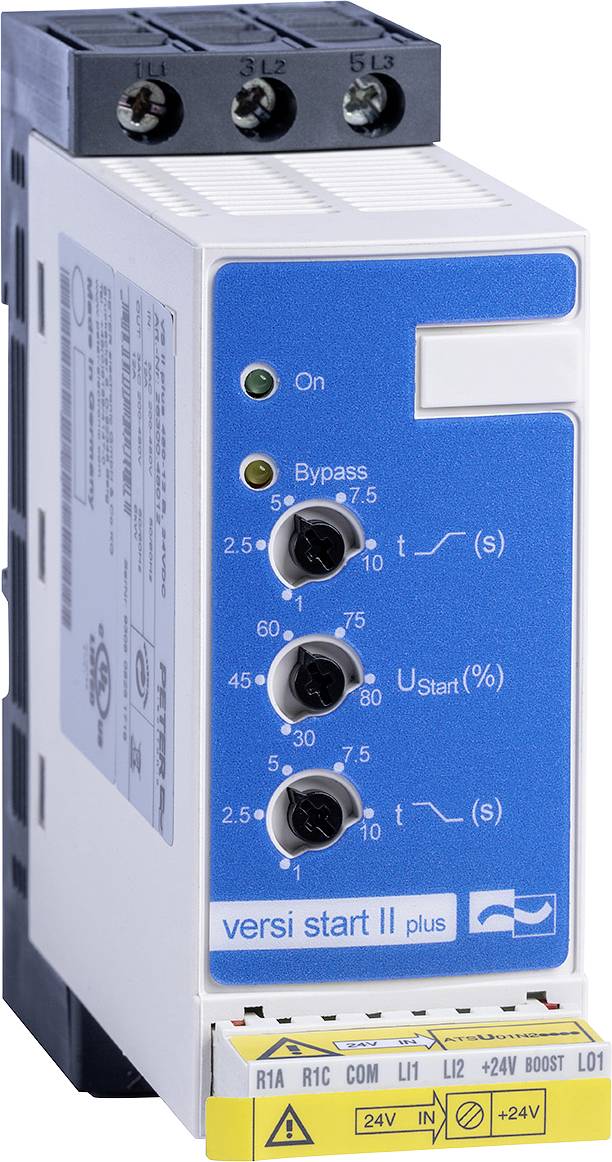

'A motor starter device with control knobs and indicators labeled On, Bypass, and settings for start voltage and time. Model: versi start II plus.'

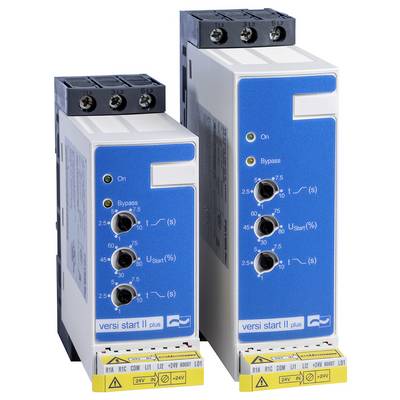

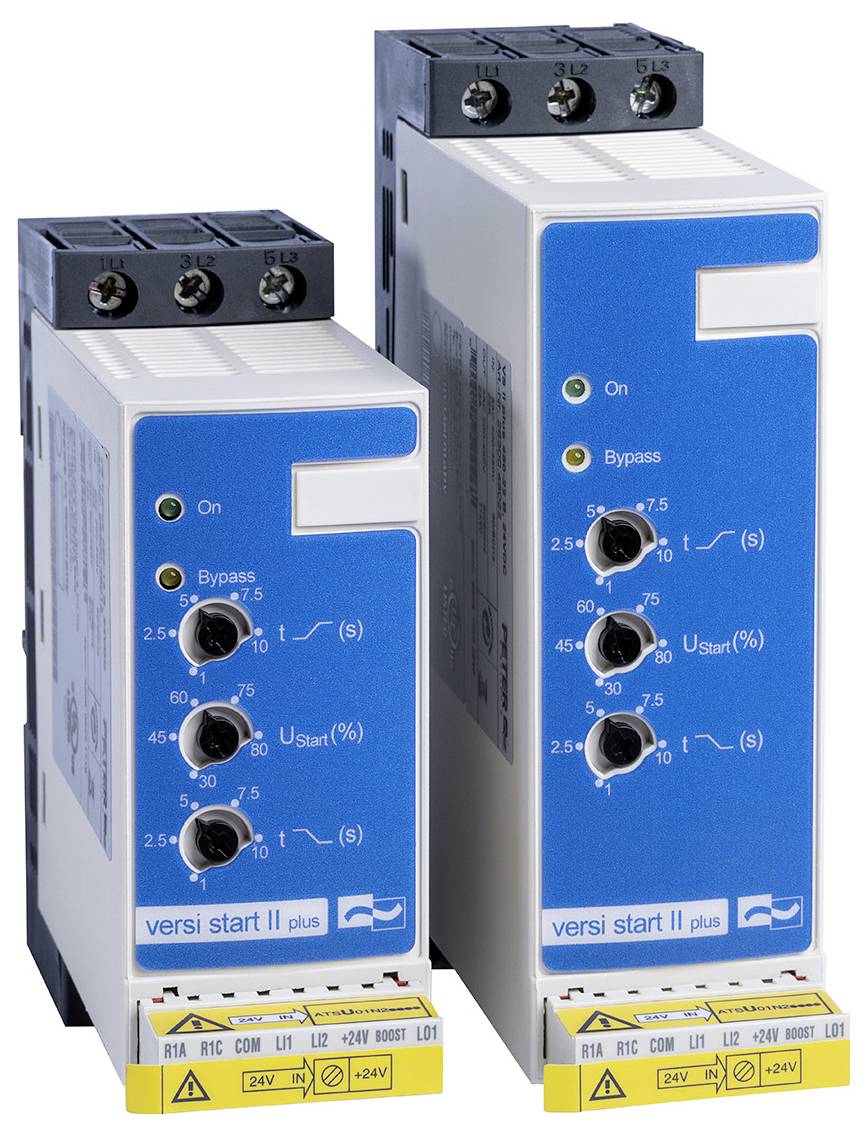

'VersiStart II plus' electronic components featuring bypass and time settings. Blue front panels with control knobs and indicator lights.

1/2

Datasheet (PDF)

Fast track dispatch on Wed, 9 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 134.45 / piece)

€ 134.45

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

Soft start-up device VersiStart II plus 400-12

Two-phase-controlled soft start-up device
Microcontroller synchronised
Optimised soft start-up
Current and three-phase reduction with start-up
Simple installation, to snap open on 35 mm standard rail or directly mountable
Integrated bypass relay
Parameterization with three potentiometers
No network neutral conductor (N) required
Replacement for Stern-/Dreieckschalter Inclusive bulb
Control side screw terminals
Compact design - 45 x 124 x 131mm (6-12A)
Protection type IP20

Technical specifications

Protection type IP20
Start-up time: Adjustable from 1...10 s.
Start voltage: Adjustable from 30...80% of the nominal voltage
Weighs 0.3 kg.

Motor voltage: 3x380-415 V AC

Product type: Soft starter

Supply current: 12 A

Motor power at 400 V: 5.5 kW

Operating voltage: 3x380-415 V AC

Nominal voltage: 400 V AC

Operating phases: 2

Type: Two-phase-controlled soft start-up device, micro-controller controlled

Manufacturer part #: 26300.40012

Nominal current: 12 A

Nominal current - rounded value: 12 A

Type: VersiStart II plus 400-12

Motor power at 230V / 400V: 5,5 kW

Slow-down time: 1...10 s

Dim: (L x W x H) 131 x 45 x 124 mm

Connection: Screw terminal

Power rating: 24 V DC

Width: 45 mm

Height: 124 mm

Length: 131 mm

Max. temperature: 50 °C

Min. temperature: -10 °C

Documents & Downloads

Datasheet

Datasheet 3715765 Peter Electronic VersiStart II plus 400-12 26300.40012 Soft starter Motor power at 400 V 5.5 kW 400 V AC Nominal current

User & Safety Instructions

User & Safety Instructions 3715765 Peter Electronic VersiStart II plus 400-12 26300.40012 Soft starter Motor power at 400 V 5.5 kW 400 V AC Nominal current

Description

The VersiStart II plus soft start units extend the 2-phase series by a further five power variants from 6 to 32A. The "Plus" offers even more robustness, high performance and high maximum switching frequency.

This text is machine translated.

Features

Soft start-up and deceleration
Potential free control input for soft acceleration and deceleration
3 separate adjustable parameters: Start-up time, start-up voltage, slow-down time
Boost start can be selected
Potential-free relay output (closed when engine is running)
