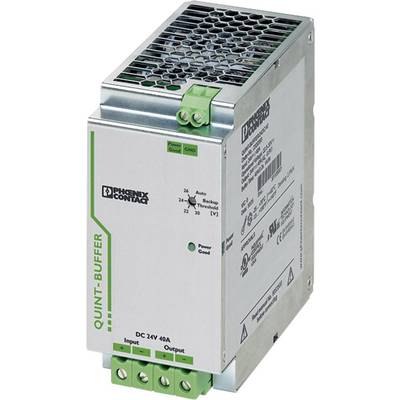

Phoenix Contact QUINT-BUFFER/24DC/24DC/40 2320393 Energy storage
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 533.61 / piece)
€ 533.61
plus VAT.
Highlights & Details
Buffer Module
- Maintenance-free capacitor-based buffer module
Technical specifications
- Ambient temperature (operation): -25 up to 70 °C
- Input voltage
24 V/DC
- Product type
Energy storage
- Nominal power
960 W
- No. of outputs
1 x
- Input voltage (max.)
30 V DC
- Min. input voltage
18 V DC
- Output voltage (max.)
30 V DC
- Output voltage (min.)
18 V DC
- Dim
(W x H x D) 64 x 130 x 125 mm
- Weight
1.1 kg
- Width
64 mm
- Height
130 mm
- Depth
125 mm
- Type
QUINT-BUFFER/24DC/24DC/40
- Bridging time, max load
0.2 s
64
130 mm
131.6 mm
Other
TRUE
FALSE
Documents & Downloads
Datasheet
Datasheet 512962 Phoenix Contact QUINT-BUFFER/24DC/24DC/40 2320393 Energy storage
User & Safety Instructions
User & Safety Instructions 512962 Phoenix Contact QUINT-BUFFER/24DC/24DC/40 2320393 Energy storage
Description
Short-term mains interruptions are bridged by QUINT BUFFER, a maintenance-free capacitor-based buffer module with SFB technology (selective fuse breaking technology).
