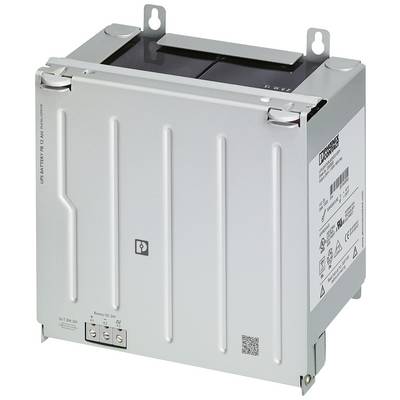

Phoenix Contact UPS-BAT/PB/24DC/12AH 1274119 Energy storage
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 201.67 / piece)
€ 201.67
plus VAT.
Technical specifications
- Charging current: 3.6 ABattery technology: VRLA AGMOutput fuse 2 x 25 AStar: 10 mm² - 16 mm²Flexible: 10 mm² - 16 mm²Stripped length: 10 mmTightening torque 1.2 Nm - 1.5 NmProtection class: IP20Protection class IIIPollution level: 2Case material: metalDesign of the casing: Zinc-plated steel sheet, powder-coated
- Input voltage
24 V DC
- Product type
Energy storage
- Input voltage (max.)
24 V DC
- Output voltage (max.)
24 V DC
- Dim
(W x H x D) 202 x 202 x 110 mm
- Rechargeable battery capacity (details)
12 Ah
- Connections
Screw connector
- Output current (details)
50 A
- Weight
9.4 kg
- Width
202 mm
- Height
202 mm
- Depth
110 mm
- Type
UPS-BAT/PB/24DC/12AH
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2817126 Phoenix Contact UPS-BAT/PB/24DC/12AH 1274119 Energy storage
User & Safety Instructions
User & Safety Instructions 2817126 Phoenix Contact UPS-BAT/PB/24DC/12AH 1274119 Energy storage
Description
For continuous monitoring and intelligent management there is constant communication with the QUINT UPS. A quick installation is possible through the automatic recognition of the energy storage and tool-free change during operation. The energy storage units for QUINT UPS with IQ Technology leave the warehouse fully charged.
This text is machine translated.
This text is machine translated.
Features
- Parallel switching capacityIQ technologyTemperature sensorSuitable for quick charging
