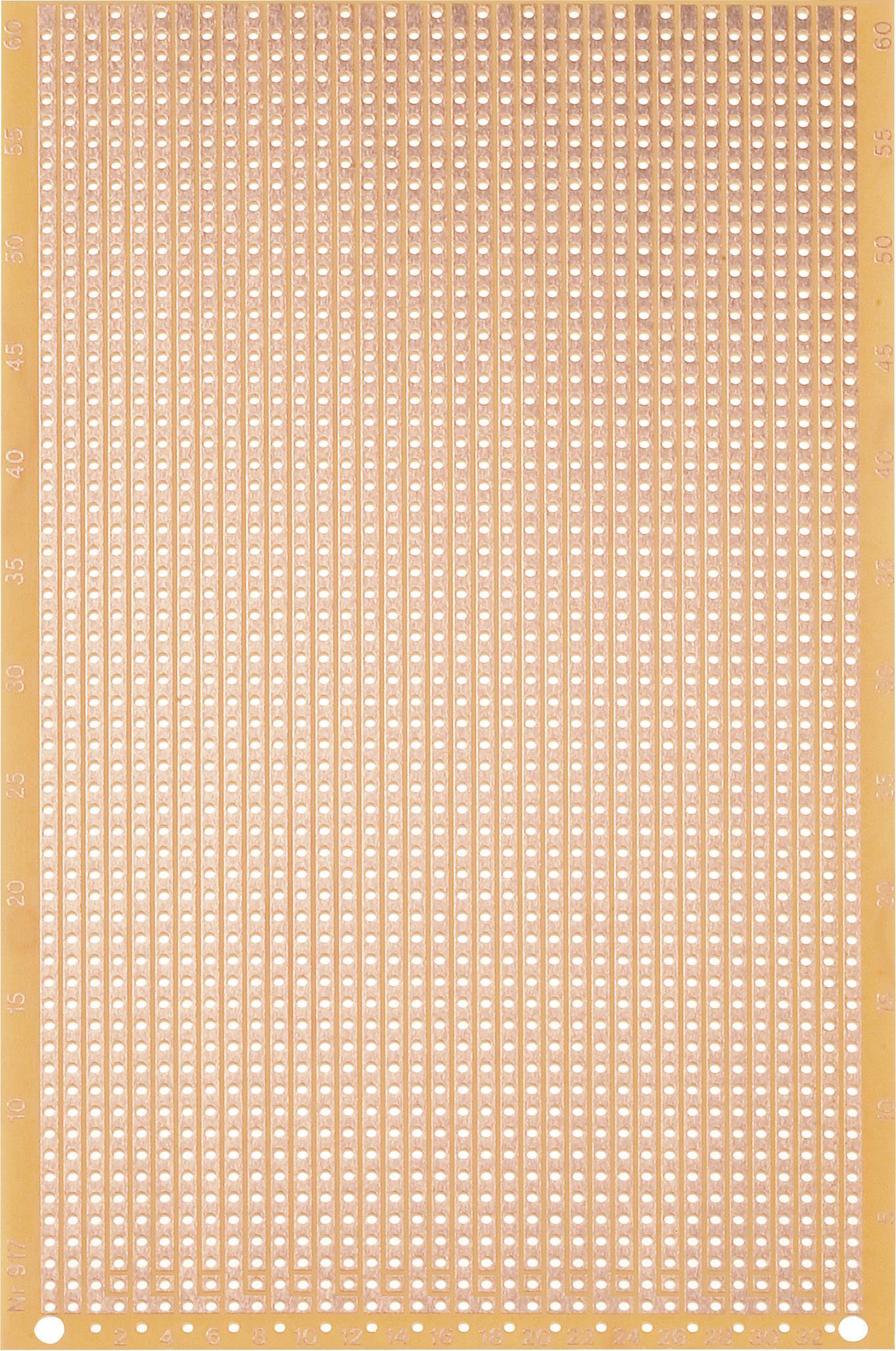

Rademacher VK C-917-HP Laboratory Card HP With plug strip connection and mounting holes for 32-pin Plug according to DIN
EAN:
Part number:
Item no:
Product type
Prototyping PCB
Material
Phenolic paper
Length
16 cm
Width
10 cm
CS
2.54 mm
Datasheet (PDF)
Quantity (Piece(s))
Unit Price
Package size (plus VAT.)
1
1 M2 = € 340.63
€ 5.45
5
1 M2 = € 320.63
€ 5.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (1 m2 = € 340.63)
€ 5.45
plus VAT.
Technical specifications
- Product type
Prototyping PCB
- Type
With plug strip connection and mounting holes for 32-pin Plug according to DIN 41612 model D
- Material
Phenolic paper
- Length
16 cm
- Width
10 cm
- CS
2.54 mm
- Connector spacing
5.08 mm
- Dim
(L x W) 16 cm x 10 cm
- No. of conductor strips
36
- Copper coating (thickness)
35 µm
- Hole Ø
1 mm
- Material thickness
1.5 mm
- Content
1 pc(s)
- Type
WR-Typ 917
- Material (details)
HP with copper.-edition
Documents & Downloads
Datasheet
Datasheet 527345 Rademacher VK C-917-HP Laboratory Card HP With plug strip connection and mounting holes for 32-pin Plug according to DIN
User & Safety Instructions
User & Safety Instructions 527345 Rademacher VK C-917-HP Laboratory Card HP With plug strip connection and mounting holes for 32-pin Plug according to DIN
