RUKO 200180 HSS-R Twist drill bit 18 mm Total length 191 mm rolled DIN 338 1 pc(s)
EAN:
Part number:
Item no:
Product type
Twist drill bit
Drill hole Ø
18 mm
Content
1 pc(s)
Material
HSS-R
Material suitability
Metal
Number
Total (€ 9.24 / piece)
€ 9.24
plus VAT.
Only 6 Piece(s) available

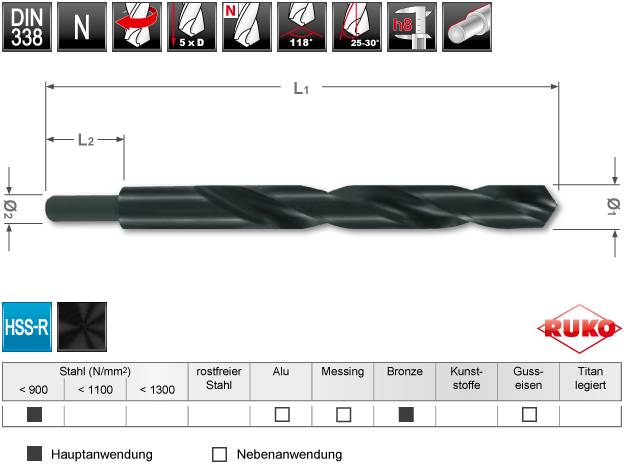

Technical specifications
- Cut direction right-handed cutting
- Shank offset shaft
- Pit-out form N: Conical sheath grinding normal ground
- Product type
Twist drill bit
- DIN standard
DIN 338
- Drill hole Ø
18 mm
- Tip angle
118°
- Content
1 pc(s)
- Material
HSS-R
- Material properties
rolled
- Material suitability
Metal
- Tensile strength (max.)
900 N/mm²
- Shank Ø
13.0 mm
- Working length
35 mm
- Total length
191 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2290864 RUKO 200180 HSS-R Twist drill bit 18 mm Total length 191 mm rolled DIN 338 1 pc(s)
Description
Ø 18.0 x 191 x 35 mm ideal for drilling larger drill diameters for all common drills with a chuck of up to 13.0 mm. - Powerful, rolled and steam-treated spiral drill bits made of high-performance high-speed steel. The material is reinforced by the manufacturing process (no interruption of the structure) and thus more elastic. This makes it more resistant to breakage and is suitable for robust drilling units. (E.g. hand drills) High-performance high-speed work steel for drilling in well-machined materials with a strength of up to 900 N/mm².
