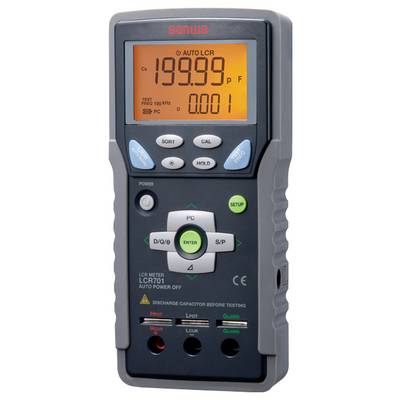

Sanwa Electric Instrument LCR701 Component tester Digital
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 516.81 / piece)
€ 516.81
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Handy LCR measuring device LCR701
- Measuring frequency DC to 100kHz
- LS / LP / CS / CP measurement with sub-parameters (D / Q / theta / ESR)
- Automatically selectable L / C / R measurement
- Device sorting mode
- This text is machine translated.
Technical specifications
- Measuring range LS/LP: 20µ/200µ/2000µ/20m/200m/2000m/20/200/2000/20kH
- Measuring range CS/CP: 200P/2000p/20n/200n/2000n/20µ/200µ/2000µ/20mF
- Measurement range RS/RP: 20/200/2k/20k/2M/20M/200MΩ
- Measurement range: 200/2k/20k/200k/2M/20M/200MΩ
- Product type
Component tester
- Reading range - resistance
till 200 MΩ
- Frequency reading range
Up to 100 kHz
- Height
184 mm
- Width
87 mm
- Length
45 mm
- Weight
400 g
Manufacturer's standards (no certificate)
- Type
LCR701
- Display
Digital
- Dim
(L x W x H) 45 x 87 x 184 mm
Documents & Downloads
Datasheet
Datasheet 2114720 Sanwa Electric Instrument LCR701 Component tester Digital
User & Safety Instructions
User & Safety Instructions 2114720 Sanwa Electric Instrument LCR701 Component tester Digital
Conformity certificate
Conformity certificate 2114720 Sanwa Electric Instrument LCR701 Component tester Digital
Description
Features
- Data hold function
Scope of delivery
- Test lead
- Manual
