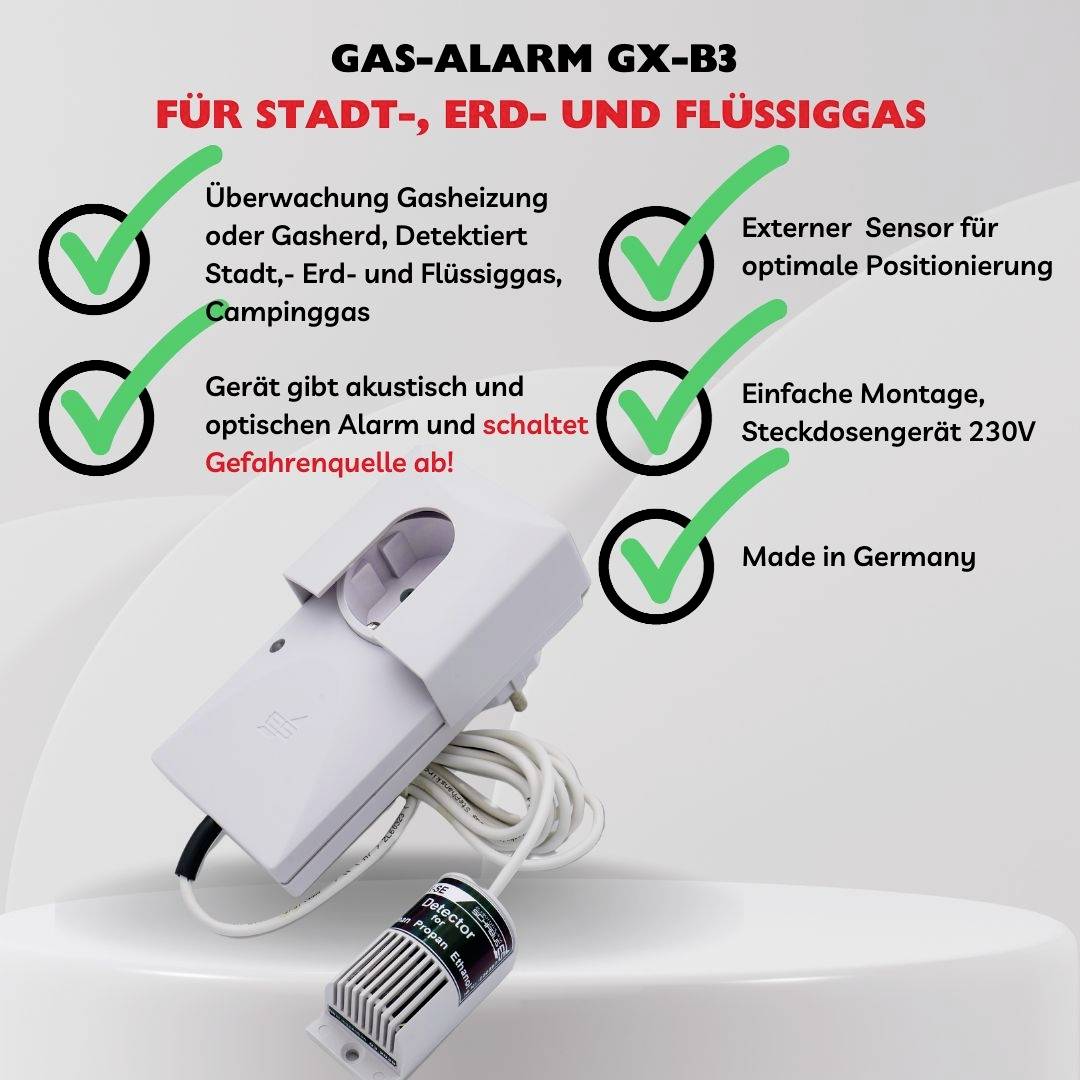

Schabus GX-B3, ext. Sensor SE Gas detector incl. external sensor mains-powered detects Propane, Methane, Butane, Ethanol
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 130.24 / piece)
€ 130.24
plus VAT.
Only 5 Piece(s) available
Highlights & Details
Gas alarm GX-B3 ext.Sensor SE
- Simple, within seconds installation
- Double safety by warning and automatic shut down of the device at gas outlet
- The external sensor makes possible an optimal assembly, in order to detect the corresponding gases
Technical specifications
- Maximum power: approx. 3 W
- Switching capacity: 2300 W/10A
- Sound pressure buzzer: 60 dB (10 cm distance)
- Product type
Gas detector
- Detector features
incl. external sensor
- Alarm at gas/gas mixture
Methane <0.5 %, propane <0.2 %, ethanol <0.5%
- detects
Propane
Methane
Butane
Ethanol
- Current consumption
6 mA
- Power supply (LOV)
mains-powered
- Width
57 mm
- Height
121 mm
- Depth
38 mm
- Weight
250 g
- Content
1 pc(s)
- Dim
(W x H x D) 57 x 121 x 38 mm
- Operating voltage
230 VAC/50 - 60 Hz
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 752041 Schabus GX-B3, ext. Sensor SE Gas detector incl. external sensor mains-powered detects Propane, Methane, Butane, Ethanol
User & Safety Instructions
User & Safety Instructions 752041 Schabus GX-B3, ext. Sensor SE Gas detector incl. external sensor mains-powered detects Propane, Methane, Butane, Ethanol
Description
The gas detector with an external sensor detects city - earth, (methane) and LPG-gases (propane / butane) and is therefore an essential safety feature in almost every household! In case of a alarm, the connected equipment will be turned off and also an audible and visual signal will be issued. The proposed system already recognizes at a concentration of gas or smoke, which is far below a dangerous value for you.
Scope of delivery
- 1 warning device GX-B3
- Fixing material (screw, 5 mm raw plug)
- User manual.
